Product Overview

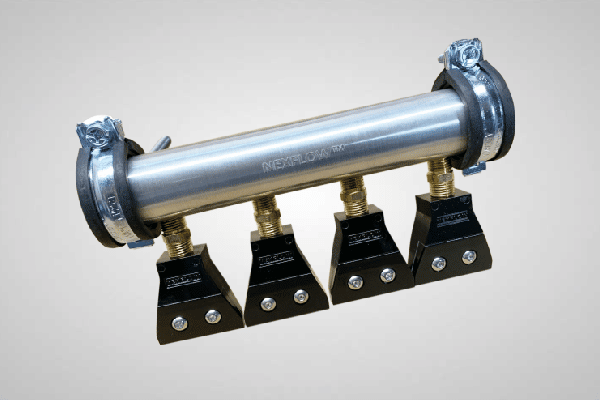

X-Stream® Manifold Systems are heavy duty manifold systems that allow for the Nex Flow® Air Edgers® or Standard Air Nozzles or Air Mag® Nozzles to be mounted in combinations of two, four, six, eight ad and 12 items for blow off and cooling applications where air knives may not be applicable and when a set length of blow-off is required. These systems are available in aluminum and stainless steel, and provided with any of the air nozzles, and in particular the Air Edger® flat jet nozzle, it creates a more powerful air knife effect when regular air knives are not powerful enough.
The first step is to investigate whether or not extra force is required, because it also can mean additional air consumption. Simply check the force and air consumption as described for each air knife. If not adequate for the particular application, then you look at the alternatives:
Manifold with:
Standard Air Nozzles – used where cooling is the main goal and flow is most important
Air Mag® Nozzles – used when force is most important
Air Edger® Flat Nozzles – used when the air knife effect is required but with much higher force.
Another consideration is the specific application. For example, if there is a risk of the blow off piece being damaged, it is sometimes better to use a manifold with several lesser cost prices verses one more costly air knife. So if one or two pieces are damaged, it is easier to replace. Another example is the requirement for variable force or flow. A row of adjustable nozzles can be placed on a manifold and set for different flow rates across the manifold.
Special sizes and shapes of manifolds are also available upon request. Mounting holes are provided on the manifolds for ease of use.
Applications
- Part Cleaning
- Chip removal
- Part drying
- Part cooling
Features / Advantages
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Improved production
Videos
[/single_tab][single_tab title=”Specs” tab_id=”1535344029946-4-3″]Specifications
Part Number | Description |
---|---|
X46002A | Two outlet Aluminum Anodized Manifold – total flow to 200 SCFM @ 80 PSIG |
X46004A | Four outlet Aluminum Anodized Manifold – total flow to 300 SCFM @ 80 PSIG |
X46006A | Six outlet Aluminum Anodized Manifold – total flow to 400 SCFM @ 80 PSIG |
X46008A | Eight outlet Aluminum Anodized Manifold – total flow to 500 SCFM @ 80 PSIG |
X46012A | Twelve outlet Aluminum Anodized Manifold – total flow to 600 SCFM @ 80 PSIG |
Part Number | Description |
---|---|
X46002S | Two outlet Stainless Steel Manifold – total flow to 200 SCFM @ 80 PSIG |
X46004S | Four outlet Stainless Steel Manifold – total flow to 300 SCFM @ 80 PSIG |
X46006S | Six outlet Stainless Steel Manifold – total flow to 400 SCFM @ 80 PSIG |
X46008S | Eight outlet Stainless Steel Manifold – total flow to 500 SCFM @ 80 PSIG |
X46012S | Twelve outlet Stainless Steel Manifold – total flow to 600 SCFM @ 80 PSIG |
NOTE: Using one air inlet allows for 50% of rated flow – using both end air inlets allows for up to 100% of rated flow.

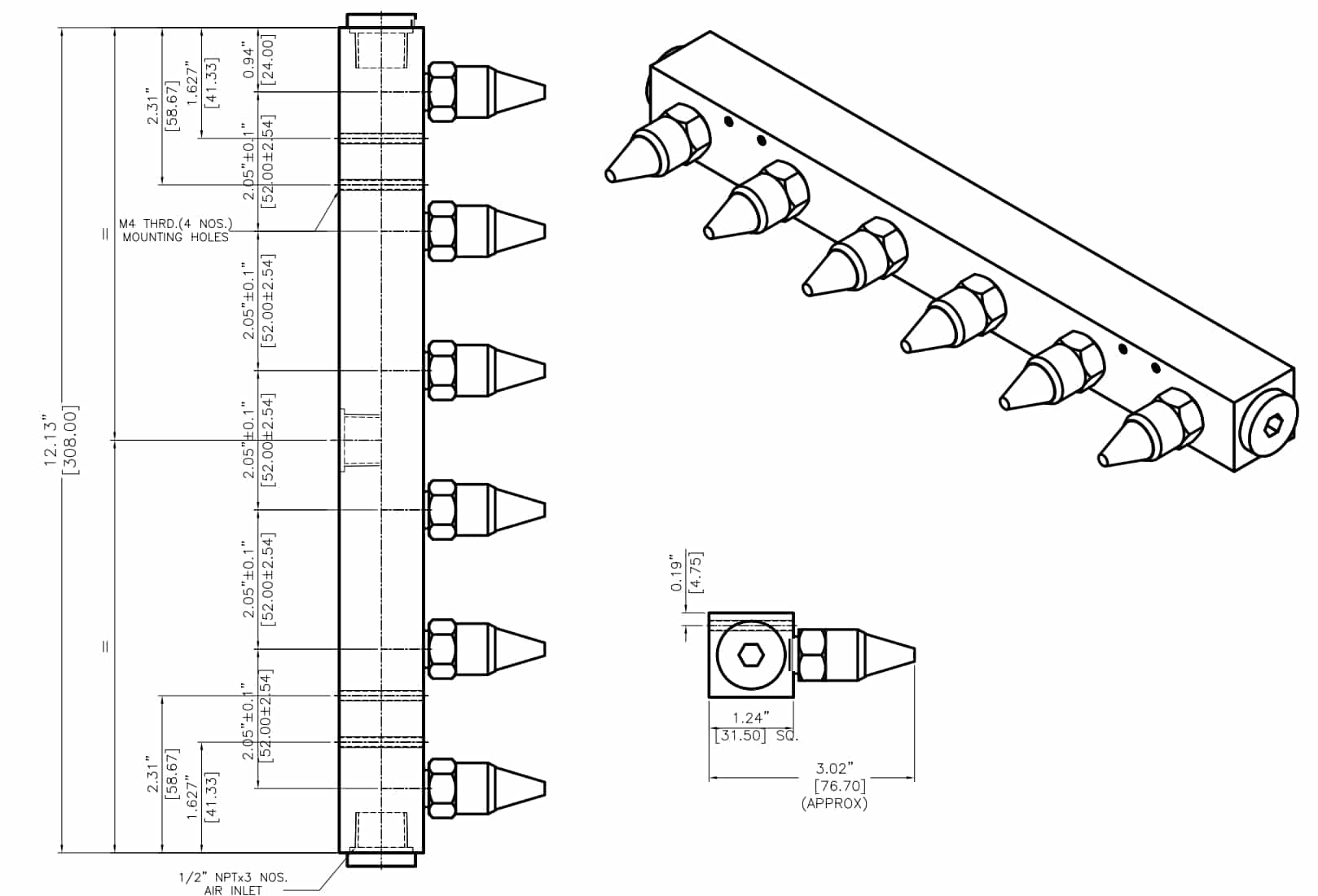

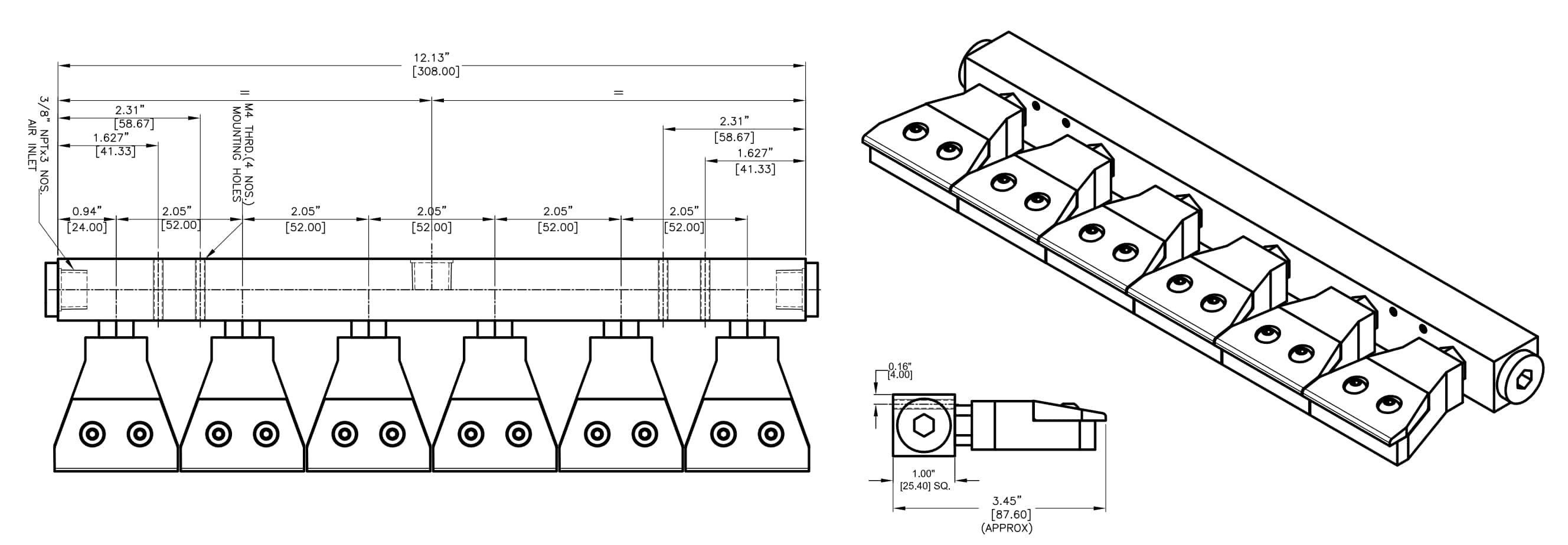

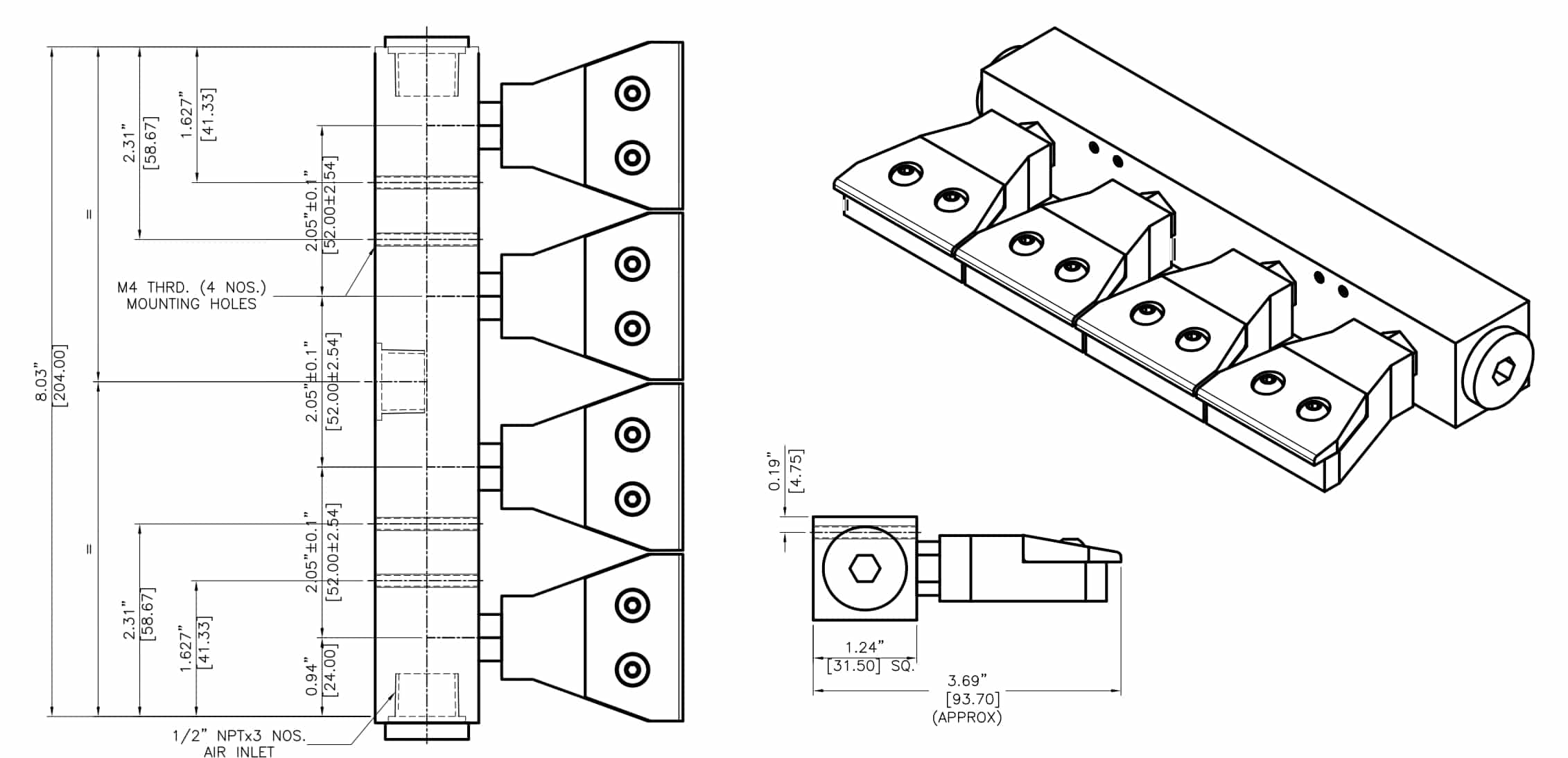

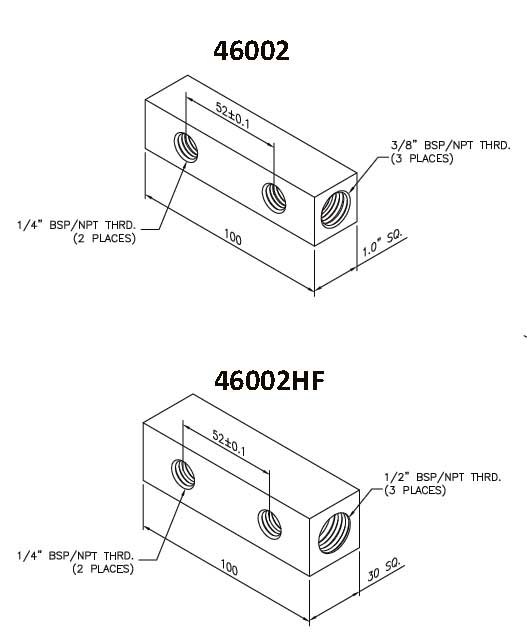

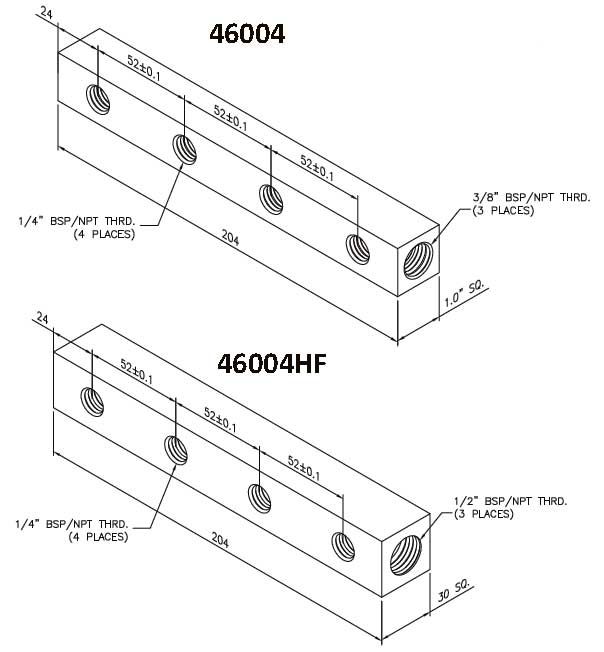

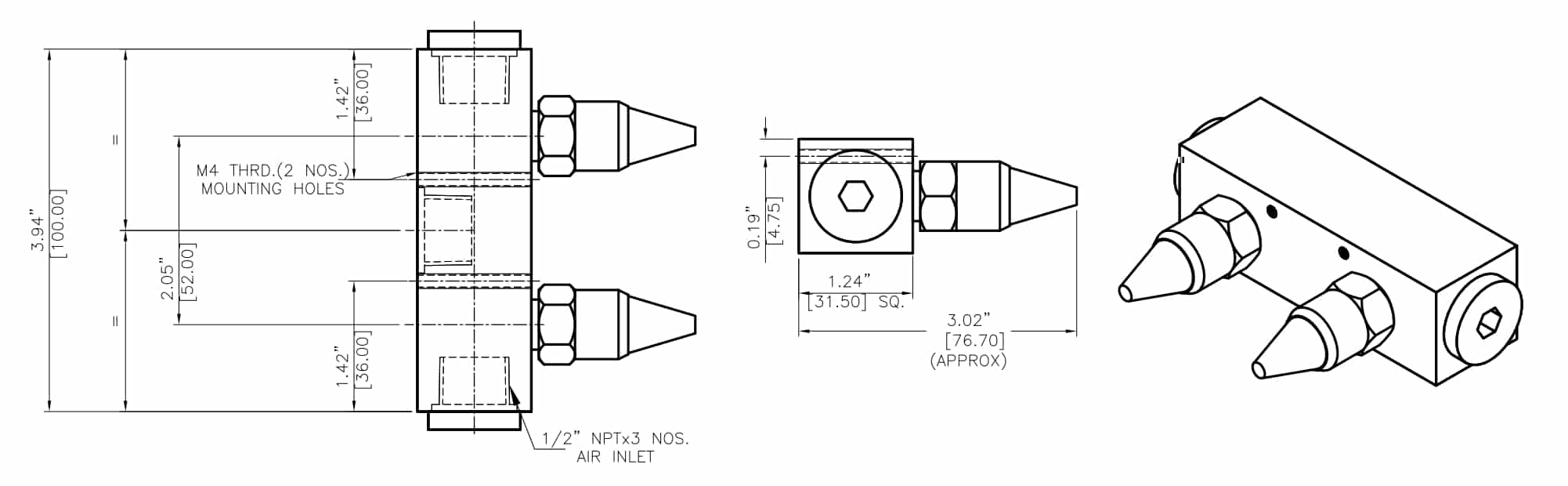

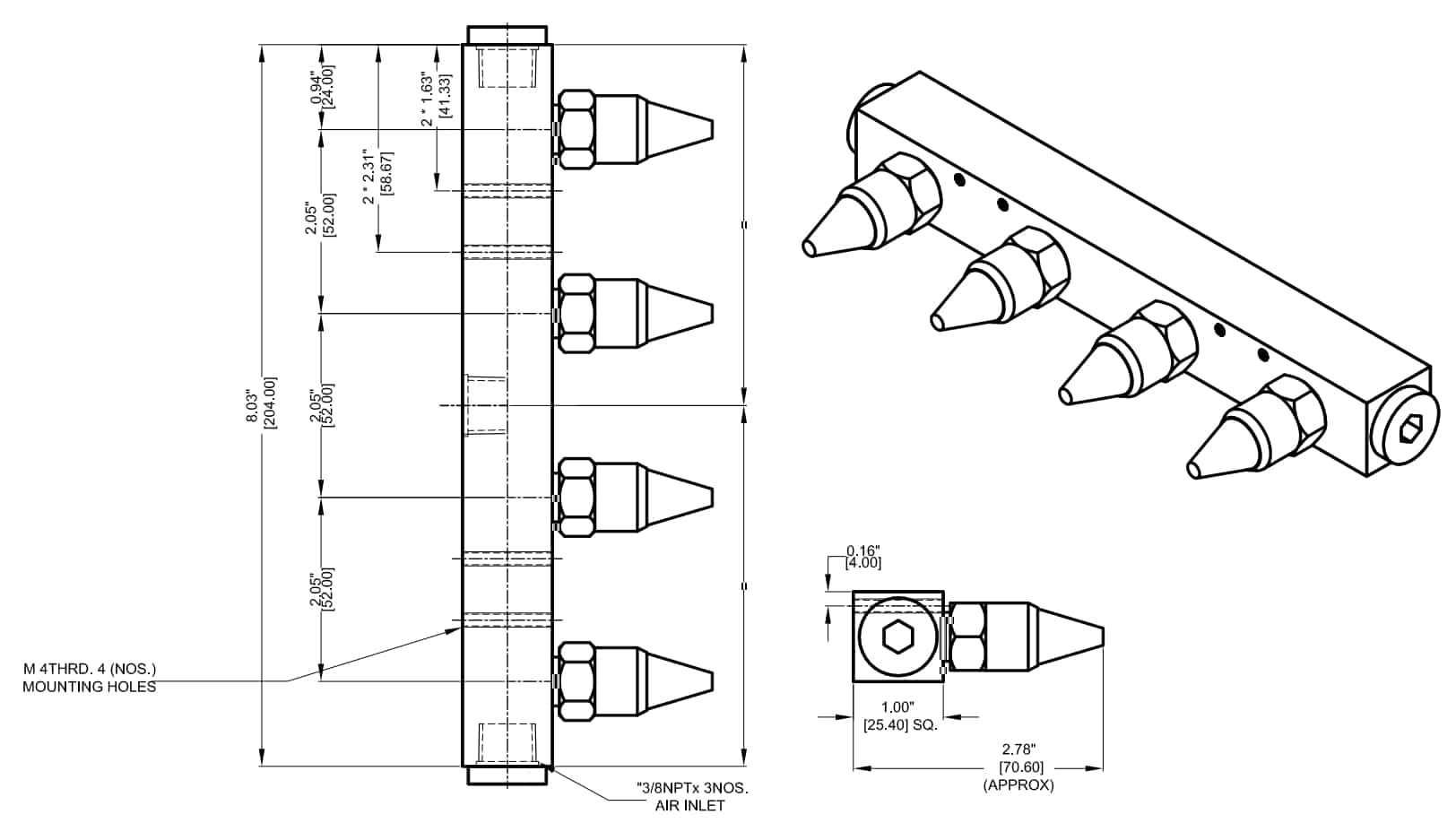

Dimensions

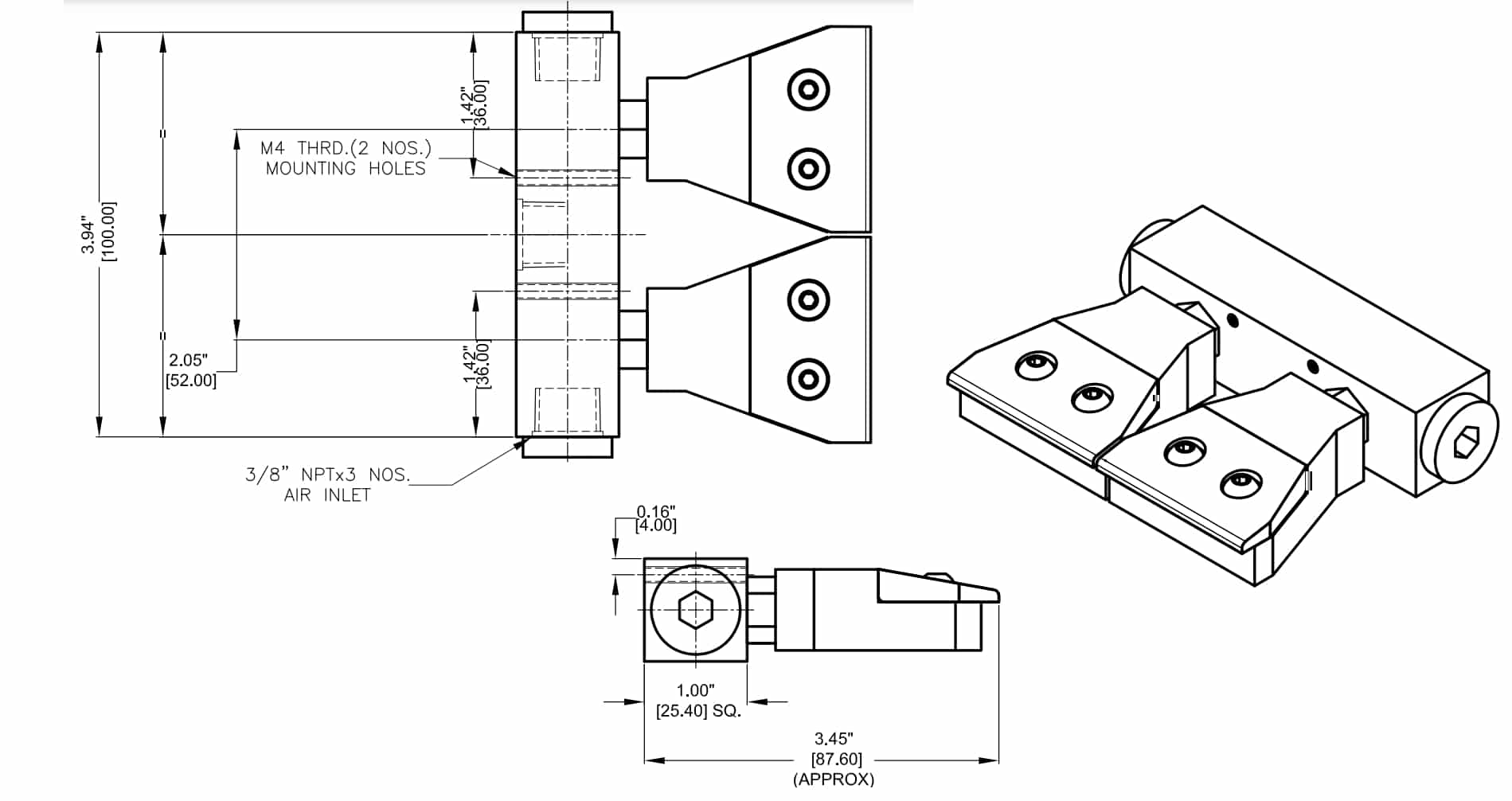

46002+47011

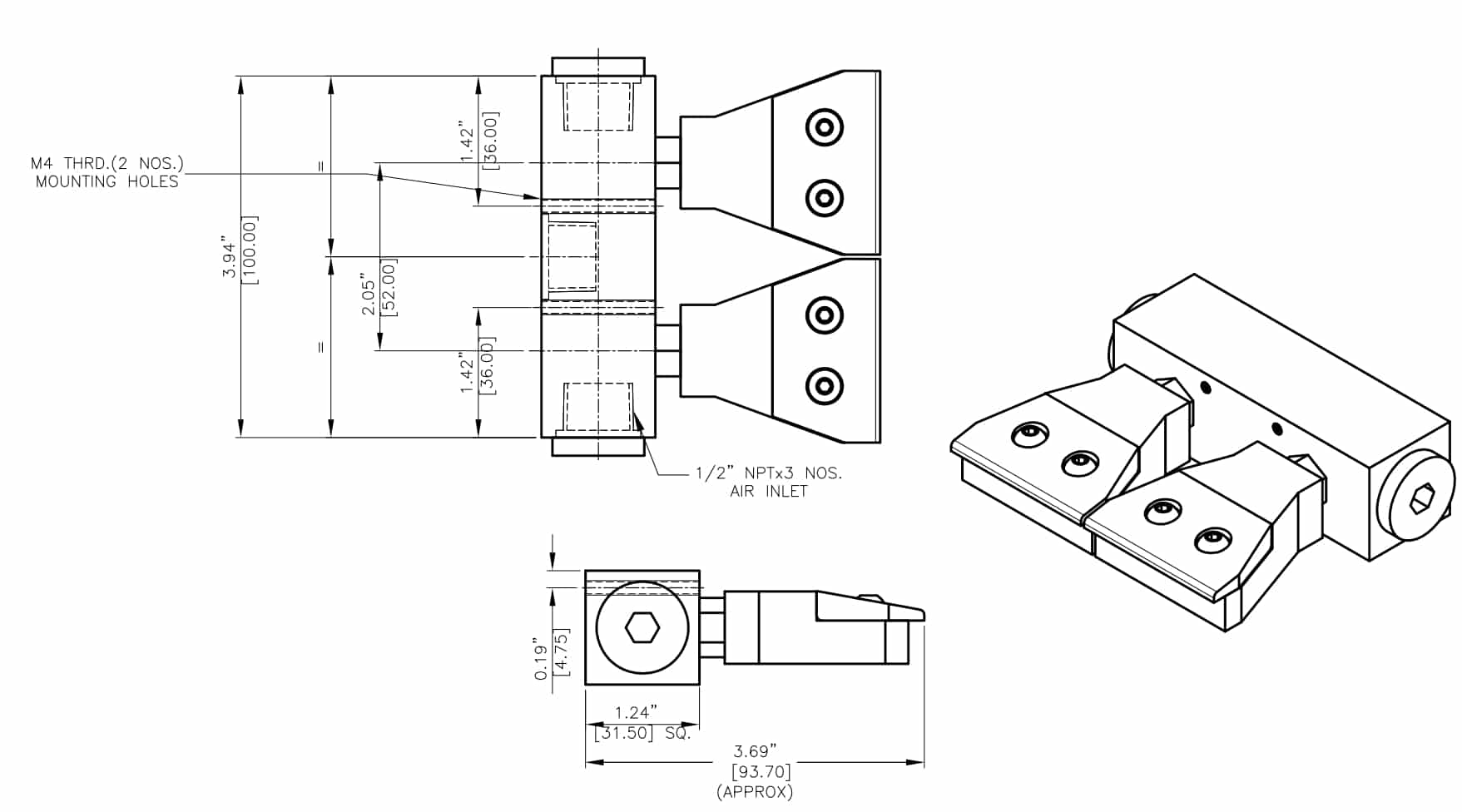

46002HF+47011

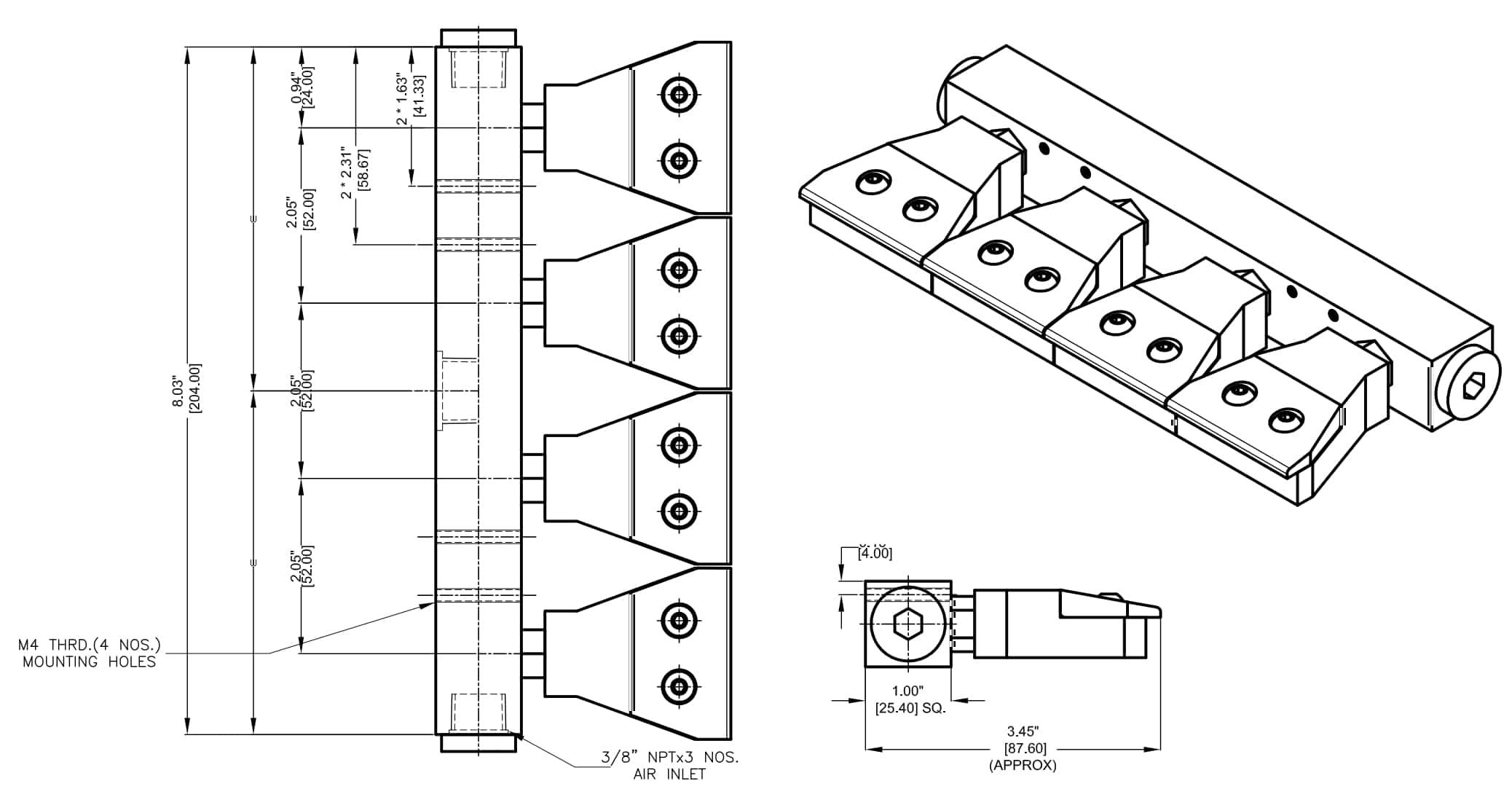

46004+47011

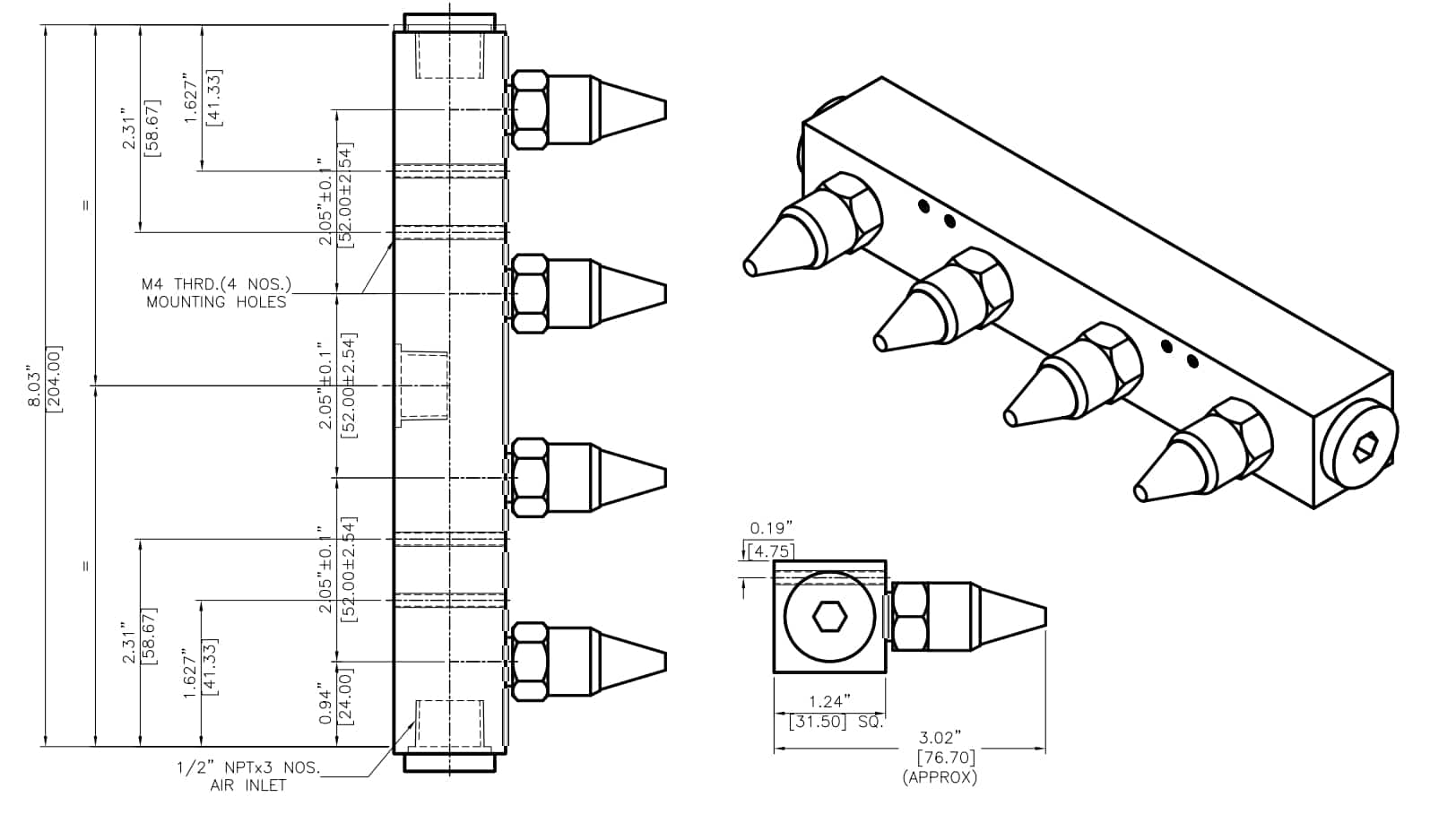

46004HF+47011

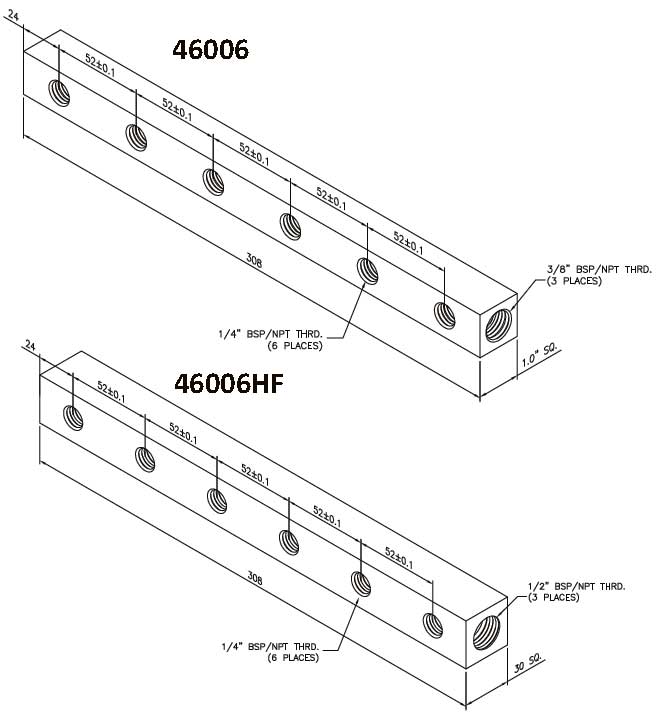

46006+47011
46006HF+47011

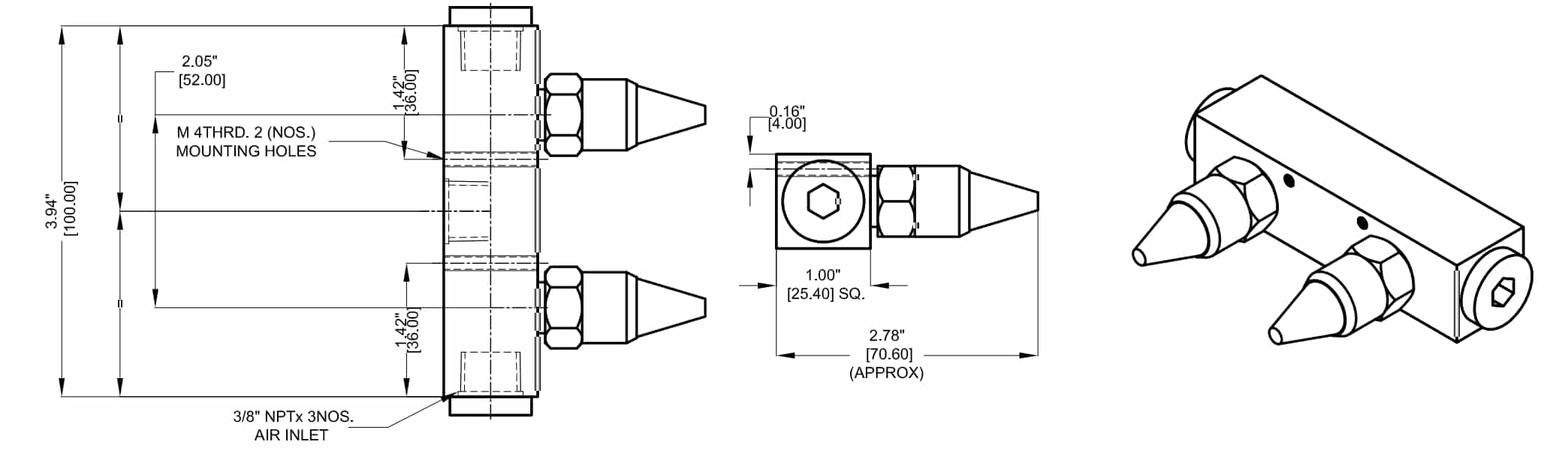

46002+47004
46002HF+47004
46004+47004
46004HF+47004

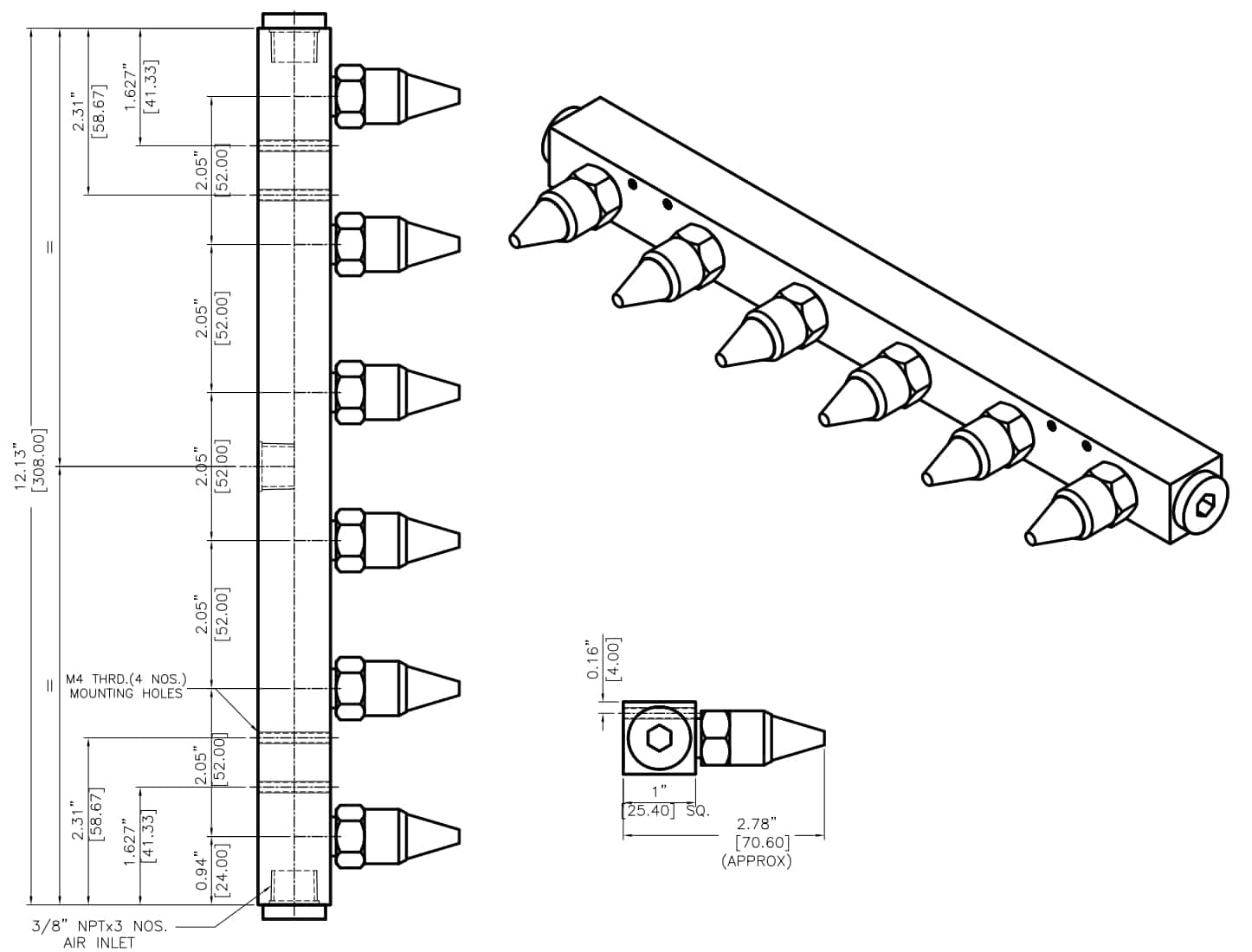

46006+47004
46006HF+47004
X-stream® Manifolds | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
X46002A | 5" long Two outlet Aluminum Anodized Manifold - All Flows c/w clamp system | - | $300.00 |
X46004A | 9" long Four outlet Aluminum Anodized Manifold - All Flows c/w clamp system | - | $400.00 |
X46006A | 13" Six outlet Aluminum Anodized Manifold - All Flows c/w clamp system | - | $460.00 |
X46008A | 19" long Eight outlet Aluminum Anodized Manifold - All Flows c/w clamp system | - | $510.00 |
X46012A | 25" long Twelve outlet Aluminum Anodized Manifold - All Flows c/w clamp system | - | $540.00 |
X46002S | 5" long Two outlet Stainless Steel Manifold - All Flows c/w clamp system | - | $600.00 |
X46004S | 9" long Four outlet Stainless Steel Manidolf - All Flows c/w clamp system | - | $700.00 |
X46006S | 13" long Six outlet Stainless Steel Manifold - All Flows c/w clamp system | - | $770.00 |
X46008S | 19" long Eight outlet Stainless Steel Manifold - All Flows c/w clamp system | - | $950.00 |
X46012S | 25" long Twelve outllet Stainless Steel Manifold - All Flows c/w clamp system | - | $1,500.00 |
4600NB | 1/4" male-male brass or chrome nipples for aluminum manifolds | - | $6.00 |
4600NS | 1/4" male-male stainless steel nipples for stainless stell manifolds | - | $15.00 |
More Information or Buy Here |
X-Stream® Manifold Mounted Systems | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
X46002A-47011-4 | Two outlet Al. Anodized X-Stream Manifold System + 47011-4 pre- mounted | - | $483.00 |
X46002A-47011-8 | Two outlet Al. Anodized X-Stream Manifold System + 47011-8 pre- mounted | - | $483.00 |
X46002A-47011-12 | Two outlet Al. Anodized X-Stream Manifold System + 47011-12 pre- mounted | - | $483.00 |
X46002A-47011-16 | Two outlet Al. Anodized X-Stream Manifold System + 47011-16 pre- mounted | - | $483.00 |
X46002A-47011-20 | Two outlet Al. Anodized X-Stream Manifold System + 47011-20 pre- mounted | - | $483.00 |
X46002A-47011-24 | Two outlet Al. Anodized X-Stream Manifold System + 47011-24 pre- mounted | - | $483.00 |
X46002A-47011-28 | Two outlet Al. Anodized X-Stream Manifold System + 47011-28 pre- mounted | - | $483.00 |
X46004A-47011-4 | Four outlet Al. Anodized X-Stream Manifold System + 47011-4 pre- mounted | - | $746.00 |
X46004A-47011-8 | Four outlet Al. Anodized X-Stream Manifold System + 47011-8 pre- mounted | - | $746.00 |
X46004A-47011-12 | Four outlet Al. Anodized X-Stream Manifold System + 47011-12 pre- mounted | - | $746.00 |
X46004A-47011-16 | Four outlet Al. Anodized X-Stream Manifold System + 47011-16 pre- mounted | - | $746.00 |
X46004A-47011-20 | Four outlet Al. Anodized X-Stream Manifold System + 47011-20 pre- mounted | - | $746.00 |
X46004A-47011-24 | Four outlet Al. Anodized X-Stream Manifold System + 47011-24 pre- mounted | - | $746.00 |
X46004A-47011-28 | Four outlet Al. Anodized X-Stream Manifold System + 47011-28 pre- mounted | - | $746.00 |
X46006A-47011-4 | Six outlet Al. Anodized X-Stream Manifold System + 47011-4 pre- mounted | - | $969.00 |
X46006A-47011-8 | Six outlet Al. Anodized X-Stream Manifold System + 47011-8 pre- mounted | - | $969.00 |
X46006A-47011-12 | Six outlet Al. Anodized X-Stream Manifold System + 47011-12 pre- mounted | - | $969.00 |
X46006A-47011-16 | Six outlet Al. Anodized X-Stream Manifold System + 47011-16 pre- mounted | - | $969.00 |
X46006A-47011-20 | Six outlet Al. Anodized X-Stream Manifold System + 47011-20 pre- mounted | - | $969.00 |
X46006A-47011-24 | Six outlet Al. Anodized X-Stream Manifold System + 47011-24 pre- mounted | - | $969.00 |
X46006A-47011-28 | Six outlet Al. Anodized X-Stream Manifold System + 47011-28 pre- mounted | - | $969.00 |
X46008A-47011-4 | Eight outlet Al. Anodized X-Stream Manifold System + 47011-4 pre- mounted | - | $1,182.00 |
X46008A-47011-8 | Eight outlet Al. Anodized X-Stream Manifold System + 47011-8 pre- mounted | - | $1,182.00 |
X46008A-47011-12 | Eight outlet Al. Anodized X-Stream Manifold System + 47011-12 pre- mounted | - | $1,182.00 |
X46008A-47011-16 | Eight outlet Al. Anodized X-Stream Manifold System + 47011-16 pre- mounted | - | $1,182.00 |
X46008A-47011-20 | Eight outlet Al. Anodized X-Stream Manifold System + 47011-20 pre- mounted | - | $1,182.00 |
X46008A-47011-24 | Eight outlet Al. Anodized X-Stream Manifold System + 47011-24 pre- mounted | - | $1,182.00 |
X46008A-47011-28 | Eight outlet Al. Anodized X-Stream Manifold System + 47011-28 pre- mounted | - | $1,182.00 |
X46012A-47011-4 | Twelve outlet Al. Anodized X-Stream Manifold System + 47011-4 pre- mounted | - | $1,548.00 |
X46012A-47011-8 | Twelve outlet Al. Anodized X-Stream Manifold System + 47011-8 pre- mounted | - | $1,548.00 |
X46012A-47011-12 | Twelve outlet Al. Anodized X-Stream Manifold System + 47011-12 pre- mounted | - | $1,548.00 |
X46012A-47011-16 | Twelve outlet Al. Anodized X-Stream Manifold System + 47011-16 pre- mounted | - | $1,548.00 |
X46012A-47011-20 | Twelve outlet Al. Anodized X-Stream Manifold System + 47011-20 pre- mounted | - | $1,548.00 |
X46012A-47011-24 | Twelve outlet Al. Anodized X-Stream Manifold System + 47011-24 pre- mounted | - | $1,548.00 |
X46012A-47011-28 | Twelve outlet Al. Anodized X-Stream Manifold System + 47011-28 pre- mounted | - | $1,548.00 |
X46002S-47011-4 | Two outlet SS X-Stream Manifold System + 47011S-316L-4 pre- mounted | - | $901.00 |
X46002S-47011-8 | Two outlet SS X-Stream Manifold System + 47011S-316L-8 pre- mounted | - | $901.00 |
X46002S-47011-12 | Two outlet SS X-Stream Manifold System + 47011S-316L-12 pre- mounted | - | $901.00 |
X46002S-47011-16 | Two outlet SS X-Stream Manifold System + 47011S-316L-16 pre- mounted | - | $901.00 |
X46002S-47011-20 | Two outlet SS X-Stream Manifold System + 47011S-316L-20 pre- mounted | - | $901.00 |
X46002S-47011-24 | Two outlet SS X-Stream Manifold System + 47011S-316L-24 pre- mounted | - | $901.00 |
X46002S-47011-28 | Two outlet SS X-Stream Manifold System + 47011S-316L-28 pre- mounted | - | $901.00 |
X46004S-47011-4 | Four outlet SS X-Stream Manifold System + 47011S-316L-4 pre- mounted | - | $1,282.00 |
X46004S-47011-8 | Four outlet SS X-Stream Manifold System + 47011S-316L-8 pre- mounted | - | $1,282.00 |
X46004S-47011-12 | Four outlet SS X-Stream Manifold System + 47011S-316L-12 pre- mounted | - | $1,282.00 |
X46004S-47011-16 | Four outlet SS X-Stream Manifold System + 47011S-316L-16 pre- mounted | - | $1,282.00 |
X46004S-47011-20 | Four outlet SS X-Stream Manifold System + 47011S-316L-20 pre- mounted | - | $1,282.00 |
X46004S-47011-24 | Four outlet SS X-Stream Manifold System + 47011S-316L-24 pre- mounted | - | $1,282.00 |
X46004S-47011-28 | Four outlet SS X-Stream Manifold System + 47011S-316L-28 pre- mounted | - | $1,282.00 |
X46006S-47011-4 | Six outlet SS X-Stream Manifold System + 47011S-316L-4 pre- mounted | - | $1,633.00 |
X46006S-47011-8 | Six outlet SS X-Stream Manifold System + 47011S-316L-8 pre- mounted | - | $1,633.00 |
X46006S-47011-12 | Six outlet SS X-Stream Manifold System + 47011S-316L-12 pre- mounted | - | $1,633.00 |
X46006S-47011-16 | Six outlet SS X-Stream Manifold System + 47011S-316L-16 pre- mounted | - | $1,633.00 |
X46006S-47011-20 | Six outlet SS X-Stream Manifold System + 47011S-316L-20 pre- mounted | - | $1,633.00 |
X46006S-47011-24 | Six outlet SS X-Stream Manifold System + 47011S-316L-24 pre- mounted | - | $1,633.00 |
X46006S-47011-28 | Six outlet SS X-Stream Manifold System + 47011S-316L-28 pre- mounted | - | $1,633.00 |
X46008S-47011-4 | Eight outlet SS X-Stream Manifold System + 47011S-316L-4 pre- mounted | - | $2,094.00 |
X46008S-47011-8 | Eight outlet SS X-Stream Manifold System + 47011S-316L-8 pre- mounted | - | $2,094.00 |
X46008S-47011-12 | Eight outlet SS X-Stream Manifold System + 47011S-316L-12 pre- mounted | - | $2,094.00 |
X46008S-47011-16 | Eight outlet SS X-Stream Manifold System + 47011S-316L-16 pre- mounted | - | $2,094.00 |
X46008S-47011-20 | Eight outlet SS X-Stream Manifold System + 47011S-316L-20 pre- mounted | - | $2,094.00 |
X46008S-47011-24 | Eight outlet SS X-Stream Manifold System + 47011S-316L-24 pre- mounted | - | $2,094.00 |
X46008S-47011-28 | Eight outlet SS X-Stream Manifold System + 47011S-316L-28 pre- mounted | - | $2,094.00 |
X46012S-47011-4 | Twelve outlet SS X-Stream Manifold System + 47011S-316L-4 pre- mounted | - | $3,216.00 |
X46012S-47011-8 | Twelve outlet SS X-Stream Manifold System + 47011S-316L-8 pre- mounted | - | $3,216.00 |
X46012S-47011-12 | Twelve outlet SS X-Stream Manifold System + 47011S-316L-12 pre- mounted | - | $3,216.00 |
X46012S-47011-16 | Twelve outlet SS X-Stream Manifold System + 47011S-316L-16 pre- mounted | - | $3,216.00 |
X46012S-47011-20 | Twelve outlet SS X-Stream Manifold System + 47011S-316L-20 pre- mounted | - | $3,216.00 |
X46012S-47011-24 | Twelve outlet SS X-Stream Manifold System + 47011S-316L-24 pre- mounted | - | $3,216.00 |
X46012S-47011-28 | Twelve outlet SS X-Stream Manifold System + 47011S-316L-28 pre- mounted | - | $3,216.00 |
X46002A-47004 | Two outlet X46002A X-Stream Manifold with two premounted 47004 | - | $385.00 |
X46004A-47004 | Four outlet X46004A X-Stream Manifold with four premounted 47004 | - | $550.00 |
X46006A-47004 | Six outlet X46006A X-Stream Manifold with six premounted 47004 | - | $675.00 |
X46008A-47004 | Eight outlet X46006A X-Stream Manifold with eight premounted 47004 | - | $790.00 |
X46012A-47004 | Twelve outlet X46006A X-Stream Manifold with twelve premounted 47004 | - | $950.00 |
X46002S-47004S | Two outlet X46002S Manifold with two premounted 47004S | - | $741.00 |
X46004S-47004S | Four outlet X46004S Manifold with four premounted 47004S | - | $962.00 |
X46006S-47004S | Six outlet X46006S Manifold with six premounted 47004S | $1,153.00 | |
X46008S-47004S | Eight outlet X46008S Manifold with eight premounted 47004S | - | $1,454.00 |
X46012S-47004S | Twelve outlet X46008S Manifold with twelve premounted 47004S | - | $2,246.00 |
X46002S-47004S-316L | Two outlet X46002S Manifold with two premounted 47004S-316L | - | $799.00 |
X46004S-47004S-316L | Four outlet X46004S Manifold with four premounted 47004S-316L | - | $1,078.00 |
X46006S-47004S-316L | Six outlet X46006S Manifold with six premounted 47004S-316L | - | $1,327.00 |
X46008S-47004S-316L | Eight outlet X46006S Manifold with eight premounted 47004S-316L | - | $1,686.00 |
X46012S-47004S-316L | Twelve outlet X46006S Manifold with twelve premounted 47004S-316L | - | $2,594.00 |
X46002A-47004AMF | Two oulet X46002A Manifold with two premounted 47004AMF | - | $425.00 |
X46004A-47004AMF | Four oulet X46004A Manifold with four premounted 47004AMF | - | $630.00 |
X46006A-47004AMF | Six oulet X46006A Manifold with six premounted 47004AMF | - | $795.00 |
X46008A-47004AMF | Eight oulet X46006A Manifold with eight premounted 47004AMF | - | $950.00 |
X46012A-47004AMF | Twelve oulet X46006A Manifold with twelve premounted 47004AMF | - | $1,190.00 |
X46002S-47004AMFS | Two outlet X46002S Manifold with two premounted 47004AMFS | - | $853.00 |
X46004S-47004AMFS | Four outlet X46004S Manifold with four premounted 47004AMFS | - | $1,186.00 |
X46006S-47004AMFS | Six outlet X46006S Manifold with six premounted 47004AMFS | - | $1,489.00 |
X46008S-47004AMFS | Eight outlet X46006S Manifold with eight premounted 47004AMFS | - | $1,902.00 |
X46012S-47004AMFS | Twelve outlet X46006S Manifold with twelvepremounted 47004AMFS | - | $2,918.00 |
More Information or Buy Here |
Spare Part for X-Stream® Mounting Systems | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
XMAN00A | SPARE ALUMINUM CLAMP FOR X-STREAM MOUNTING SYSTEMS | - | $30.00 |
XMAN00S | SPARE STAINLESS STEEL CLAMP FOR X-STREAM MOUNTING SYSTEMS | - | $60.00 |
More Information or Buy Here |
Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA
Richmond Hill, ON, Canada for international orders.
