Product Overview

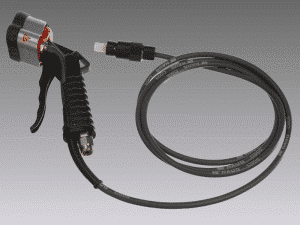

Ionizing Air Gun Model LG

The LG “Light-weight Gun”

The easy to handle and lightweight High Voltage LG ionizing air gun is a peerless innovation in the field of elimination of dust and charges. Heavy-duty users and others will appreciate that it weighs only 480 grams (before air hose and HV cable).

Function

This product is based on the neutralization of “spot charges” by means of bipolar ions.

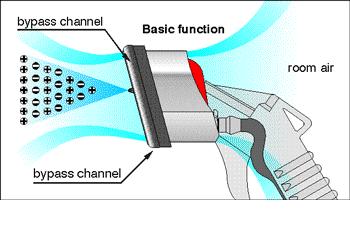

The head of the device is enclosed by a sheet material shield, which serves both as mechanical protection and a counter-electrode. Due to the special shape of this shield, bypass channels are created, which assist an efficient six-channel blowing nozzle by stabilizing the airflow. The airflow can be adjusted exactly in accordance to the application – particularly useful for the treatment of small pieces. A power pack provides the required voltage.

Application Ion Air Gun

Applications

The LG is an indispensable production aid for film processing, electronic manufacture, and precision mechanics. This device has also proven to be very reliable and efficient for the manufacture of measuring devices and control gears, for pcb assembly as well as for screen and pad printing and other printing procedures.

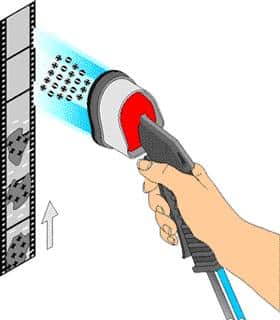

Application2 Ion Air Gun

Cleaning and Maintenance

Regular and careful cleaning will ensure a long service life and constant efficiency.

[/single_tab][single_tab title=”Advantages” tab_id=”1494819298332-3-5″]

Features / Advantages

  • Operating facility: The LG Gun consists of few individual modules, each of which is exchangeable. The high-voltage cable can be extended, shortened or exchanged.
  • Ergonomics: Modern industrial design – well-thought-out down to the last detail. This device can be used conveniently and efficiently by left and right handers.
  • Ecology – economy: The utilization of the intake air through bypass channels
  • Lightweight and quiet: The LG creates remarkably little noise and its low weight makes it easy to handle – 480 grams before air hose and HV cable
[/single_tab][single_tab title=”Information” tab_id=”1495127961040-7-8″]

Information

When the situation calls for a hand held static elimination device the ideal product is an Ionizing Air Gun. Important features should be ergonometric design, weight, and flexibility. The cable should be fully shielded especially with anti-static guns to have adequate life expectancy.

The unique design of the High Voltage Ion Gun consists of specific parts so that they can actually be repaired by replacing the damaged parts, either by returning to Nex Flow or ordering the part and repairing it in the field. Due to the often rough handling ion guns receive in an industrial environment , the High Voltage Ion Gun is an ideal choice compared to  inferior and low quality, unrepairable products. It comes with a fully shielded and flexible cable and a  patented safety connector ensuring the ultimate  safety and quality in the field.

Special Notes

High Voltage static bars all come with a patented connector to ensure safety in operation and maintenance. Field repairable, it prevents a connection if the static bar is removed or attached while power is still on at the power supply.

The cable is FULLY SHIELDED unlike some manufacturers that claim shielding which may only be partial. This results in much longer life for High Voltage products.

REPAIRABLE POWER SUPPLIES – almost unheard of in the industry, High Voltage power supplies are repairable and come with a 2 year warranty.

[/single_tab][single_tab title=”Performance” tab_id=”1494820475220-4-7″]

Performance

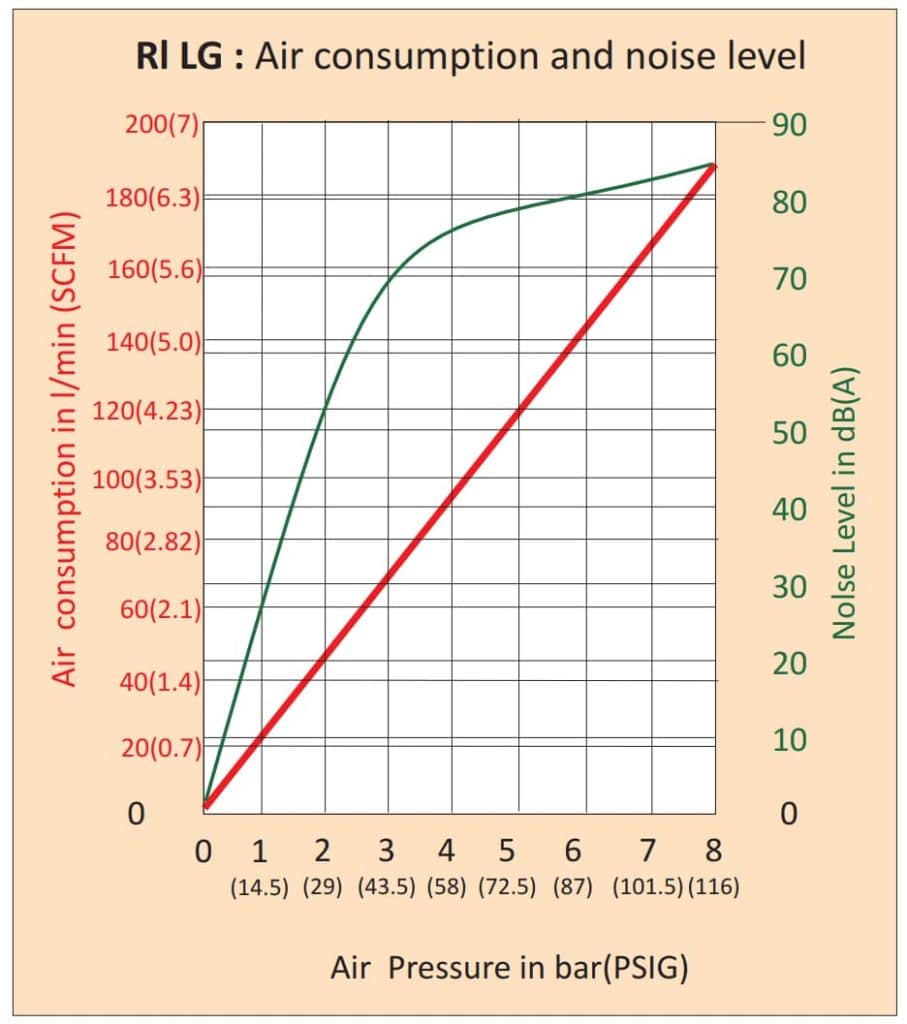

Performance Chart for Ion Air Gun
[/single_tab][single_tab title=”Dimensions” tab_id=”1494821250732-5-4″]

Dimensions

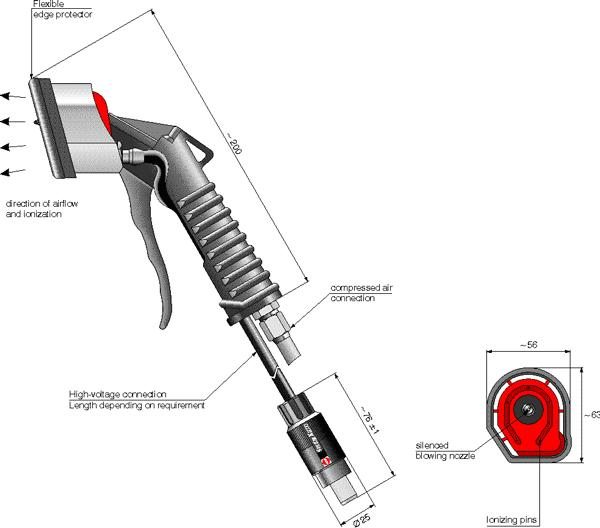

Ion air gun dimension
