Product Overview

A Low Cost but powerful static eliminator that rapidly removes static charge and cleans.

The Ion Air Knives are useful for most applications including ones involving very high static charges and extremely high speeds. Both ionizers produce a powerful force.

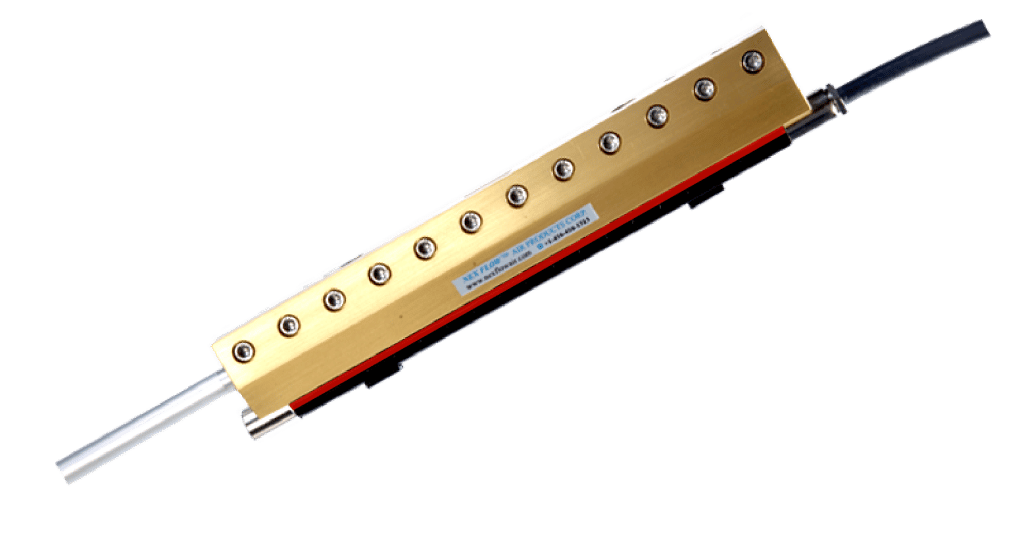

Standard Air Blade® Ionizer

The Standard Air-Blade® Ionizer combines the superior designed Standard Air-Blade® Air Knife with a quality static bar made by Haug, a world leading static control manufacturer. Charges can be eliminated quickly, even over large distances and surface area.

Click for more detail

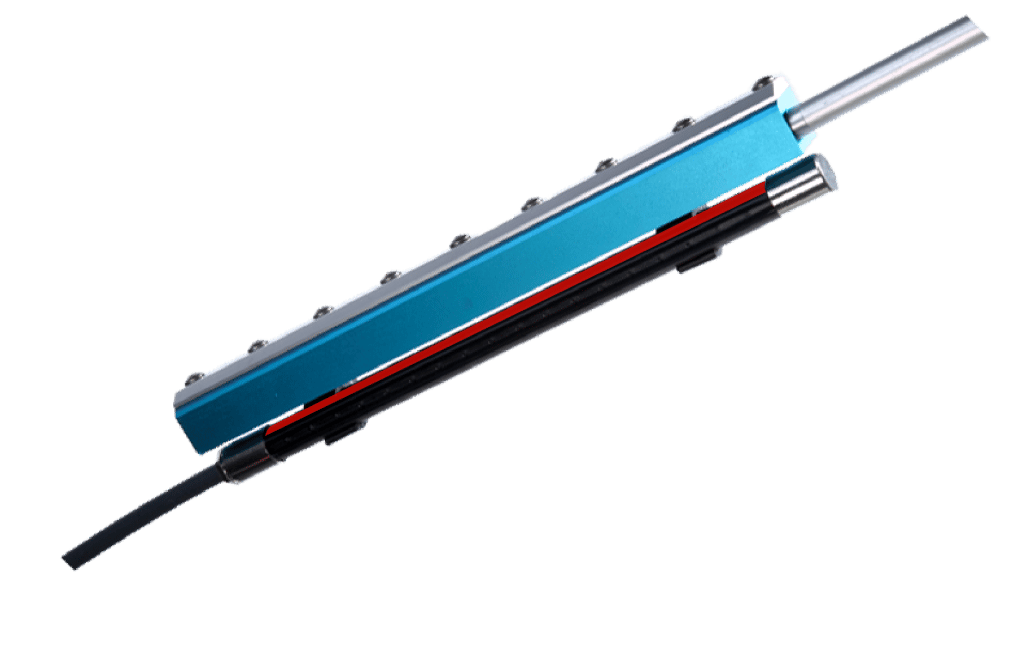

Silent X-Stream® Air Blade® Ionizer

The Silent X-Stream® Air-Blade® air knife provides increased efficiency and very low noise levels compared to the Standard Air Blade® air knife. Both units utilize the quality Haug static bars – the RN bar for most applications or the extra strong VS bars (Triple X versions) for very high static charges and extremely high speeds.

Click for more detail

Features / Advantages

  • Connections on the back or ends
  • It flows from end to end (full flow).
  • Stainless steel models are available for high temperature and corrosive models.
  • Models are designed for easy cleaning and prevention of dirt entering the static bar, minimizing potential damage.
  • Patented connectors with the ground intrinsic to the cable design.
  • Instant ON/OFF with no moving parts.
  • Repairable Power Supply with a two year warranty.
  • Flexible mounting options.
  • Units can be mounted end to end for longer lengths with no air gap.
  • High temperature, extra strength, and even a unique washable stainless steel model is available for special applications or as required.
  • Ease of cleaning and maintenance.
  • No separate ground connection that can be cut and cause sparks or accidentally shock personnel.
  • Conserves air use when not required.
  • Eliminates one costly area which is power supply replacement. 2 year warranty assure quality product.

Videos

How The Standard Air Blade® Ionizer Works

Compressed air enters at the rear (or end) ports at (A) (B). Air then follows the Coanda profile of the air knife and along the front face flowing over the ionizing (static) bar (C) creating a fine sheet of ionized air along the entire length of the ionizer as it leaves the air knife at point (D). The amplified air stream maximizes velocity and force and provides a well-defined sheet of ionized laminar flow for reduced energy use in the blow off of statically charged surfaces and to remove static at long distances from the assembly. For highly charged surfaces a stronger static bar is available (Triple X Air Blade ionizers).

How The Silent X-Stream® Air-Blade® Ionizer Works

Compressed air enters at the rear (or end) ports at (A) (B). Air then follows the Coanda profile of the air knife and along the front face flowing over the ionizing (static) bar (C) creating a fine sheet of ionized air along the entire length of the Air Blade® ionizer as it leaves the air knife at point (D). The amplified air stream maximizes velocity and force and provides a well-defined sheet of ionized laminar flow for reduced energy use in the blow off of statically charged surfaces and to remove static at long distances from the assembly. For highly charged surfaces a stronger static bar is available (Triple X Air Blade ionizers).

Power Supplies

Static Elimination Air-Blade® Ionizer power supplies are available in various models including a unit that will monitor the static bars for effectiveness.

Voltage Model Number Description
110V 80111 Two outlet (Can connect two static bars)
220V 80112 Two outlet (Can connect two static bars)
110V 80121 Four outlet (Can connect four static bars)
220V 80122 Four outlet (Can connect four static bars)
110V 80221 Four outlet (Can connect four static bars, plus monitors performance. Can be connected into a system alarm or indicating light.)
220V 80222 Four outlet (Can connect four static bars, plus monitors performance. Can be connected into a system alarm or indicating light.)
110V 80321 Two outlet (Can connect two static bars)
220V 80322 Two outlet (Can connect two static bars)
110V 80421 Two outlet (Can connect two static bars)
220V 80422 Two outlet (Can connect two static bars)
110V 80521 Two outlet (Can connect two static bars)
220V 80522 Two outlet (Can connect two static bars)

Specifications

Static Elimination Air-Blade® Ionizers are supplied in several versions.

Standard Air-Blade® Ionizer comes with a standard strength Model RN Haug static bar is ideal for most static removal applications.

X-Stream Air-Blade® Ionizer with the extra quiet Nex Flow X-Stream Air Blade® and standard Strength Model RN Haug static bar. These units apply to most static removal applications where noise levels must be extremely low.

Super Triple Standard Air-Blade® Ionizer with a standard Nex Flow Air Knife and a triple strength Model VS Haug static bar is ideal for static removal applications where static charges are unusually high and extra ionization is required such as very high speed applications or materials that can produce very high charges like Mylar or tissue.

Super Triple X-Stream Air-Blade® Ionizer with extra quiet Nex Flow X-Stream Air Blade® Air Knife and a triple strength Mode VS Haug static bar. These units are ideal for static removal applications where static charges are unusually high,so extra ionization is required and where noise issues are important.

Special materials and static bars can be utilized for unique applications. If greater blow-off force is required, shims may be added to the Air-Blade® Ionizer for higher capacities.

Dimensions

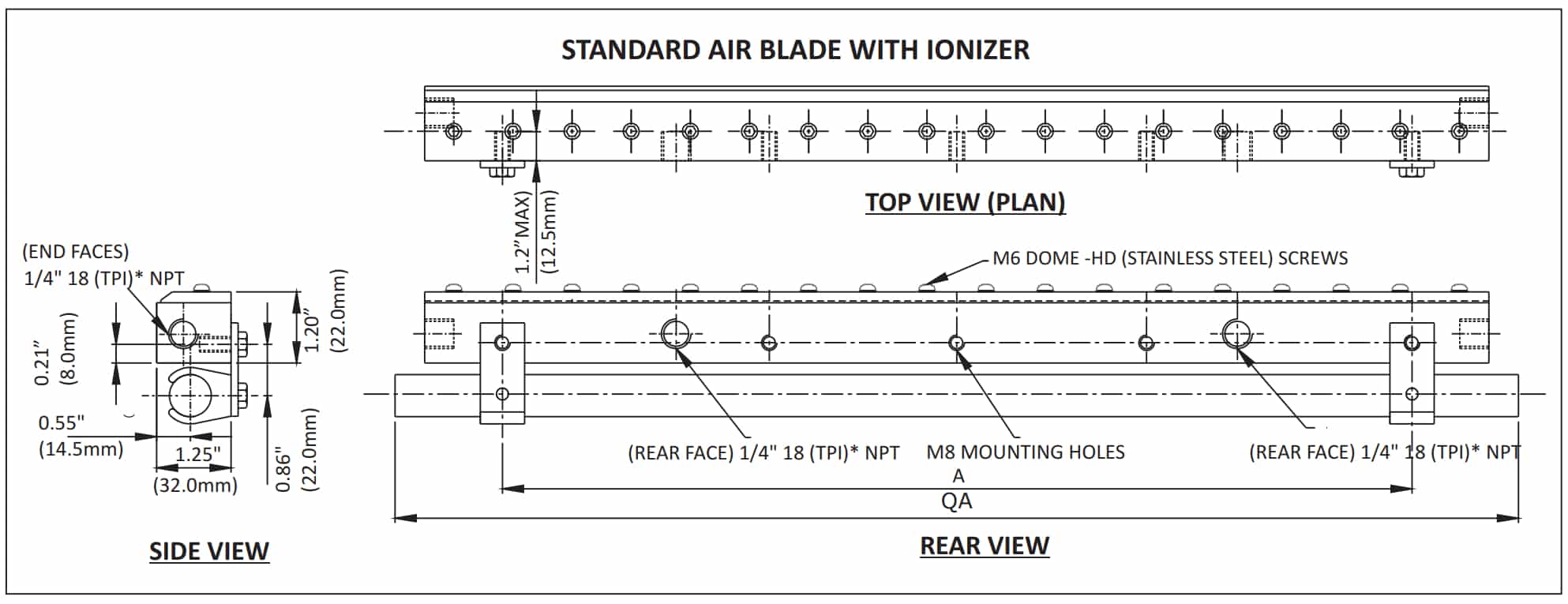

standard ion air knives dimension
MODEL SIZES A QA
15003/16003 3″ (76mm) 44mm 125mm
15006/16006 6″ (150mm) 90mm 200mm
15008/16008 8″ (203mm) 143mm 254mm
15012/16012 12″ (305mm) 250mm 351mm
15018/16018 18″ (457mm) 390mm 508mm
15024/16024 24″ (610mm) 543mm 661mm
15036/16036 36″ (914mm) 844mm 965mm
15042/16042 42″ (1,067mm) 1,000mm 1,092mm
15048/16048 48″ (1,219mm) 1,152mm 1,245mm
15054/16054 54″ (1,372mm) 1,310mm 1,397mm
silent x stream ion air knives dimension
MODEL AA Inches (mm) A Inches (mm) B Inches (mm) C Inches (mm)
15003X/16003X 3”(76.2) .641”(16.3) N/A 1.5”(38.1)
15006X/16006X 6”(152) 1”(25.4) 2”(50.8) 3”(76.2)
15009X/16009X 9”(228.6) 1”(25.4) 2”(50.8) 3”(76.2)
15012X/16012X 12”(304.8) 1”(25.4) 2”(50.8) 3”(76.2)
15015X/16015X 15”(381) 1”(25.4) 2”(50.8) 4”(101.6)
15018X/16018X 18”(457.2) 1”(25.4) 2”(50.8) 5”(127.0)
15024X/16024X 24”(609.6) 1”(25.4) 2”(50.8) 6”(152.4)
15030X/16030X 30”(762) 1”(25.4) 2”(50.8) 6”(152.4)
15036X/16036X 36”(914.4) 1”(25.4) 2”(50.8) 6”(152.4)
15042X/16042X 42”(1066.8) 1”(25.4) 2”(50.8) 6”(152.4)
15048X/16048X 48”(1219.2) 1”(25.4) 2”(50.8) 9”(228.6)
15054X/16054X 54”(1371.6) 1”(25.4) 2”(50.8) 9”(228.6)

NOTE: ENC-2 Power Supply has North American electrical approval

S-Line Power Supply has CE electrical approval
