Air Mag Air Nozzle
Engineered nozzle with a unique patent pending design to assist in focusing the compressed air from the supply line with the highest force per SCFM on the market
Air Mag Air Nozzle is an engineered nozzle with a unique patent pending design. It focuses on compressed air from the supply line. And entrained air from the surroundings to a sharp laminar flow of air. It is creating the highest force per SCFM on the market. This reduces compressed air energy use and noise levels compared to open jets and pipes.
Even replacing competitive air nozzles can save energy and noise levels significantly. The nozzle is made of rugged, cast zinc. Contains a single-piece design ideal for harsh environments. Also, with 316L stainless steel for corrosive, high-temperature, and food/pharmaceutical applications.

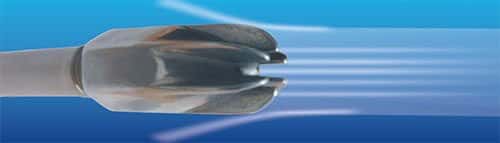

The Nex Flow Air mag nozzle design optimizes both external and internal aerodynamic shapes and directional design to minimize compressed air consumption while maximizing air entrainment and amplified flow output, with the absolute minimum of pressure loss providing a much greater distance for efficient, laminar for flow blow-off applications.
- Model 47004AMF – is the first product of the Nex Flow Air Mag patent pending star profile air amplifying nozzle and has the best force/air consumption ratio known.
- Sound Level 74 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)
| Weight | 0.1 kg |
|---|---|
| Model Type | Stainless Steel High Force per Air Consumption, Peek High Force per Air Consumption, Zinc Cast High Force per Air consumption |
| Connection Size | M4, M5, M6, 1/8" NPT, 1/4" NPT, 1/2" NPT |
| SKU | Model Type | Connection Size | ||
|---|---|---|---|---|
| 47006AMFS | Stainless Steel High Force per Air Consumption | 1/2" NPT | ||
| 47002AMS | Stainless Steel High Force per Air Consumption | M6 | ||
| 47004AMF | Zinc Cast High Force per Air consumption | 1/4" NPT | ||
| 47006AMF | Zinc Cast High Force per Air consumption | 1/2" NPT | ||
| 47000AMS | Stainless Steel High Force per Air Consumption | M4 | ||
| 47001AMS | Stainless Steel High Force per Air Consumption | M5 | ||

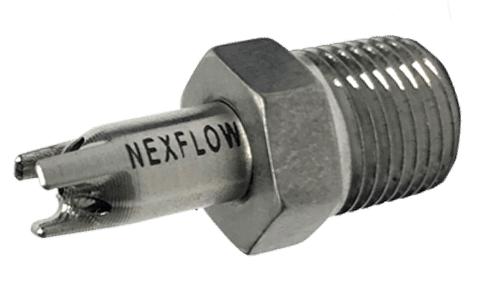

| 47002AMST | Stainless Steel High Force per Air Consumption | 1/8" NPT | ||

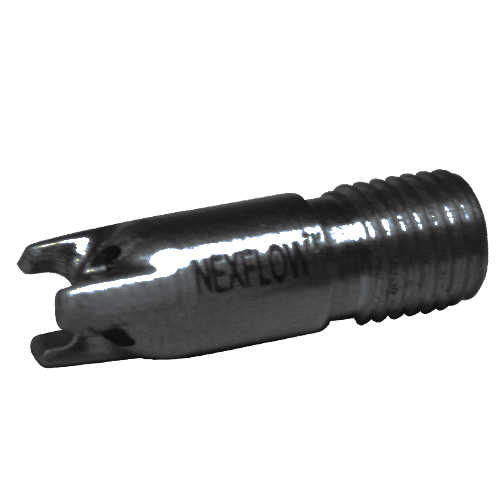

| 47002AMP | Peek High Force per Air Consumption | M6 | ||

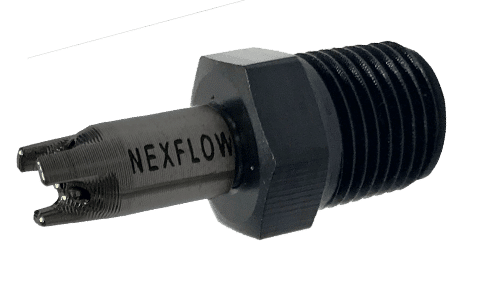

| 47002AMPT | Peek High Force per Air Consumption | 1/8" NPT | ||
| 47004AMFS | Stainless Steel High Force per Air Consumption | 1/4" NPT |
