Air Edger Flat Jet Nozzle
Provide a powerful stream of high-velocity laminar flow and high force for blow-off and cooling where air knives may not be enough.
Weight | 0.5 kg |
---|---|
Material | Zinc Aluminum, 316L Stainless Steel |
Gap Setting | Flat Jet with .004" Gap, Flat Jet with .008" Gap, Flat Jet with .012" Gap, Flat Jet with .016" Gap, Flat Jet with .020" Gap, Flat Jet with .024" Gap, Flat Jet with .028" Gap |
Air Edger Flat Jet Nozzle (Model 47011 ) is designed to provide a powerful stream of high-velocity laminar flow and high force for blow-off and cooling where air knives may not be enough.
When bench-tested against several other flat jets, even those with specially designed holes or shims, the Air Edger Flat Jet outperformed them despite whatever claims others may make. Air consumption and noise levels are minimized with its special design and configuration.
The Nex Flow Air Edger Flat Jet has various size gaps, all set by a flat shim.
Three standard shim sizes are available
- .004 (.10 mm)
- .008 (.2mm)
- .020 (.51 mm)
One, two, or more shims can be stacked for a larger gap and greater force.
SKU | Material | Gap Setting | ||
---|---|---|---|---|
47011-28 | Zinc Aluminum | Flat Jet with .028" Gap | ||
47011-4 | Zinc Aluminum | Flat Jet with .004" Gap | ||
47011-8 | Zinc Aluminum | Flat Jet with .008" Gap | ||
47011-12 | Zinc Aluminum | Flat Jet with .012" Gap | ||
47011-16 | Zinc Aluminum | Flat Jet with .016" Gap | ||
47011-20 | Zinc Aluminum | Flat Jet with .020" Gap | ||
47011-24 | Zinc Aluminum | Flat Jet with .024" Gap | ||
47011S-316L-4 | 316L Stainless Steel | Flat Jet with .004" Gap | ||
47011S-316L-8 | 316L Stainless Steel | Flat Jet with .008" Gap | ||
47011S-316L-12 | 316L Stainless Steel | Flat Jet with .012" Gap | ||
47011S-316L-16 | 316L Stainless Steel | Flat Jet with .016" Gap | ||
47011S-316L-20 | 316L Stainless Steel | Flat Jet with .020" Gap | ||
47011S-316L-24 | 316L Stainless Steel | Flat Jet with .024" Gap | ||
47011S-316L-28 | 316L Stainless Steel | Flat Jet with .028" Gap |
You may also like…
-
Shim For Air Edger Flat Jet Air Nozzles
Select options This product has multiple variants. The options may be chosen on the product page
Related products
-

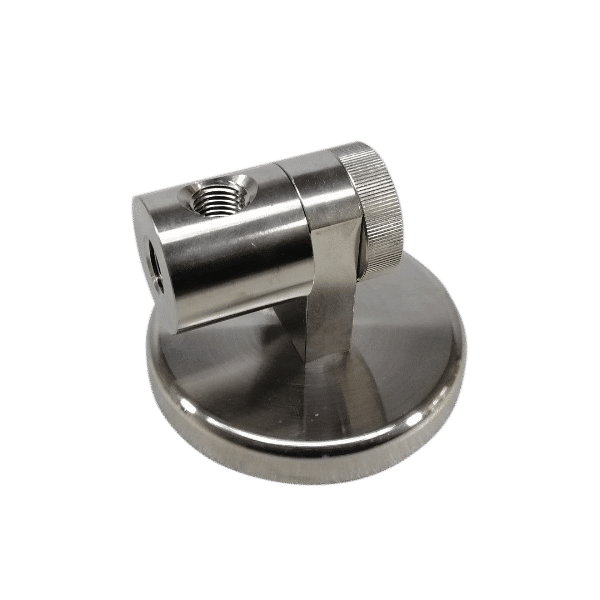

Magnetic Base Nex Flow
