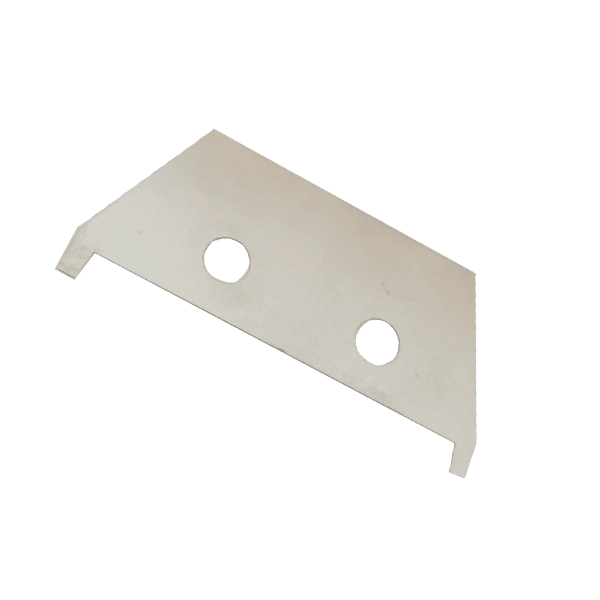

Shim For Air Edger Flat Jet Air Nozzles
Adding thicker shims or additional ones by stacking them, you can increase the flow and force from the blow off products when required
| Weight | 0.2 kg |
|---|---|
| Material | 304 Stainless Steel, 316L Stainless Steel |
| Model Type | .004" Thickness, .008" Thickness, .020" Thickness, Complete Kit |
Shim for Air Edger Flat Jet Air Nozzles Model 47011
The Air Edger Flat Jet air nozzle is designed to provide a powerful stream of high-velocity laminar flow and high force for blow-off and cooling where air knives may not be enough.
When bench-tested against several other flat jets, even those with specially designed holes or shims, the Air Edger Flat Jet outperformed them despite whatever claims others may make. Air consumption and noise levels are minimized with its special design and configuration.
The Nex Flow Air Edger Flat Jet has various size gaps, all set by a flat shim.
Three standard shim sizes are available
- ‰ÛÒ .004 (.10 mm)
- .008 (.2mm)
- .020 (.51 mm)
One, two, or more shims can be stacked for a larger gap and greater force.

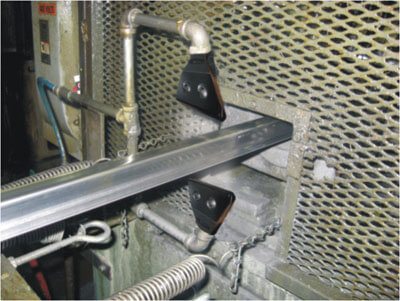

Air Edger blowing off dirt and debris on a metal extrusion line

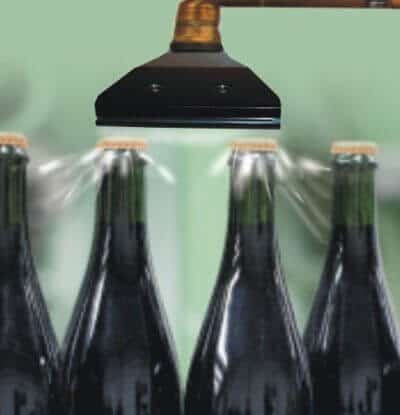

Air Edger blowing off water from under caps on a high speed bottling line
| SKU | Material | Model Type | ||
|---|---|---|---|---|

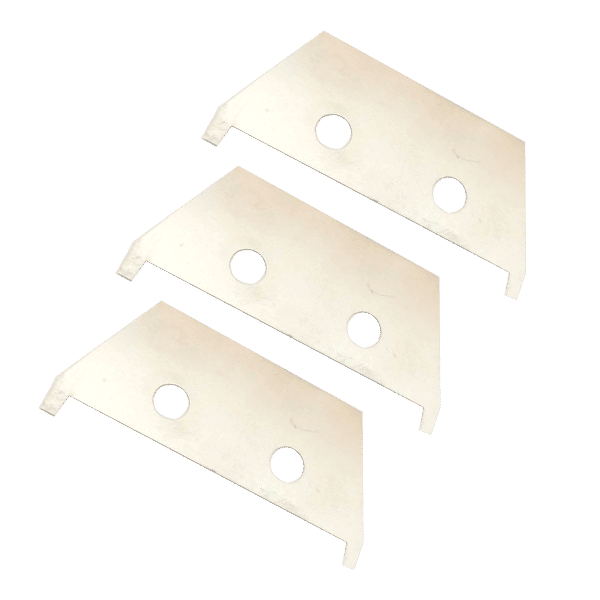

| 47211S | 304 Stainless Steel | Complete Kit | ||
| 47211S-316L | 316L Stainless Steel | Complete Kit | ||
| 47111S-4 | 304 Stainless Steel | .004" Thickness | ||
| 47111S-8 | 304 Stainless Steel | .008" Thickness | ||
| 47111S-20 | 304 Stainless Steel | .020" Thickness | ||
| 47111XS-316L-4 | 316L Stainless Steel | .004" Thickness | ||
| 47111XS-316L-8 | 316L Stainless Steel | .008" Thickness | ||
| 47111XS-316L-20 | 316L Stainless Steel | .020" Thickness |
