Muffling Kit For Panel Cooler
Muffing Kit For Panel Cooler reduces the exhaust noise up to 10 dBA and is a standard part of special vortex tube packages.
| Weight | 0.2 kg |
|---|---|
| Model Type | Cold End Muffler Kit, Hot End Muffler & Heat Guard Kit, Hot and Cold End Muffler & Heat Guard Kit |
| Size | 2 to 8 SCFM, 10 to 40 SCFM |
Muffling Kit For Panel Cooler, in many environments where the surroundings are very quiet or if the personnel is working next to control panels, the Hot End and Cold End Muffing kits can reduce the noise levels an additional 8 dBA depending on the air capacity used!
The Hot End Muffler also acts as an excellent heat guard over the hot end, exhausting the hot air from the vortex tube cooler assembly. Noise levels with the Nex Flow Panel Coolers can be reduced to under 64 dBA or more depending on the capacity of the Panel Cooler.
HOT AND COLD END MUFFLING KITS ON A PANEL COOLER REDUCE
NOISE LEVELS UP TO AN ADDITIONAL 8 dBA.
IN ADDITION, THE HOT END MUFFLER ACTS AS A HEAT GUARD.

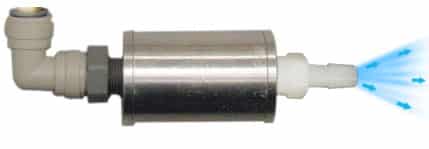

Cold End Muffling Kit
The Cold End Muffling Kit consists of a silencer and all necessary fittings to connect to the Panel Cooler at the cold air outlet inside the electrical control panel. Depending on the capacity of the specific Panel Cooler, the dBA reduction offered by the Cold End Muffling Kit is 5 to 6 dBA. Easy to install. Can be installed with the silencer vertically or horizontally depending on the space.
Hot End Muffling Kit & Heat Guard
 |
The Hot End Muffling Kit consists of an ABS Plastic sleeve with silencing material fitted over the hot end of the Panel Cooler outside of the control panel. The dBA reduction offered by the Hot End Muffling Kit is 2 dBA. Easy to install, just fit over the top of the Panel Cooler. In addition to noise reduction, it offers additional protection from the hot end of the Panel Cooler. |
Muffling Kit Selection
| Part # | Description |
| 69501 | Cold End Muffler Kit for 60015A to 63140X |
| 69502 | Hot End Muffler Kit for 60015A to 63140X |
| 69503 | Cold End Muffler Kit for 60004A to 63108X |
| 69504 | Cold End Muffler Kit for 60004A to 63108X |
| 69505 | Cold End and Hot End Combination Muffler Kit for 60015A to 63140X |
| 69506 | Cold End and Hot End Combination Muffler Kit for 60004A to 63108X |
Muffing Kit For Panel Cooler NOTES:
- For the 316 stainless Panel Coolers, only the Cold End Mufflers may be used.
- If using Side Mounts, only the Cold End Mufflers may be used.
| SKU | Model Type | Size | ||
|---|---|---|---|---|

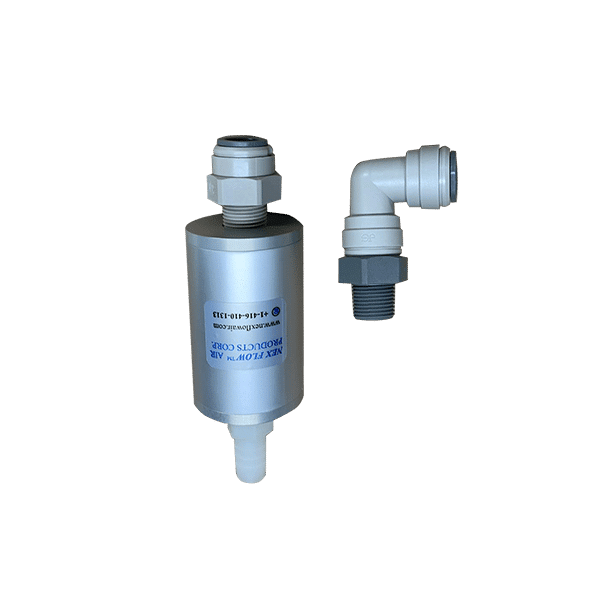

| 69501 | Cold End Muffler Kit | 10 to 40 SCFM | ||

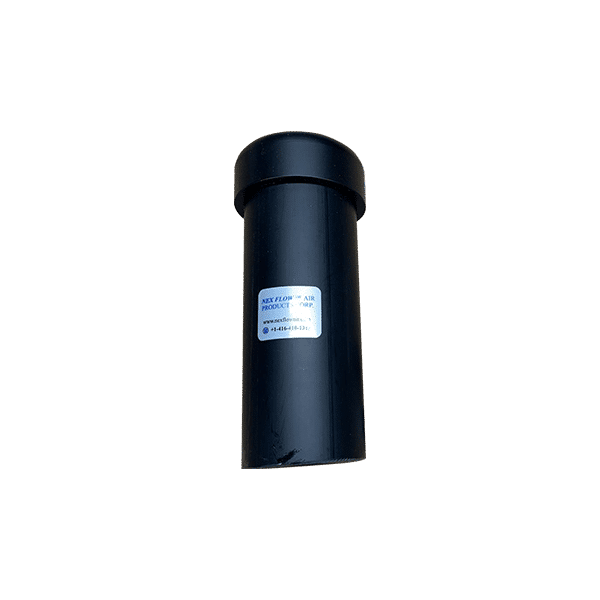

| 69502 | Hot End Muffler & Heat Guard Kit | 10 to 40 SCFM | ||

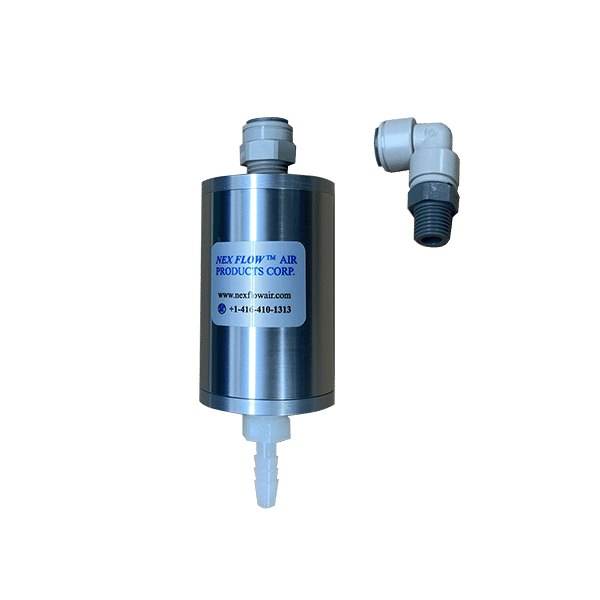

| 69503 | Cold End Muffler Kit | 2 to 8 SCFM | ||

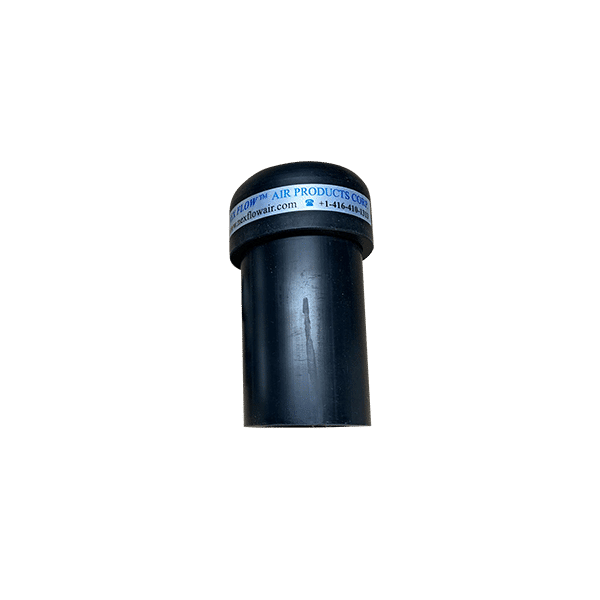

| 69504 | Hot End Muffler & Heat Guard Kit | 2 to 8 SCFM | ||

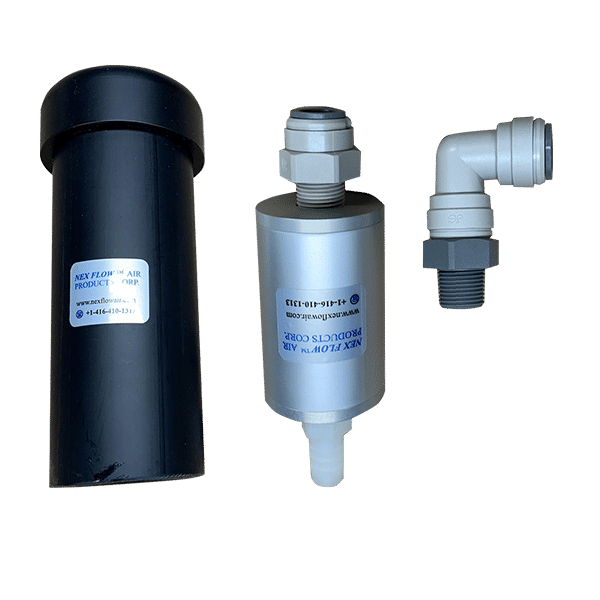

| 69505 | Hot and Cold End Muffler & Heat Guard Kit | 10 to 40 SCFM | ||

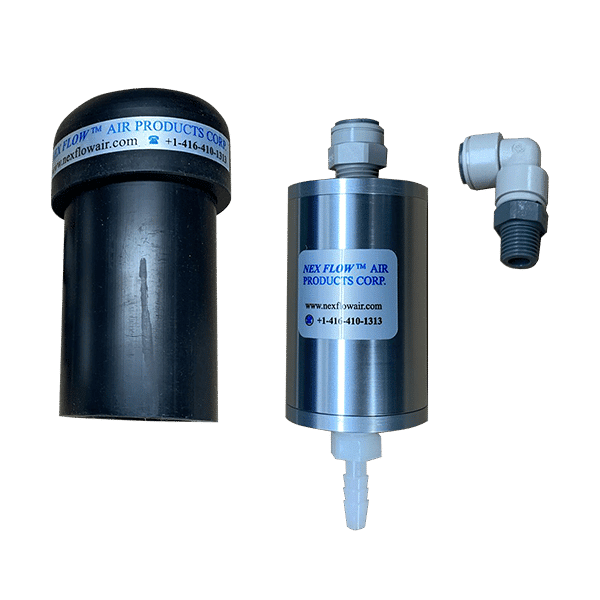

| 69506 | Hot and Cold End Muffler & Heat Guard Kit | 2 to 8 SCFM |
