Product Overview
Nex Flow® Ring Vac® air operated conveyors come in a variety of sizes,materials, and configurations. Anodized aluminum versions from ½” to 3” standard size (and larger for special applications on request) are used to convey all sorts of materials over large distances, both vertical and horizontal. 304 stainless and 316L stainless versions are used for food grade and pharmaceutical applications and for use in high temperature and corrosive environments.
As these units do use a significant amount of compressed air, they are best applied where the air is available and in particular, intermittent use applications. Some applications only require low pressure to operate, minimizing air use. The Ring Vac® consists of a body, a generator (which creates the venturi effect), and a cap. The unit can be dismantled and easily cleaned if necessary.
Common applications include hopper loading (resin in the plastic industry, bottle caps in bottling), material conveying of all sorts, waste and trim removal, transferring parts from one location to another, chip removal, tensioning fiber, and in filling operations.
The regular Nex Flow® Ring Vac® air operated conveyors can be clamped to standard pipe and hose. Threaded versions can be threaded onto regular threaded pipe sizes. 316L stainless Nex Flow® Ring Vac® units with sanitary flanges are available for sanitary systems.
The actual rate material is conveyed is governed by the size, the mass, and the shape of the part to be moved along with the height, length, and number of bends in the system. Nex Flow® personnel and their trained application engineers worldwide can assist in determining the best size. One special version of the air operated conveyor is the XSPC pneumatic conveyor. This unit is specially designed to convey materials which might clog the system. One example is conveying bunched up textiles which can clump together and get stuck in a regular Ring Vac® system. The XSPC can convey such material without clogging.
The data required to help choose the correct model are as follows: the diameter or maximum dimensions of the part to be conveyed, the diameter of the hose or pipe used to convey the material (if already chosen), the weight or volume rate of conveying desired, and the material of the Ring Vac® .
Special Nex Flow® Ring Vac® units can be made to retrofit existing machinery. As mentioned, there are units available in 316L stainless steel with sanitary flanges. Other styles of flanged units can be manufactured in all sorts of material. For example, special Ring Vac® units, flanged, were made of Teflon for an application where corrosive gases had to be vented in a scrubber application.
Apart from the Ring Vac® units and the XSPC version, Nex Flow® produces some special products which utilize this technology: the Blind Hole cleaning system, and the X-stream® Hand Vac®.
Applications
- Hopper loading
- Fiber tensioning
- Material conveying
- Waste/trim removal
- Chip removal
- Part transfer
- Filling operations
Features / Advantages
- Compact
- Quiet
- No moving parts
- Fits standard hose or tube
- Aluminum or stainless steel
- High throughput capability
Videos

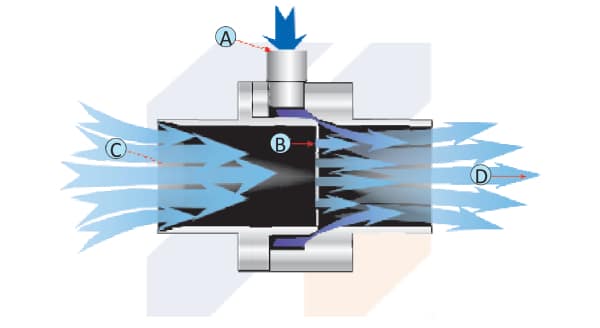

Ring-Vac® compressed air conveying system – Compressed air enters at point (A) into an annular plenum chamber and is injected into the throat of the unit though directed nozzles. These jets of compressed air create a vacuum at the inlet (C) which draws in material and accelerates it through the unit and out at (D) conveying the material over a great vertical or horizontal distance.
Specifications

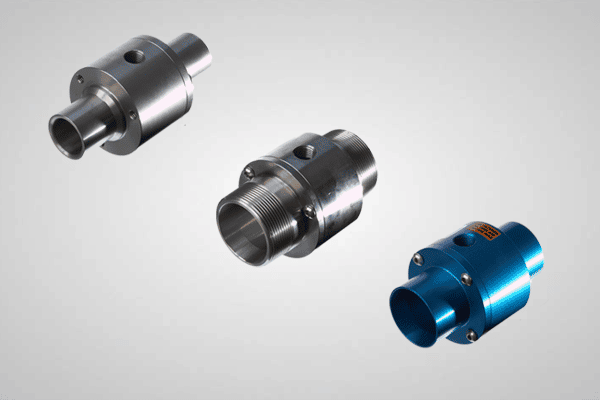

Air Conveyors – Ring-Vac® Pneumatic Conveying Systems are available in coated Aluminium, stainless steel and in high temperature stainless steel for high temperature applications. Note: All our stainless steel high temperature Ring-Vac units are rated to 1200ºF (649ºC)
Special materials can be utilized for unique applications. If greater conveying force is required the conveying “generator” can be machined for higher capacities.
| Model Number | Material of Construction | Outside Diameter (Dimension “A” Hose Diameter) |
|---|---|---|
| 39998 | Aluminium | 3/8″ |
| 39999 | Aluminium | 1/2″ |
| 30000 | Aluminium | 3/4″ |
| 30001 | Aluminium | 1″ |
| 30002 | Aluminium | 1-1/4″ |
| 30003 | Aluminium | 1-1/2″ |
| 30004 | Aluminium | 2″ |
| 30005 | Aluminium | 2 1/2″ |
| 30006 | Aluminium | 3″ |
| 30007 | Aluminium | 4″ |
| 30008 | Aluminium | 5″ |
| 39998S | Stainless Steel | 3/8″ |
| 39999S | Stainless Steel | 1/2″ |
| 30000S | Stainless Steel | 3/4″ |
| 30001S | Stainless Steel | 1″ |
| 30002S | Stainless Steel | 1-1/4″ |
| 30003S | Stainless Steel | 1-1/2″ |
| 30004S | Stainless Steel | 2″ |
| 30005S | Stainless Steel | 2 1/2″ |
| 30006S | Stainless Steel | 3″ |
| 30007S | Stainless Steel | 4″ |
| 30008S | Stainless Steel | 5″ |
| 39998HTS | High Temperature Stainless Steel | 3/8″ |
| 39999HTS | High Temperature Stainless Steel | 1/2″ |
| 30000HTS | High Temperature Stainless Steel | 3/4″ |
| 30001HTS | High Temperature Stainless Steel | 1″ |
| 30002HTS | High Temperature Stainless Steel | 1-1/4″ |
| 30003HTS | High Temperature Stainless Steel | 1-1/2″ |
| 30004HTS | High Temperature Stainless Steel | 2″ |
| 30005HTS | High Temperature Stainless Steel | 2 1/2″ |
| 30006HTS | High Temperature Stainless Steel | 3″ |
| 30007HTS | High Temperature Stainless Steel | 4″ |
| 30008HTS | High Temperature Stainless Steel | 5″ |
| 30001T | Threaded Aluminum | 1″ NPT |
| 30002T | Threaded Aluminum | 1-1/4″ NPT |
| 30003T | Threaded Aluminum | 1-1/2″ NPT |
| 30004T | Threaded Aluminum | 2″ NPT |
| 30001TS | Threaded Stainless Steel | 1″ NPT |
| 30002TS | Threaded Stainless Steel | 1-1/4″ NPT |
| 30003TS | Threaded Stainless Steel | 1-1/2″ NPT |
| 30004TS | Threaded Stainless Steel | 2″ NPT |
| 30006TS | Threaded Stainless Steel | 3″ NPT |
| 30000S-316L | 316L Stainless Steel | 3/4″ |
| 30001S-316L | 316L Stainless Steel | 1″ |
| 30002S-316L | 316L Stainless Steel | 1-1/4″ |
| 30003S-316L | 316L Stainless Steel | 1-1/2″ |
| 30004S-316L | 316L Stainless Steel | 2″ |
| 30006S-316L | 316L Stainless Steel | 3″ |
| 30000HTS-316L | High Temperature 316L Stainless Steel | 3/4″ |
| 30001HTS-316L | High Temperature 316L Stainless Steel | 1″ |
| 30002HTS-316L | High Temperature 316L Stainless Steel | 1-1/4″ |
| 30003HTS-316L | High Temperature 316L Stainless Steel | 1-1/2″ |
| 30004HTS-316L | High Temperature 316L Stainless Steel | 2″ |
| 30006HTS-316L | High Temperature 316L Stainless Steel | 3″ |
NPT Adaptors Available Upon Request
** STAINLESS STEEL IS 303/304 STAINLESS UNLESS OTHERWISE INDICATED

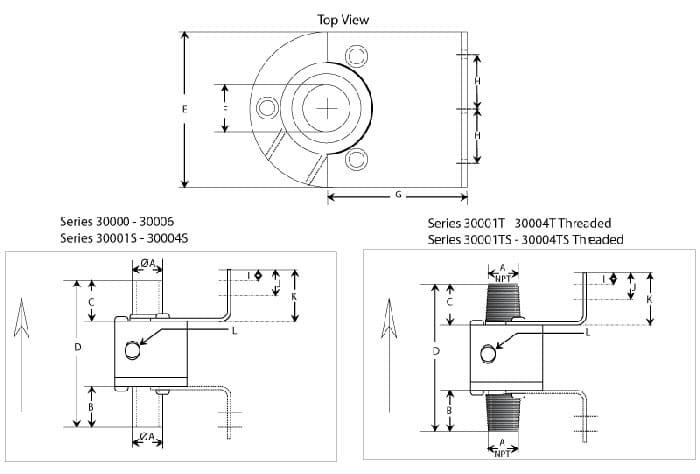

Dimensions
| PART NO. (Aluminium & high temperature stainless steel) | A IN (MM) | B IN (MM) | C IN (MM) | D IN (MM) | E IN (MM) | F IN (MM) | G IN (MM) | H IN (MM) | I IN (MM) | J IN (MM) | K IN (MM) | L* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 39998 39998S 39998HTS |
0.375” (10.0) | 0.63″ (16.0) | 0.63″ (16.0) | 2.18″ (65.0) | 1.00″ (25.0) | 0.19″ (5.0) | N/A | N/A | N/A | N/A | N/A | 1/8″ NPT |
| 39999 39999S 39999HTS |
0.50″ (13.0) | 0.75″ (19.0) | 0.75″ (25.4) | 2.62″ (19.0) | 1.25″ (32.0) | 0.31″ (8.0) | N/A | N/A | N/A | N/A | N/A | 1/8″ NPT |
| 30000 30000S 30000HTS 30000S-316L 30000HTS-316L |
0.75″ (19.0) | 1.00″ (25.5) | 1.00″ (25.5) | 3.94″ (100) | 1.95″ (49.5) | 0.55″ (14.0) | 1.92″ (48.7) | 0.95″ (15.0) | 0.39″ (10.0) | 1.18″ (30.0) | 1.97″ (50.0) | 1/4″ NPT |
| 30001 30001S 30001T 30001TS 3001HTS 3001THTS 30001S-316L 30001HST-316L |
1.00” (25.4) | 1.38” (35.1) | 1.50” (38.1) | 4.88” (124) | 2.24” (56.8) | 0.75” (19.0) | 2.17” (55.0) | 0.73” (18.5) | 0.39” (10.0) | 1.58” (40) | 1.97” (50.0) | ¼” NPT |
| 30002 30002S 30002T 30002TS 30002HTS 30002THTS 30002S-316L 30002HTS-316L |
1.25” (31.8) | 1.38” (35.1) | 1.50” (38.1) | 4.88” (124.0) | 2.49” (63.2) | 1.00” (25.4) | 2.21” (56.3) | 0.73” (18.5) | 0.39” (10.0) | 1.77” (45) | 2.17” (55.0) | ¼” NPT |
| 30003 30003S 30003T 30003TS 30003HTS 30003THTS 30003S-316L 30003HTS-316L |
1.50” (38.1) | 1.38” (35.1) | 1.50” (38.1) | 4.875” (124) | 2.75” (69.9) | 1.125” (28.6) | 2.15” (54.5) | 0.89” (22.5) | 0.39” (10.0) | 1.58” (40) | 1.97” (50.0) | 3/8” NPT |
| 30004 30004S 30004T 30004TS 30004HTS 30004THTS 30004S-316L 30004HTS-316L |
2.00” (50.8) | 1.38” (35.1) | 1.5” (38.1) | 4.88” (124.0) | 3.21” (81.6) | 1.75” (44.5) | 2.39” (60.7) | 1.18” (30) | 0.39” (10.0) | 1.58” (40) | 1.97” (50.0) | 3/8” NPT |
| 30005 30005 30005S 30005HTS |
2.5” (63.5) | 1.38” (35.1) | 1.5” (38.1) | 5.29” (134.5) | 3.94” (100.0) | 2.19” (55.6) | N/A | N/A | N/A | N/A | N/A | 3/8” NPT |
| 30006 30006S 30006TS 30006HTS 30006THTS 30006S-316L 30006HTS-316L |
3.0” (76.2) | 1.58” (40) | 1.58” (40) | 5.59” (142.0) | 4.33” (110.0) | 2.68” (68.0) | N/A | N/A | N/A | N/A | N/A | 1/2″ NPT |
| 30007 30007S 30007HTS 30007S-316L 30007HTS-316L |
4.0” (101.6) | 1.7” (44.4) | 1.7” (44.4) | 5.6” (142.9) | 5.2” (133.3) | 3.7” (93.6) | N/A | N/A | N/A | N/A | N/A | 1/2″ NPT |
| 30008 30008S 30008HTS 30008S-316L 30008HTS-316L |
5.0” (127.0) | 1.7” (44.4) | 1.7” (44.4) | 5.6” (142.9) | 6.2” (158.7) | 4.7” (119.0) | N/A | N/A | N/A | N/A | N/A | 1/2″ NPT |
BSP adaptors supplied upon request free of charge.
Performance
| MODEL | Size Outside Diameterinches (mm) | Air Consumption SCFM at 80 PSIG (SLPM at 5.5 BAR) | Vacuum inches H2O (KPA) |
|---|---|---|---|
| 39998 39998S 39998HTS | 3/8″ (10mm) | 5.6 (158) | -120 (-29.9) |
| 39999 39999S 39999HTS | 1/2″ (13mm) | 7 (198) | -100 (-24.9) |
| 30000 30000S 30000HTS 30000S-316L 30000HTS-316L | 3/4″ (19mm) | 11 (303) | -72 (-18) |
| 30001 30001S 30001T 30001TS 30001HTS 30001THTS 30001S-316L 30001HST-316L | 1″ (25mm) | 15 (415) | -42 (-11) |
| 30002 30002S 30002T 30002TS 30002SHTS 30002HTS 30002S-316L 30002HTS-316L | 1 1/4 ” (32mm) | 26 (730) | -42 (-11) |
| 30003TS 30003THTS 30003THTS 30003THTS 30003S-316L 30003HTS-316L | 1-1/2″ (38mm) | 33 (932) | -39 (-9) |
| 30004 30004S 30004T 30004TS 30004THTS 30004HTS 30004S-316L 30004HTS-316L | 2″ (51mm) | 45 (1270) | -28 (-7) |
| 30005 30005S 30005HTS | 2 1/2″ (63.5mm) | 58.5 (1655) | -23.5 (-6) |
| 30006 30006S 30006HTS 30006TS 30006THTS 30006S-316L 30006HTS-316L | 3″ (76mm) | 69 (1940) | -14.7 (-4) |
| 30007 30007S 30007HTS 30007S-316L 30007HTS-316L | 4″ (101.6mm) | 95 (2690) | -13.6 (-3.4) |
| 30008 30008S 30008HTS 30008S-316L 30008HTS-316L | 5″ (127mm) | 128 (3625) | -10.5 (-2.6) |
| Aluminum Ring Vac™ | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 39998 | Aluminum Ring-Vac Only | 3/8″ | $108.00 |
| 39999 | Aluminum Ring-Vac Only | 1/2″ | $112.00 |
| 30000 | Aluminum Ring-Vac Only | 3/4″ | $120.00 |
| 30001 | Aluminum Ring-Vac Only | 1″ | $132.00 |
| 30002 | Aluminum Ring-Vac Only | 1-1/4″ | $148.00 |
| 30003 | Aluminum Ring-Vac Only | 1-1/2″ | $181.00 |
| 30004 | Aluminum Ring-Vac Only | 2″ | $214.00 |
| 30005 | Aluminum Ring-Vac Only | 2-1/2″ | $313.00 |
| 30006 | Aluminum Ring-Vac Only | 3″ | $492.00 |
| 30007 | Aluminum Ring-Vac Only | 4″ | $694.00 |
| 30008 | Aluminum Ring-Vac Only | 5″ | $915.00 |
| 31998 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 | 3/8″ | $233.00 |
| 31999 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 | 1/2″ | $237.00 |
| 31000 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 | 3/4″ | $245.00 |
| 31001 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 | 1″ | $257.00 |
| 31002 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 | 1-14″ | $273.00 |
| 31003 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 | 1-1/2″ | $306.00 |
| 31004 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90001 | 2″ | $339.00 |
| 31005 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90001 | 2-1/2″ | $438.00 |
| 31006 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90002 | 3″ | $717.00 |
| 31007 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90002 | 4″ | $919.00 |
| 31008 | Aluminum Ring-Vac plus Filter with Auto Drain Model 90002 | 5″ | $1,140.00 |
| 32998 | Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 | 3/8″ | $308.00 |
| 32999 | Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 | 1/2″ | $312.00 |
| 32000 | Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 | 3/4″ | $320.00 |
| 32001 | Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 | 1″ | $332.00 |
| 32002 | Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 | 1-14″ | $348.00 |
| 32003 | Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 | 1-1/2″ | $381.00 |
| 32004 | Aluminum Ring-Vac + filter 90001 + reg. with gage model 90008 | 2″ | $414.00 |
| 32005 | Aluminum Ring-Vac + filter 90001 + reg. with gage model 90008 | 2-1/2″ | $513.00 |
| 32006 | Aluminum Ring-Vac + filter 90002 + reg. with gage model 90009 | 3″ | $827.00 |
| 32007 | Aluminum Ring-Vac + filter 90002 + reg. with gage model 90009 | 4″ | $1,029.00 |
| 32008 | Aluminum Ring-Vac + filter 90002 + reg. with gage model 90009 | 5″ | $1,250.00 |
| 30001T | Threaded Aluminum Ring-Vac Only | 1″ | $170.00 |
| 30002T | Threaded Aluminum Ring-Vac Only | 1-1/4″ | $210.00 |
| 30003T | Threaded Aluminum Ring-Vac Only | 1-1/2″ | $260.00 |
| 30004T | Threaded Aluminum Ring-Vac Only | 2″ | $310.00 |
| 31001T | Threaded Al. Ring-Vac plus Filter with Auto Drain Model 90004 | 1″ | $295.00 |
| 31002T | Threaded Al. Ring-Vac plus Filter with Auto Drain Model 90004 | 1-14″ | $335.00 |
| 31003T | Threaded Al. Ring-Vac plus Filter with Auto Drain Model 90004 | 1-1/2″ | $385.00 |
| 31004T | Threaded Al. Ring-Vac plus Filter with Auto Drain Model 90001 | 2″ | $435.00 |
| 32001T | Thr. Al. Ring-Vac + filter 90004 + reg. with gage model 90008 | 1″ | $370.00 |
| 32002T | Thr. Al. Ring-Vac + filter 90004 + reg. with gage model 90008 | 1-14″ | $410.00 |
| 32003T | Thr. Al. Ring-Vac + filter 90004 + reg. with gage model 90008 | 1-1/2″ | $460.00 |
| 32004T | Thr. Al. Ring-Vac + filter 90001 + reg. with gage model 90008 | 2″ | $510.00 |
| More Information or Buy Here |
| Stainless Steel Ring Vac™ | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 39998S | Stainless Steel Ring-Vac Only | 3/8″ | $285.00 |
| 39999S | Stainless Steel Ring-Vac Only | 1/2″ | $295.00 |
| 30000S | Stainless Steel Ring-Vac Only | 3/4″ | $345.00 |
| 30001S | Stainless Steel Ring-Vac Only | 1″ | $365.00 |
| 30002S | Stainless Steel Ring-Vac Only | 1-1/4″ | $398.00 |
| 30003S | Stainless Steel Ring-Vac Only | 1-1/2″ | $428.00 |
| 30004S | Stainless Steel Ring-Vac Only | 2″ | $450.00 |
| 30005S | Stainless Steel Ring-Vac Only | 2-1/2″ | $800.00 |
| 30006S | Stainless Steel Ring-Vac Only | 3″ | $1,450.00 |
| 30007S | Stainless Steel Ring-Vac Only | 4″ | $2,200.00 |
| 30008S | Stainless Steel Ring-Vac Only | 5″ | $3,800.00 |
| 31998S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 | 3/8″ | $410.00 |
| 31999S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 | 1/2″ | $420.00 |
| 31000S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 | 3/4″ | $470.00 |
| 31001S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 | 1″ | $490.00 |
| 31002S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 | 1-14″ | $523.00 |
| 31003S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 | 1-1/2″ | $553.00 |
| 31004S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90001 | 2″ | $575.00 |
| 31005S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90001 | 2-1/2″ | $925.00 |
| 31006S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90002 | 3″ | $1,675.00 |
| 31007S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90002 | 4″ | $2,425.00 |
| 31008S | Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90002 | 5″ | $4,025.00 |
| 32998S | Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 | 3/8″ | $485.00 |
| 32999S | Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 | 1/2″ | $495.00 |
| 32000S | Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 | 3/4″ | $545.00 |
| 32001S | Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 | 1″ | $565.00 |
| 32002S | Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 | 1-14″ | $598.00 |
| 32003S | Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 | 1-1/2″ | $628.00 |
| 32004S | Stainless Ring-Vac + filter 90001 + reg. with gage model 90008 | 2″ | $650.00 |
| 32005S | Stainless Ring-Vac + filter 90001 + reg. with gage model 90008 | 2-1/2″ | $1,000.00 |
| 32006S | Stainless Ring-Vac + filter 90002 + reg. with gage model 90009 | 3″ | $1,785.00 |
| 32007S | Stainless Ring-Vac + filter 90002 + reg. with gage model 90009 | 4″ | $2,535.00 |
| 32008S | Stainless Ring-Vac + filter 90002 + reg. with gage model 90009 | 5″ | $4,135.00 |
| 30001TS | Threaded Stainless Steel Ring-Vac Only | 1″ | $485.00 |
| 30002TS | Threaded Stainless Steel Ring-Vac Only | 1-1/4″ | $520.00 |
| 30003TS | Threaded Stainless Steel Ring-Vac Only | 1-1/2″ | $575.00 |
| 30004TS | Threaded Stainless Steel Ring-Vac Only | 2″ | $620.00 |
| 30006TS | Threaded Stainless Steel Ring-Vac Only | 3″ | $1,700.00 |
| 31001TS | Threaded SS Ring-Vac plus Filter with Auto Drain Model 90004 | 1″ | $610.00 |
| 31002TS | Threaded SS Ring-Vac plus Filter with Auto Drain Model 90004 | 1-14″ | $645.00 |
| 31003TS | Threaded SS Ring-Vac plus Filter with Auto Drain Model 90004 | 1-1/2″ | $700.00 |
| 31004TS | Threaded SS Ring-Vac plus Filter with Auto Drain Model 90001 | 2″ | $745.00 |
| 31006TS | Threaded SS Ring-Vac plus Filter with Auto Drain Model 90002 | 3″ | $1,925.00 |
| 32001TS | Thr. SS. Ring-Vac + filter 90004 + reg. with gage model 90008 | 1″ | $685.00 |
| 32002TS | Thr. SS. Ring-Vac + filter 90004 + reg. with gage model 90008 | 1-14″ | $720.00 |
| 32003TS | Thr. SS. Ring-Vac + filter 90004 + reg. with gage model 90008 | 1-1/2″ | $775.00 |
| 32004TS | Thr. SS. Ring-Vac + filter 90001 + reg. with gage model 90008 | 2″ | $820.00 |
| 32006TS | Thr. SS. Ring-Vac + filter 90002 + reg. with gage model 90009 | 3″ | $2,035.00 |
| 39998HTS | Hi Temp. Stainless Steel Ring-Vac Only | 3/8″ | $440.00 |
| 39999HTS | Hi Temp. Stainless Steel Ring-Vac Only | 1/2″ | $455.00 |
| 30000HTS | Hi Temp. Stainless Steel Ring-Vac Only | 3/4″ | $475.00 |
| 30001HTS | Hi Temp. Stainless Steel Ring-Vac Only | 1″ | $545.00 |
| 30002HTS | Hi Temp. Stainless Steel Ring-Vac Only | 1-1/4″ | $595.00 |
| 30003HTS | Hi Temp. Stainless Steel Ring-Vac Only | 1-1/2″ | $645.00 |
| 30004HTS | Hi Temp. Stainless Steel Ring-Vac Only | 2″ | $705.00 |
| 30005HTS | Hi Temp. Stainless Steel Ring-Vac Only | 2-1/2″ | $1,015.00 |
| 30006HTS | Hi Temp. Stainless Steel Ring-Vac Only | 3″ | $1,790.00 |
| 30007HTS | Hi Temp. Stainless Steel Ring-Vac Only | 4″ | $2,420.00 |
| 30008HTS | Hi Temp. Stainless Steel Ring-Vac Only | 5″ | $3,820.00 |
| 31998HTS | Hi Temp. SS. Ring-Vac + filter 90004 with auto drain | 3/8″ | $565.00 |
| 31999HTS | Hi Temp. SS. Ring-Vac + filter 90004 with auto drain | 1/2″ | $580.00 |
| 31000HTS | Hi Temp. SS. Ring-Vac + filter 90004 with auto drain | 3/4″ | $600.00 |
| 31001HTS | Hi Temp. SS. Ring-Vac + filter 90004 with auto drain | 1″ | $670.00 |
| 31002HTS | Hi Temp. SS. Ring-Vac + filter 90004 with auto drain | 1-14″ | $720.00 |
| 31003HTS | Hi Temp. SS. Ring-Vac + filter 90004 with auto drain | 1-1/2″ | $770.00 |
| 31004HTS | Hi Temp. SS. Ring-Vac + filter 90001 with auto drain | 2″ | $830.00 |
| 31005HTS | Hi Temp. SS. Ring-Vac + filter 90001 with auto drain | 2-1/2″ | $1,140.00 |
| 31006HTS | Hi Temp. SS. Ring-Vac + filter 90002 with auto drain | 3″ | $2,015.00 |
| 31007HTS | Hi Temp. SS. Ring-Vac + filter 90002 with auto drain | 4″ | $2,645.00 |
| 31008HTS | Hi Temp. SS. Ring-Vac + filter 90002 with auto drain | 5″ | $4,045.00 |
| 32998HTS | Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 | 3/8″ | $640.00 |
| 32999HTS | Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 | 1/2″ | $655.00 |
| 32000HTS | Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 | 3/4″ | $675.00 |
| 32001HTS | Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 | 1″ | $745.00 |
| 32002HTS | Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 | 1-14″ | $795.00 |
| 32003HTS | Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 | 1-1/2″ | $845.00 |
| 32004HTS | Hi Temp. SS Ring-Vac + filter 90001+reg with gage Model 90008 | 2″ | $905.00 |
| 32005HTS | Hi Temp. SS Ring-Vac + filter 90001+reg with gage Model 90008 | 2-1/2″ | $1,215.00 |
| 32006HTS | Hi Temp. SS Ring-Vac + filter 90002+reg with gage Model 90009 | 3″ | $2,125.00 |
| 32007HTS | Hi Temp. SS Ring-Vac + filter 90002+reg with gage Model 90009 | 4″ | $2,755.00 |
| 32008HTS | Hi Temp. SS Ring-Vac + filter 90002+reg with gage Model 90009 | 5″ | $4,155.00 |
| 30001THTS | Hi-Temp. Threaded Stainless Steel Ring-Vac Only | 1″ | $655.00 |
| 30002THTS | Hi-Temp. Threaded Stainless Steel Ring-Vac Only | 1-1/4″ | $725.00 |
| 30003THTS | Hi-Temp. Threaded Stainless Steel Ring-Vac Only | 1-1/2″ | $805.00 |
| 30004THTS | Hi-Temp. Threaded Stainless Steel Ring-Vac Only | 2″ | $890.00 |
| 30006THTS | Hi-Temp. Threaded Stainless Steel Ring-Vac Only | 3″ | $1,900.00 |
| 31001THTS | Hi-Temp. Th. SS. Ring-Vac + filter 90004 with auto drain | 1″ | $780.00 |
| 31002THTS | Hi-Temp. Th. SS. Ring-Vac + filter 90004 with auto drain | 1-14″ | $850.00 |
| 31003THTS | Hi-Temp. Th. SS. Ring-Vac + filter 90004 with auto drain | 1-1/2″ | $930.00 |
| 31004THTS | Hi-Temp. Th. SS. Ring-Vac + filter 90001 with auto drain | 2″ | $1,015.00 |
| 31006THTS | Hi-Temp. Th. SS. Ring-Vac + filter 90002 with auto drain | 3″ | $2,125.00 |
| 32001THTS | Hi-Temp. Th. SS. Ring-Vac + filter 90004 + reg with gage 90008 | 1″ | $855.00 |
| 32002THTS | Hi-Temp. Th. SS. Ring-Vac + filter 90004 + reg with gage 90008 | 1-14″ | $925.00 |
| 32003THTS | Hi-Temp. Th. SS. Ring-Vac + filter 90004 + reg with gage 90008 | 1-1/2″ | $1,005.00 |
| 32004THTS | Hi-Temp. Th. SS. Ring-Vac + filter 90001 + reg with gage 90008 | 2″ | $1,090.00 |
| 32006THTS | Hi-Temp. Th. SS. Ring-Vac + filter 90002 + reg with gage 90009 | 3″ | $2,235.00 |
| 39000S | Stainless Bracket for 30000 & 30000S | - | $30.00 |
| 39001S | Stainless Bracket for 30001 & 30001S | - | $32.00 |
| 39002S | Stainless Bracket for 30002 & 30002S | - | $34.00 |
| 39003S | Stainless Bracket for 30003 & 30003S | - | $36.00 |
| 39004S | Stainless Bracket for 30004 & 30004S | - | $38.00 |
| 39005S | Stainless Bracket for 30005 & 30005S | - | $40.00 |
| 39006S | Stainless Bracket for 30006 & 30006S | - | $45.00 |
| 39007S | Stainless Bracket for 30007 & 30007S | - | $50.00 |
| 39008S | Stainless Bracket for 30008 & 30008S | - | $55.00 |
| More Information or Buy Here |
| 316L Stainless Steel Ring Vac™ | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 30000S-316L | 316L Stainless Steel Ring-Vac Only | 3/4″ | $590.00 |
| 30001S-316L | 316L Stainless Steel Ring-Vac Only | 1″ | $650.00 |
| 30002S-316L | 316L Stainless Steel Ring-Vac Only | 1-1/4″ | $720.00 |
| 30003S-316L | 316L Stainless Steel Ring-Vac Only | 1-1/2″ | $790.00 |
| 30004S-316L | 316L Stainless Steel Ring-Vac Only | 2″ | $850.00 |
| 30006S-316L | 316L Stainless Steel Ring-Vac Only | 3″ | $2,050.00 |
| 30007S-316L | 316L Stainless Steel Ring-Vac Only | 4″ | $2,950.00 |
| 30008S-316L | 316L Stainless Steel Ring-Vac Only | 5″ | $5,200.00 |
| 31000S-316L | 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain | 3/4" | $715.00 |
| 31001S-316L | 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain | 1" | $775.00 |
| 31002S-316L | 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain | 1-1/4" | $845.00 |
| 31003S-316L | 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain | 1-1/2" | $915.00 |
| 31004S-316L | 316L Stainless Steel Ring-Vac Only + 90001 Filter with auto drain | 2" | $975.00 |
| 31006S-316L | 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain | 3" | $2,076.00 |
| 31007S-316L | 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain | 4" | $2,976.00 |
| 31008S-316L | 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain | 5" | $5,226.00 |
| 32000S-316L | 316L SS Ring-Vac Only + 90004 Filter with auto drain+ 90008 Regulator with Gage | 3/4" | $790.00 |
| 32001S-316L | 316L SS Ring-Vac Only + 90004 Filter with auto drain+ 90008 Regulator with Gage | 1" | $850.00 |
| 32002S-316L | 316L SS Ring-Vac Only + 90004 Filter with auto drain+ 90008 Regulator with Gage | 1-1/4" | $920.00 |
| 32003S-316L | 316L SS Ring-Vac Only + 90004 Filter with auto drain+ 90008 Regulator with Gage | 1-1/2" | $990.00 |
| 32004S-316L | 316L SS Ring-Vac Only + 90001 Filter with auto drain+ 90008 Regulator with Gage | 2" | $1,050.00 |
| 32006S-316L | 316L SS Ring-Vac Only + 90002 Filter with auto drain+ 90009 Regulator with Gage | 3" | $2,186.00 |
| 32007S-316L | 316L SS Ring-Vac Only + 90002 Filter with auto drain+ 90009 Regulator with Gage | 4" | $3,086.00 |
| 32008S-316L | 316L SS Ring-Vac Only + 90002 Filter with auto drain+ 90009 Regulator with Gage | 5" | $5,336.00 |
| 30000HTS-316L | High Temperature 316L Stainless Steel Ring-Vac Only | 3/4″ | $900.00 |
| 30001HTS-316L | High Temperature 316L Stainless Steel Ring-Vac Only | 1″ | $995.00 |
| 30002HTS-316L | High Temperature 316L Stainless Steel Ring-Vac Only | 1-1/4″ | $1,100.00 |
| 30003HTS-316L | High Temperature 316L Stainless Steel Ring-Vac Only | 1-1/2″ | $1,195.00 |
| 30004HTS-316L | High Temperature 316L Stainless Steel Ring-Vac Only | 2″ | $1,300.00 |
| 30006HTS-316L | High Temperature 316L Stainless Steel Ring-Vac Only | 3″ | $2,700.00 |
| 30007HTS-316L | High Temperature 316L Stainless Steel Ring-Vac Only | 4″ | $3,500.00 |
| 30008HTS-316L | High Temperature 316L Stainless Steel Ring-Vac Only | 5″ | $5,600.00 |
| 31000HTS-316L | High Temp. 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain | 3/4" | $1,025.00 |
| 31001HTS-316L | High Temp. 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain | 1" | $1,120.00 |
| 31002HTS-316L | High Temp. 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain | 1-1/4" | $1,225.00 |
| 31003HTS-316L | High Temp. 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain | 1-1/2" | $1,320.00 |
| 31004HTS-316L | High Temp. 316L Stainless Steel Ring-Vac Only + 90001 Filter with auto drain | 2" | $1,425.00 |
| 31006HTS-316L | High Temp. 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain | 3" | $2,726.00 |
| 31007HTS-316L | High Temp. 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain | 4" | $3,526.00 |
| 31008HTS-316L | High Temp. 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain | 5" | $5,626.00 |
| 32000HTS-316L | High Temp. 316L SS Ring-Vac + 90004 Filter wi. auto drain + 90008 Reg. wi. gage | 3/4" | $1,100.00 |
| 32001HTS-316L | High Temp. 316L SS Ring-Vac + 90004 Filter wi. auto drain + 90008 Reg. wi. gage | 1" | $1,195.00 |
| 32002HTS-316L | High Temp. 316L SS Ring-Vac + 90004 Filter wi. auto drain + 90008 Reg. wi. gage | 1-1/4" | $1,300.00 |
| 32003HTS-316L | High Temp. 316L SS Ring-Vac + 90004 Filter wi. auto drain + 90008 Reg. wi. gage | 1-1/2" | $1,395.00 |
| 32004HTS-316L | High Temp. 316L SS Ring-Vac + 90001 Filter wi. auto drain + 90008 Reg. wi. gage | 2" | $1,500.00 |
| 32006HTS-316L | High Temp. 316L SS Ring-Vac + 90002 Filter wi. auto drain + 90009 Reg. wi. gage | 3" | $2,836.00 |
| 32007HTS-316L | High Temp. 316L SS Ring-Vac + 90002 Filter wi. auto drain + 90009 Reg. wi. gage | 4" | $3,636.00 |
| 32008HTS-316L | High Temp. 316L SS Ring-Vac + 90002 Filter wi. auto drain + 90009 Reg. wi. gage | 5" | $5,736.00 |
| More Information or Buy Here |
| Hose for Air Operated Conveyor | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 39999H10 | 10 foot clear reinforced PVC for Standard Ring Vacs - 1/2" | 1/2" | $41.00 |
| 39999H20 | 20 foot clear reinforced PVC for Standard Ring Vacs - 1/2" | 1/2" | $70.00 |
| 39999H30 | 30 foot clear reinforced PVC for Standard Ring Vacs - 1/2" | 1/2" | $100.00 |
| 39999H40 | 40 foot clear reinforced PVC for Standard Ring Vacs - 1/2" | 1/2" | $126.00 |
| 39999H50 | 50 foot clear reinforced PVC for Standard Ring Vacs - 1/2" | 1/2" | $151.00 |
| 30000H10 | 10 foot clear reinforced PVC for Standard Ring Vacs - 3/4" | 3/4" | $57.00 |
| 30000H20 | 20 foot clear reinforced PVC for Standard Ring Vacs - 3/4' | 3/4" | $89.00 |
| 30000H30 | 30 foot clear reinforced PVC for Standard Ring Vacs - 3/4" | 3/4" | $123.00 |
| 30000H40 | 40 foot clear reinforced PVC for Standard Ring Vacs - 3/4" | 3/4" | $156.00 |
| 30000H50 | 50 foot clear reinforced PVC for Standard Ring Vacs - 3/4" | 3/4" | $186.00 |
| 30001H10 | 10 foot clear reinforced PVC for Standard Ring Vacs - 1" | 1" | $63.00 |
| 30001H20 | 20 foot clear reinforced PVC for Standard Ring Vacs - 1" | 1" | $100.00 |
| 30001H30 | 30 foot clear reinforced PVC for Standard Ring Vacs - 1" | 1" | $138.00 |
| 30001H40 | 40 foot clear reinforced PVC for Standard Ring Vacs - 1" | 1" | $174.00 |
| 30001H50 | 50 foot clear reinforced PVC for Standard Ring Vacs - 1" | 1" | $216.00 |
| 30002H10 | 10 foot clear reinforced PVC for Standard Ring Vacs - 1-1/4" | 1-1/4" | $67.00 |
| 30002H20 | 20 foot clear reinforced PVC for Standard Ring Vacs - 1-1/4" | 1-1/4" | $109.00 |
| 30002H30 | 30 foot clear reinforced PVC for Standard Ring Vacs - 1-1/4" | 1-1/4" | $155.00 |
| 30002H40 | 40 foot clear reinforced PVC for Standard Ring Vacs - 1-1/4" | 1-1/4" | $196.00 |
| 30002H50 | 50 foot clear reinforced PVC for Standard Ring Vacs - 1-1/4" | 1-1/4" | $234.00 |
| 30003H10 | 10 foot clear reinforced PVC for Standard Ring Vacs - 1-1/2" | 1-1/2" | $84.00 |
| 30003H20 | 20 foot clear reinforced PVC for Standard Ring Vacs - 1-1/2" | 1-1/2" | $146.00 |
| 30003H30 | 30 foot clear reinforced PVC for Standard Ring Vacs - 1-1/2" | 1-1/2" | $197.00 |
| 30003H40 | 40 foot clear reinforced PVC for Standard Ring Vacs - 1-1/2" | 1-1/2" | $257.00 |
| 30003H50 | 50 foot clear reinforced PVC for Standard Ring Vacs - 1-1/2" | 1-1/2" | $314.00 |
| 30004H10 | 10 foot clear reinforced PVC for Standard Ring Vacs - 2" | 2" | $107.00 |
| 30004H20 | 20 foot clear reinforced PVC for Standard Ring Vacs - 2" | 2" | $192.00 |
| 30004H30 | 30 foot clear reinforced PVC for Standard Ring Vacs - 2" | 2" | $273.00 |
| 30004H40 | 40 foot clear reinforced PVC for Standard Ring Vacs - 2" | 2" | $357.00 |
| 30004H50 | 50 foot clear reinforced PVC for Standard Ring Vacs - 2" | 2" | $441.00 |
| More Information or Buy Here |
| Hose Clamps For Ring Vac Hose | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 39999CLMP | Hose clamp for 1/2" hose - 304 stainless | 9/16" inch to 1" | $5.00 |
| 30000CLMP | Hose clamp for 3/4" hose - 304 stainless | 11/16" inch to 1-1/4" | $5.20 |
| 30001CLMP | Hose clamp for 1" hose - 304 stainless | 13/16" inch to 1-1/2" | $4.30 |
| 30002CLMP | Hose clamp for 1-1/4" hose - 304 stainless | 13/16" inch to 1-3/4" | $5.50 |
| 30003CLMP | Hose clamp for 1-1/2" hose - 304 stainless | 1-1/16" inch to 2" | $5.70 |
| 30004CLMP | Hose clamp for 2" hose - 304 stainless | 1-9/16" inch to 2-1/2" | $6.00 |
| More Information or Buy Here |
- Overview
-
Product Overview
Nex Flow® Ring Vac® air operated conveyors come in a variety of sizes,materials, and configurations. Anodized aluminum versions from ½” to 3” standard size (and larger for special applications on request) are used to convey all sorts of materials over large distances, both vertical and horizontal. 304 stainless and 316L stainless versions are used for food grade and pharmaceutical applications and for use in high temperature and corrosive environments.
As these units do use a significant amount of compressed air, they are best applied where the air is available and in particular, intermittent use applications. Some applications only require low pressure to operate, minimizing air use. The Ring Vac® consists of a body, a generator (which creates the venturi effect), and a cap. The unit can be dismantled and easily cleaned if necessary.
Common applications include hopper loading (resin in the plastic industry, bottle caps in bottling), material conveying of all sorts, waste and trim removal, transferring parts from one location to another, chip removal, tensioning fiber, and in filling operations.
The regular Nex Flow® Ring Vac® air operated conveyors can be clamped to standard pipe and hose. Threaded versions can be threaded onto regular threaded pipe sizes. 316L stainless Nex Flow® Ring Vac® units with sanitary flanges are available for sanitary systems.
The actual rate material is conveyed is governed by the size, the mass, and the shape of the part to be moved along with the height, length, and number of bends in the system. Nex Flow® personnel and their trained application engineers worldwide can assist in determining the best size. One special version of the air operated conveyor is the XSPC pneumatic conveyor. This unit is specially designed to convey materials which might clog the system. One example is conveying bunched up textiles which can clump together and get stuck in a regular Ring Vac® system. The XSPC can convey such material without clogging.
The data required to help choose the correct model are as follows: the diameter or maximum dimensions of the part to be conveyed, the diameter of the hose or pipe used to convey the material (if already chosen), the weight or volume rate of conveying desired, and the material of the Ring Vac® .
Special Nex Flow® Ring Vac® units can be made to retrofit existing machinery. As mentioned, there are units available in 316L stainless steel with sanitary flanges. Other styles of flanged units can be manufactured in all sorts of material. For example, special Ring Vac® units, flanged, were made of Teflon for an application where corrosive gases had to be vented in a scrubber application.
Apart from the Ring Vac® units and the XSPC version, Nex Flow® produces some special products which utilize this technology: the Blind Hole cleaning system, and the X-stream® Hand Vac®.
Applications
- Hopper loading
- Fiber tensioning
- Material conveying
- Waste/trim removal
- Chip removal
- Part transfer
- Filling operations
- Features
-
Features / Advantages
- Compact
- Quiet
- No moving parts
- Fits standard hose or tube
- Aluminum or stainless steel
- High throughput capability
- Videos
-
Videos
Ring-Vac® compressed air conveying system – Compressed air enters at point (A) into an annular plenum chamber and is injected into the throat of the unit though directed nozzles. These jets of compressed air create a vacuum at the inlet (C) which draws in material and accelerates it through the unit and out at (D) conveying the material over a great vertical or horizontal distance.
- Specs
-
Specifications
Air Conveyors – Ring-Vac® Pneumatic Conveying Systems are available in coated Aluminium, stainless steel and in high temperature stainless steel for high temperature applications. Note: All our stainless steel high temperature Ring-Vac units are rated to 1200ºF (649ºC)
Special materials can be utilized for unique applications. If greater conveying force is required the conveying “generator” can be machined for higher capacities.
Model Number Material of Construction Outside Diameter (Dimension “A” Hose Diameter) 39998 Aluminium 3/8″ 39999 Aluminium 1/2″ 30000 Aluminium 3/4″ 30001 Aluminium 1″ 30002 Aluminium 1-1/4″ 30003 Aluminium 1-1/2″ 30004 Aluminium 2″ 30005 Aluminium 2 1/2″ 30006 Aluminium 3″ 30007 Aluminium 4″ 30008 Aluminium 5″ 39998S Stainless Steel 3/8″ 39999S Stainless Steel 1/2″ 30000S Stainless Steel 3/4″ 30001S Stainless Steel 1″ 30002S Stainless Steel 1-1/4″ 30003S Stainless Steel 1-1/2″ 30004S Stainless Steel 2″ 30005S Stainless Steel 2 1/2″ 30006S Stainless Steel 3″ 30007S Stainless Steel 4″ 30008S Stainless Steel 5″ 39998HTS High Temperature Stainless Steel 3/8″ 39999HTS High Temperature Stainless Steel 1/2″ 30000HTS High Temperature Stainless Steel 3/4″ 30001HTS High Temperature Stainless Steel 1″ 30002HTS High Temperature Stainless Steel 1-1/4″ 30003HTS High Temperature Stainless Steel 1-1/2″ 30004HTS High Temperature Stainless Steel 2″ 30005HTS High Temperature Stainless Steel 2 1/2″ 30006HTS High Temperature Stainless Steel 3″ 30007HTS High Temperature Stainless Steel 4″ 30008HTS High Temperature Stainless Steel 5″ 30001T Threaded Aluminum 1″ NPT 30002T Threaded Aluminum 1-1/4″ NPT 30003T Threaded Aluminum 1-1/2″ NPT 30004T Threaded Aluminum 2″ NPT 30001TS Threaded Stainless Steel 1″ NPT 30002TS Threaded Stainless Steel 1-1/4″ NPT 30003TS Threaded Stainless Steel 1-1/2″ NPT 30004TS Threaded Stainless Steel 2″ NPT 30006TS Threaded Stainless Steel 3″ NPT 30000S-316L 316L Stainless Steel 3/4″ 30001S-316L 316L Stainless Steel 1″ 30002S-316L 316L Stainless Steel 1-1/4″ 30003S-316L 316L Stainless Steel 1-1/2″ 30004S-316L 316L Stainless Steel 2″ 30006S-316L 316L Stainless Steel 3″ 30000HTS-316L High Temperature 316L Stainless Steel 3/4″ 30001HTS-316L High Temperature 316L Stainless Steel 1″ 30002HTS-316L High Temperature 316L Stainless Steel 1-1/4″ 30003HTS-316L High Temperature 316L Stainless Steel 1-1/2″ 30004HTS-316L High Temperature 316L Stainless Steel 2″ 30006HTS-316L High Temperature 316L Stainless Steel 3″ NPT Adaptors Available Upon Request
** STAINLESS STEEL IS 303/304 STAINLESS UNLESS OTHERWISE INDICATED
- Dimensions
-
Dimensions
PART NO. (Aluminium & high temperature stainless steel) A IN (MM) B IN (MM) C IN (MM) D IN (MM) E IN (MM) F IN (MM) G IN (MM) H IN (MM) I IN (MM) J IN (MM) K IN (MM) L* 39998
39998S
39998HTS0.375” (10.0) 0.63″ (16.0) 0.63″ (16.0) 2.18″ (65.0) 1.00″ (25.0) 0.19″ (5.0) N/A N/A N/A N/A N/A 1/8″ NPT 39999
39999S
39999HTS0.50″ (13.0) 0.75″ (19.0) 0.75″ (25.4) 2.62″ (19.0) 1.25″ (32.0) 0.31″ (8.0) N/A N/A N/A N/A N/A 1/8″ NPT 30000
30000S
30000HTS
30000S-316L
30000HTS-316L0.75″ (19.0) 1.00″ (25.5) 1.00″ (25.5) 3.94″ (100) 1.95″ (49.5) 0.55″ (14.0) 1.92″ (48.7) 0.95″ (15.0) 0.39″ (10.0) 1.18″ (30.0) 1.97″ (50.0) 1/4″ NPT 30001
30001S
30001T
30001TS
3001HTS
3001THTS
30001S-316L
30001HST-316L1.00” (25.4) 1.38” (35.1) 1.50” (38.1) 4.88” (124) 2.24” (56.8) 0.75” (19.0) 2.17” (55.0) 0.73” (18.5) 0.39” (10.0) 1.58” (40) 1.97” (50.0) ¼” NPT 30002
30002S
30002T
30002TS
30002HTS
30002THTS
30002S-316L
30002HTS-316L1.25” (31.8) 1.38” (35.1) 1.50” (38.1) 4.88” (124.0) 2.49” (63.2) 1.00” (25.4) 2.21” (56.3) 0.73” (18.5) 0.39” (10.0) 1.77” (45) 2.17” (55.0) ¼” NPT 30003
30003S
30003T
30003TS
30003HTS
30003THTS
30003S-316L
30003HTS-316L1.50” (38.1) 1.38” (35.1) 1.50” (38.1) 4.875” (124) 2.75” (69.9) 1.125” (28.6) 2.15” (54.5) 0.89” (22.5) 0.39” (10.0) 1.58” (40) 1.97” (50.0) 3/8” NPT 30004
30004S
30004T
30004TS
30004HTS
30004THTS
30004S-316L
30004HTS-316L2.00” (50.8) 1.38” (35.1) 1.5” (38.1) 4.88” (124.0) 3.21” (81.6) 1.75” (44.5) 2.39” (60.7) 1.18” (30) 0.39” (10.0) 1.58” (40) 1.97” (50.0) 3/8” NPT 30005
30005
30005S
30005HTS2.5” (63.5) 1.38” (35.1) 1.5” (38.1) 5.29” (134.5) 3.94” (100.0) 2.19” (55.6) N/A N/A N/A N/A N/A 3/8” NPT 30006
30006S
30006TS
30006HTS
30006THTS
30006S-316L
30006HTS-316L3.0” (76.2) 1.58” (40) 1.58” (40) 5.59” (142.0) 4.33” (110.0) 2.68” (68.0) N/A N/A N/A N/A N/A 1/2″ NPT 30007
30007S
30007HTS
30007S-316L
30007HTS-316L4.0” (101.6) 1.7” (44.4) 1.7” (44.4) 5.6” (142.9) 5.2” (133.3) 3.7” (93.6) N/A N/A N/A N/A N/A 1/2″ NPT 30008
30008S
30008HTS
30008S-316L
30008HTS-316L5.0” (127.0) 1.7” (44.4) 1.7” (44.4) 5.6” (142.9) 6.2” (158.7) 4.7” (119.0) N/A N/A N/A N/A N/A 1/2″ NPT BSP adaptors supplied upon request free of charge.
- Performance
-
Performance
MODEL Size Outside Diameterinches (mm) Air Consumption SCFM at 80 PSIG (SLPM at 5.5 BAR) Vacuum inches H2O (KPA) 39998 39998S 39998HTS 3/8″ (10mm) 5.6 (158) -120 (-29.9) 39999 39999S 39999HTS 1/2″ (13mm) 7 (198) -100 (-24.9) 30000 30000S 30000HTS 30000S-316L 30000HTS-316L 3/4″ (19mm) 11 (303) -72 (-18) 30001 30001S 30001T 30001TS 30001HTS 30001THTS 30001S-316L 30001HST-316L 1″ (25mm) 15 (415) -42 (-11) 30002 30002S 30002T 30002TS 30002SHTS 30002HTS 30002S-316L 30002HTS-316L 1 1/4 ” (32mm) 26 (730) -42 (-11) 30003TS 30003THTS 30003THTS 30003THTS 30003S-316L 30003HTS-316L 1-1/2″ (38mm) 33 (932) -39 (-9) 30004 30004S 30004T 30004TS 30004THTS 30004HTS 30004S-316L 30004HTS-316L 2″ (51mm) 45 (1270) -28 (-7) 30005 30005S 30005HTS 2 1/2″ (63.5mm) 58.5 (1655) -23.5 (-6) 30006 30006S 30006HTS 30006TS 30006THTS 30006S-316L 30006HTS-316L 3″ (76mm) 69 (1940) -14.7 (-4) 30007 30007S 30007HTS 30007S-316L 30007HTS-316L 4″ (101.6mm) 95 (2690) -13.6 (-3.4) 30008 30008S 30008HTS 30008S-316L 30008HTS-316L 5″ (127mm) 128 (3625) -10.5 (-2.6) - Pricing
-
Aluminum Ring Vac™ PART NO. DESCRIPTION SIZE PRICE US DOLLARS 39998 Aluminum Ring-Vac Only 3/8″ $108.00 39999 Aluminum Ring-Vac Only 1/2″ $112.00 30000 Aluminum Ring-Vac Only 3/4″ $120.00 30001 Aluminum Ring-Vac Only 1″ $132.00 30002 Aluminum Ring-Vac Only 1-1/4″ $148.00 30003 Aluminum Ring-Vac Only 1-1/2″ $181.00 30004 Aluminum Ring-Vac Only 2″ $214.00 30005 Aluminum Ring-Vac Only 2-1/2″ $313.00 30006 Aluminum Ring-Vac Only 3″ $492.00 30007 Aluminum Ring-Vac Only 4″ $694.00 30008 Aluminum Ring-Vac Only 5″ $915.00 31998 Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 3/8″ $233.00 31999 Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 1/2″ $237.00 31000 Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 3/4″ $245.00 31001 Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 1″ $257.00 31002 Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 1-14″ $273.00 31003 Aluminum Ring-Vac plus Filter with Auto Drain Model 90004 1-1/2″ $306.00 31004 Aluminum Ring-Vac plus Filter with Auto Drain Model 90001 2″ $339.00 31005 Aluminum Ring-Vac plus Filter with Auto Drain Model 90001 2-1/2″ $438.00 31006 Aluminum Ring-Vac plus Filter with Auto Drain Model 90002 3″ $717.00 31007 Aluminum Ring-Vac plus Filter with Auto Drain Model 90002 4″ $919.00 31008 Aluminum Ring-Vac plus Filter with Auto Drain Model 90002 5″ $1,140.00 32998 Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 3/8″ $308.00 32999 Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 1/2″ $312.00 32000 Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 3/4″ $320.00 32001 Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 1″ $332.00 32002 Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 1-14″ $348.00 32003 Aluminum Ring-Vac + filter 90004 + reg. with gage model 90008 1-1/2″ $381.00 32004 Aluminum Ring-Vac + filter 90001 + reg. with gage model 90008 2″ $414.00 32005 Aluminum Ring-Vac + filter 90001 + reg. with gage model 90008 2-1/2″ $513.00 32006 Aluminum Ring-Vac + filter 90002 + reg. with gage model 90009 3″ $827.00 32007 Aluminum Ring-Vac + filter 90002 + reg. with gage model 90009 4″ $1,029.00 32008 Aluminum Ring-Vac + filter 90002 + reg. with gage model 90009 5″ $1,250.00 30001T Threaded Aluminum Ring-Vac Only 1″ $170.00 30002T Threaded Aluminum Ring-Vac Only 1-1/4″ $210.00 30003T Threaded Aluminum Ring-Vac Only 1-1/2″ $260.00 30004T Threaded Aluminum Ring-Vac Only 2″ $310.00 31001T Threaded Al. Ring-Vac plus Filter with Auto Drain Model 90004 1″ $295.00 31002T Threaded Al. Ring-Vac plus Filter with Auto Drain Model 90004 1-14″ $335.00 31003T Threaded Al. Ring-Vac plus Filter with Auto Drain Model 90004 1-1/2″ $385.00 31004T Threaded Al. Ring-Vac plus Filter with Auto Drain Model 90001 2″ $435.00 32001T Thr. Al. Ring-Vac + filter 90004 + reg. with gage model 90008 1″ $370.00 32002T Thr. Al. Ring-Vac + filter 90004 + reg. with gage model 90008 1-14″ $410.00 32003T Thr. Al. Ring-Vac + filter 90004 + reg. with gage model 90008 1-1/2″ $460.00 32004T Thr. Al. Ring-Vac + filter 90001 + reg. with gage model 90008 2″ $510.00 More Information or Buy Here Stainless Steel Ring Vac™ PART NO. DESCRIPTION SIZE PRICE US DOLLARS 39998S Stainless Steel Ring-Vac Only 3/8″ $285.00 39999S Stainless Steel Ring-Vac Only 1/2″ $295.00 30000S Stainless Steel Ring-Vac Only 3/4″ $345.00 30001S Stainless Steel Ring-Vac Only 1″ $365.00 30002S Stainless Steel Ring-Vac Only 1-1/4″ $398.00 30003S Stainless Steel Ring-Vac Only 1-1/2″ $428.00 30004S Stainless Steel Ring-Vac Only 2″ $450.00 30005S Stainless Steel Ring-Vac Only 2-1/2″ $800.00 30006S Stainless Steel Ring-Vac Only 3″ $1,450.00 30007S Stainless Steel Ring-Vac Only 4″ $2,200.00 30008S Stainless Steel Ring-Vac Only 5″ $3,800.00 31998S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 3/8″ $410.00 31999S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 1/2″ $420.00 31000S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 3/4″ $470.00 31001S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 1″ $490.00 31002S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 1-14″ $523.00 31003S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90004 1-1/2″ $553.00 31004S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90001 2″ $575.00 31005S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90001 2-1/2″ $925.00 31006S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90002 3″ $1,675.00 31007S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90002 4″ $2,425.00 31008S Stainless Steel Ring-Vac plus Filter with Auto Drain Model 90002 5″ $4,025.00 32998S Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 3/8″ $485.00 32999S Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 1/2″ $495.00 32000S Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 3/4″ $545.00 32001S Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 1″ $565.00 32002S Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 1-14″ $598.00 32003S Stainless Ring-Vac + filter 90004 + reg. with gage model 90008 1-1/2″ $628.00 32004S Stainless Ring-Vac + filter 90001 + reg. with gage model 90008 2″ $650.00 32005S Stainless Ring-Vac + filter 90001 + reg. with gage model 90008 2-1/2″ $1,000.00 32006S Stainless Ring-Vac + filter 90002 + reg. with gage model 90009 3″ $1,785.00 32007S Stainless Ring-Vac + filter 90002 + reg. with gage model 90009 4″ $2,535.00 32008S Stainless Ring-Vac + filter 90002 + reg. with gage model 90009 5″ $4,135.00 30001TS Threaded Stainless Steel Ring-Vac Only 1″ $485.00 30002TS Threaded Stainless Steel Ring-Vac Only 1-1/4″ $520.00 30003TS Threaded Stainless Steel Ring-Vac Only 1-1/2″ $575.00 30004TS Threaded Stainless Steel Ring-Vac Only 2″ $620.00 30006TS Threaded Stainless Steel Ring-Vac Only 3″ $1,700.00 31001TS Threaded SS Ring-Vac plus Filter with Auto Drain Model 90004 1″ $610.00 31002TS Threaded SS Ring-Vac plus Filter with Auto Drain Model 90004 1-14″ $645.00 31003TS Threaded SS Ring-Vac plus Filter with Auto Drain Model 90004 1-1/2″ $700.00 31004TS Threaded SS Ring-Vac plus Filter with Auto Drain Model 90001 2″ $745.00 31006TS Threaded SS Ring-Vac plus Filter with Auto Drain Model 90002 3″ $1,925.00 32001TS Thr. SS. Ring-Vac + filter 90004 + reg. with gage model 90008 1″ $685.00 32002TS Thr. SS. Ring-Vac + filter 90004 + reg. with gage model 90008 1-14″ $720.00 32003TS Thr. SS. Ring-Vac + filter 90004 + reg. with gage model 90008 1-1/2″ $775.00 32004TS Thr. SS. Ring-Vac + filter 90001 + reg. with gage model 90008 2″ $820.00 32006TS Thr. SS. Ring-Vac + filter 90002 + reg. with gage model 90009 3″ $2,035.00 39998HTS Hi Temp. Stainless Steel Ring-Vac Only 3/8″ $440.00 39999HTS Hi Temp. Stainless Steel Ring-Vac Only 1/2″ $455.00 30000HTS Hi Temp. Stainless Steel Ring-Vac Only 3/4″ $475.00 30001HTS Hi Temp. Stainless Steel Ring-Vac Only 1″ $545.00 30002HTS Hi Temp. Stainless Steel Ring-Vac Only 1-1/4″ $595.00 30003HTS Hi Temp. Stainless Steel Ring-Vac Only 1-1/2″ $645.00 30004HTS Hi Temp. Stainless Steel Ring-Vac Only 2″ $705.00 30005HTS Hi Temp. Stainless Steel Ring-Vac Only 2-1/2″ $1,015.00 30006HTS Hi Temp. Stainless Steel Ring-Vac Only 3″ $1,790.00 30007HTS Hi Temp. Stainless Steel Ring-Vac Only 4″ $2,420.00 30008HTS Hi Temp. Stainless Steel Ring-Vac Only 5″ $3,820.00 31998HTS Hi Temp. SS. Ring-Vac + filter 90004 with auto drain 3/8″ $565.00 31999HTS Hi Temp. SS. Ring-Vac + filter 90004 with auto drain 1/2″ $580.00 31000HTS Hi Temp. SS. Ring-Vac + filter 90004 with auto drain 3/4″ $600.00 31001HTS Hi Temp. SS. Ring-Vac + filter 90004 with auto drain 1″ $670.00 31002HTS Hi Temp. SS. Ring-Vac + filter 90004 with auto drain 1-14″ $720.00 31003HTS Hi Temp. SS. Ring-Vac + filter 90004 with auto drain 1-1/2″ $770.00 31004HTS Hi Temp. SS. Ring-Vac + filter 90001 with auto drain 2″ $830.00 31005HTS Hi Temp. SS. Ring-Vac + filter 90001 with auto drain 2-1/2″ $1,140.00 31006HTS Hi Temp. SS. Ring-Vac + filter 90002 with auto drain 3″ $2,015.00 31007HTS Hi Temp. SS. Ring-Vac + filter 90002 with auto drain 4″ $2,645.00 31008HTS Hi Temp. SS. Ring-Vac + filter 90002 with auto drain 5″ $4,045.00 32998HTS Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 3/8″ $640.00 32999HTS Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 1/2″ $655.00 32000HTS Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 3/4″ $675.00 32001HTS Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 1″ $745.00 32002HTS Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 1-14″ $795.00 32003HTS Hi Temp. SS Ring-Vac + filter 90004+reg with gage Model 90008 1-1/2″ $845.00 32004HTS Hi Temp. SS Ring-Vac + filter 90001+reg with gage Model 90008 2″ $905.00 32005HTS Hi Temp. SS Ring-Vac + filter 90001+reg with gage Model 90008 2-1/2″ $1,215.00 32006HTS Hi Temp. SS Ring-Vac + filter 90002+reg with gage Model 90009 3″ $2,125.00 32007HTS Hi Temp. SS Ring-Vac + filter 90002+reg with gage Model 90009 4″ $2,755.00 32008HTS Hi Temp. SS Ring-Vac + filter 90002+reg with gage Model 90009 5″ $4,155.00 30001THTS Hi-Temp. Threaded Stainless Steel Ring-Vac Only 1″ $655.00 30002THTS Hi-Temp. Threaded Stainless Steel Ring-Vac Only 1-1/4″ $725.00 30003THTS Hi-Temp. Threaded Stainless Steel Ring-Vac Only 1-1/2″ $805.00 30004THTS Hi-Temp. Threaded Stainless Steel Ring-Vac Only 2″ $890.00 30006THTS Hi-Temp. Threaded Stainless Steel Ring-Vac Only 3″ $1,900.00 31001THTS Hi-Temp. Th. SS. Ring-Vac + filter 90004 with auto drain 1″ $780.00 31002THTS Hi-Temp. Th. SS. Ring-Vac + filter 90004 with auto drain 1-14″ $850.00 31003THTS Hi-Temp. Th. SS. Ring-Vac + filter 90004 with auto drain 1-1/2″ $930.00 31004THTS Hi-Temp. Th. SS. Ring-Vac + filter 90001 with auto drain 2″ $1,015.00 31006THTS Hi-Temp. Th. SS. Ring-Vac + filter 90002 with auto drain 3″ $2,125.00 32001THTS Hi-Temp. Th. SS. Ring-Vac + filter 90004 + reg with gage 90008 1″ $855.00 32002THTS Hi-Temp. Th. SS. Ring-Vac + filter 90004 + reg with gage 90008 1-14″ $925.00 32003THTS Hi-Temp. Th. SS. Ring-Vac + filter 90004 + reg with gage 90008 1-1/2″ $1,005.00 32004THTS Hi-Temp. Th. SS. Ring-Vac + filter 90001 + reg with gage 90008 2″ $1,090.00 32006THTS Hi-Temp. Th. SS. Ring-Vac + filter 90002 + reg with gage 90009 3″ $2,235.00 39000S Stainless Bracket for 30000 & 30000S - $30.00 39001S Stainless Bracket for 30001 & 30001S - $32.00 39002S Stainless Bracket for 30002 & 30002S - $34.00 39003S Stainless Bracket for 30003 & 30003S - $36.00 39004S Stainless Bracket for 30004 & 30004S - $38.00 39005S Stainless Bracket for 30005 & 30005S - $40.00 39006S Stainless Bracket for 30006 & 30006S - $45.00 39007S Stainless Bracket for 30007 & 30007S - $50.00 39008S Stainless Bracket for 30008 & 30008S - $55.00 More Information or Buy Here
316L Stainless Steel Ring Vac™ PART NO. DESCRIPTION SIZE PRICE US DOLLARS 30000S-316L 316L Stainless Steel Ring-Vac Only 3/4″ $590.00 30001S-316L 316L Stainless Steel Ring-Vac Only 1″ $650.00 30002S-316L 316L Stainless Steel Ring-Vac Only 1-1/4″ $720.00 30003S-316L 316L Stainless Steel Ring-Vac Only 1-1/2″ $790.00 30004S-316L 316L Stainless Steel Ring-Vac Only 2″ $850.00 30006S-316L 316L Stainless Steel Ring-Vac Only 3″ $2,050.00 30007S-316L 316L Stainless Steel Ring-Vac Only 4″ $2,950.00 30008S-316L 316L Stainless Steel Ring-Vac Only 5″ $5,200.00 31000S-316L 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain 3/4" $715.00 31001S-316L 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain 1" $775.00 31002S-316L 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain 1-1/4" $845.00 31003S-316L 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain 1-1/2" $915.00 31004S-316L 316L Stainless Steel Ring-Vac Only + 90001 Filter with auto drain 2" $975.00 31006S-316L 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain 3" $2,076.00 31007S-316L 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain 4" $2,976.00 31008S-316L 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain 5" $5,226.00 32000S-316L 316L SS Ring-Vac Only + 90004 Filter with auto drain+ 90008 Regulator with Gage 3/4" $790.00 32001S-316L 316L SS Ring-Vac Only + 90004 Filter with auto drain+ 90008 Regulator with Gage 1" $850.00 32002S-316L 316L SS Ring-Vac Only + 90004 Filter with auto drain+ 90008 Regulator with Gage 1-1/4" $920.00 32003S-316L 316L SS Ring-Vac Only + 90004 Filter with auto drain+ 90008 Regulator with Gage 1-1/2" $990.00 32004S-316L 316L SS Ring-Vac Only + 90001 Filter with auto drain+ 90008 Regulator with Gage 2" $1,050.00 32006S-316L 316L SS Ring-Vac Only + 90002 Filter with auto drain+ 90009 Regulator with Gage 3" $2,186.00 32007S-316L 316L SS Ring-Vac Only + 90002 Filter with auto drain+ 90009 Regulator with Gage 4" $3,086.00 32008S-316L 316L SS Ring-Vac Only + 90002 Filter with auto drain+ 90009 Regulator with Gage 5" $5,336.00 30000HTS-316L High Temperature 316L Stainless Steel Ring-Vac Only 3/4″ $900.00 30001HTS-316L High Temperature 316L Stainless Steel Ring-Vac Only 1″ $995.00 30002HTS-316L High Temperature 316L Stainless Steel Ring-Vac Only 1-1/4″ $1,100.00 30003HTS-316L High Temperature 316L Stainless Steel Ring-Vac Only 1-1/2″ $1,195.00 30004HTS-316L High Temperature 316L Stainless Steel Ring-Vac Only 2″ $1,300.00 30006HTS-316L High Temperature 316L Stainless Steel Ring-Vac Only 3″ $2,700.00 30007HTS-316L High Temperature 316L Stainless Steel Ring-Vac Only 4″ $3,500.00 30008HTS-316L High Temperature 316L Stainless Steel Ring-Vac Only 5″ $5,600.00 31000HTS-316L High Temp. 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain 3/4" $1,025.00 31001HTS-316L High Temp. 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain 1" $1,120.00 31002HTS-316L High Temp. 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain 1-1/4" $1,225.00 31003HTS-316L High Temp. 316L Stainless Steel Ring-Vac Only + 90004 Filter with auto drain 1-1/2" $1,320.00 31004HTS-316L High Temp. 316L Stainless Steel Ring-Vac Only + 90001 Filter with auto drain 2" $1,425.00 31006HTS-316L High Temp. 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain 3" $2,726.00 31007HTS-316L High Temp. 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain 4" $3,526.00 31008HTS-316L High Temp. 316L Stainless Steel Ring-Vac Only + 90002 Filter with auto drain 5" $5,626.00 32000HTS-316L High Temp. 316L SS Ring-Vac + 90004 Filter wi. auto drain + 90008 Reg. wi. gage 3/4" $1,100.00 32001HTS-316L High Temp. 316L SS Ring-Vac + 90004 Filter wi. auto drain + 90008 Reg. wi. gage 1" $1,195.00 32002HTS-316L High Temp. 316L SS Ring-Vac + 90004 Filter wi. auto drain + 90008 Reg. wi. gage 1-1/4" $1,300.00 32003HTS-316L High Temp. 316L SS Ring-Vac + 90004 Filter wi. auto drain + 90008 Reg. wi. gage 1-1/2" $1,395.00 32004HTS-316L High Temp. 316L SS Ring-Vac + 90001 Filter wi. auto drain + 90008 Reg. wi. gage 2" $1,500.00 32006HTS-316L High Temp. 316L SS Ring-Vac + 90002 Filter wi. auto drain + 90009 Reg. wi. gage 3" $2,836.00 32007HTS-316L High Temp. 316L SS Ring-Vac + 90002 Filter wi. auto drain + 90009 Reg. wi. gage 4" $3,636.00 32008HTS-316L High Temp. 316L SS Ring-Vac + 90002 Filter wi. auto drain + 90009 Reg. wi. gage 5" $5,736.00 More Information or Buy Here
Hose for Air Operated Conveyor PART NO. DESCRIPTION SIZE PRICE US DOLLARS 39999H10 10 foot clear reinforced PVC for Standard Ring Vacs - 1/2" 1/2" $41.00 39999H20 20 foot clear reinforced PVC for Standard Ring Vacs - 1/2" 1/2" $70.00 39999H30 30 foot clear reinforced PVC for Standard Ring Vacs - 1/2" 1/2" $100.00 39999H40 40 foot clear reinforced PVC for Standard Ring Vacs - 1/2" 1/2" $126.00 39999H50 50 foot clear reinforced PVC for Standard Ring Vacs - 1/2" 1/2" $151.00 30000H10 10 foot clear reinforced PVC for Standard Ring Vacs - 3/4" 3/4" $57.00 30000H20 20 foot clear reinforced PVC for Standard Ring Vacs - 3/4' 3/4" $89.00 30000H30 30 foot clear reinforced PVC for Standard Ring Vacs - 3/4" 3/4" $123.00 30000H40 40 foot clear reinforced PVC for Standard Ring Vacs - 3/4" 3/4" $156.00 30000H50 50 foot clear reinforced PVC for Standard Ring Vacs - 3/4" 3/4" $186.00 30001H10 10 foot clear reinforced PVC for Standard Ring Vacs - 1" 1" $63.00 30001H20 20 foot clear reinforced PVC for Standard Ring Vacs - 1" 1" $100.00 30001H30 30 foot clear reinforced PVC for Standard Ring Vacs - 1" 1" $138.00 30001H40 40 foot clear reinforced PVC for Standard Ring Vacs - 1" 1" $174.00 30001H50 50 foot clear reinforced PVC for Standard Ring Vacs - 1" 1" $216.00 30002H10 10 foot clear reinforced PVC for Standard Ring Vacs - 1-1/4" 1-1/4" $67.00 30002H20 20 foot clear reinforced PVC for Standard Ring Vacs - 1-1/4" 1-1/4" $109.00 30002H30 30 foot clear reinforced PVC for Standard Ring Vacs - 1-1/4" 1-1/4" $155.00 30002H40 40 foot clear reinforced PVC for Standard Ring Vacs - 1-1/4" 1-1/4" $196.00 30002H50 50 foot clear reinforced PVC for Standard Ring Vacs - 1-1/4" 1-1/4" $234.00 30003H10 10 foot clear reinforced PVC for Standard Ring Vacs - 1-1/2" 1-1/2" $84.00 30003H20 20 foot clear reinforced PVC for Standard Ring Vacs - 1-1/2" 1-1/2" $146.00 30003H30 30 foot clear reinforced PVC for Standard Ring Vacs - 1-1/2" 1-1/2" $197.00 30003H40 40 foot clear reinforced PVC for Standard Ring Vacs - 1-1/2" 1-1/2" $257.00 30003H50 50 foot clear reinforced PVC for Standard Ring Vacs - 1-1/2" 1-1/2" $314.00 30004H10 10 foot clear reinforced PVC for Standard Ring Vacs - 2" 2" $107.00 30004H20 20 foot clear reinforced PVC for Standard Ring Vacs - 2" 2" $192.00 30004H30 30 foot clear reinforced PVC for Standard Ring Vacs - 2" 2" $273.00 30004H40 40 foot clear reinforced PVC for Standard Ring Vacs - 2" 2" $357.00 30004H50 50 foot clear reinforced PVC for Standard Ring Vacs - 2" 2" $441.00 More Information or Buy Here Hose Clamps For Ring Vac Hose PART NO. DESCRIPTION SIZE PRICE US DOLLARS 39999CLMP Hose clamp for 1/2" hose - 304 stainless 9/16" inch to 1" $5.00 30000CLMP Hose clamp for 3/4" hose - 304 stainless 11/16" inch to 1-1/4" $5.20 30001CLMP Hose clamp for 1" hose - 304 stainless 13/16" inch to 1-1/2" $4.30 30002CLMP Hose clamp for 1-1/4" hose - 304 stainless 13/16" inch to 1-3/4" $5.50 30003CLMP Hose clamp for 1-1/2" hose - 304 stainless 1-1/16" inch to 2" $5.70 30004CLMP Hose clamp for 2" hose - 304 stainless 1-9/16" inch to 2-1/2" $6.00 More Information or Buy Here
