Product Overview

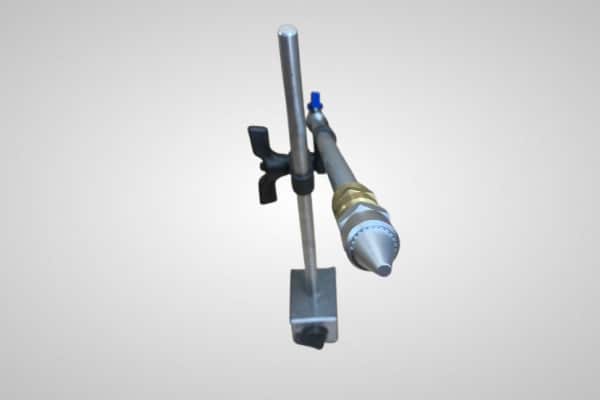

The Nex Flow® FLEXMOUNT SINGLE OUTLET mounting system is a secure mounting method to direct one blow-off product easily and securely to the target.
The FLEXMOUNT SINGLE OUTLET system is easily installed with flexibility in use.
When the customer needs to add an additional blow-off product, it often requires some mounting with brackets and the utilization of internal labor. This labor may be costly and in short supply and required in other areas of the factory delaying installation.
These assemblies utilize nozzles and jets for particular spot applications.
The FLEXMOUNT SINGLE OUTLET is a flexible mounting system providing a simple and easy-to-use method by directing one small blow-off product to the target saving labor and accelerating installation time and product use.
This is especially useful when requiring flexibility is necessary for the placement and direction of the nozzle or jet in potentially different applications in a factory production process.
This system is ideal for any new installation where nothing currently exists in the necessary location, and utilizing the blow-off product that needs to be used.
The FLEXMOUNT SINGLE OUTLET system uses one Air Edger or one air nozzle, whether the standard air nozzle or the patented Air Mag nozzle.
The units are suitable for using one Air Edger or one air nozzle, whether the standard air nozzles or the patented Air Mag air nozzles but may be upgraded by adding a two-outlet manifold and additional blow-off products from Nex Flow.
Nex Flow® Air Edgers are available in cast zinc and 316L stainless steel.
The standard air nozzles are made in anodized aluminum, 304 stainless steel, and 316L stainless versions.
The patented Air mag nozzles are in cast zinc and 316L stainless steel.
The FLEXMOUNT SINGLE OUTLET system is available in anodized aluminum or stainless steel.
The regular packages offered are in non-stainless assemblies and stainless steel assemblies.
The base of the mounting system is to secure the system easily, or you can use an optional magnetic base to mount the assembly.
A shutoff valve (brass for the aluminum systems and stainless steel for the stainless systems) is supplied to turn the flow on and off as needed manually.
An optional adjustable swivel may be added to the blow-off product attached to the FLEXMOUNT assembly, providing even more flexibility in the flow direction.
When adjusted, these adjustable swivels are locked into a secure position directing the particular blow-off product as needed.
The FLEXMOUNT SINGLE OUTLET is exceptionally versatile for small blow-off products when one nozzle or jet is required for a manufacturing application.
In addition to the standard packages offered, the assemblies can be modified by exchanging the nozzle or jet with another nozzle or jet.
Custom FLEXMOUNT systems can be provided on request, including multiple assembly packages.
Nex Flow®’s Consulting Services are available for addressing applications of these unique designs. Thus, shortening installation time and internal costs for improved productivity.
OPTIONS:
Features / Advantages
- Flexible and Durable/two versions available (aluminum and stainless steel)
- Easy usage and installation
- Optional Magnetic Base
- Optional Swivels for the blow off
- An optional shutoff valve for compressed air input
- Flexibility over a long range
- Designed for Factory Environments
Dimensions
FLEXMOUNT SYSTEM + AIR EDGER - NOTE can use only up to .016" shim size | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
19004A-47011-4 | 12" adjustability Aluminum Mounting System for Air Edger + Air Edger | - | $376.00 |
19004A-47011-8 | 12" adjustability Aluminum Mounting System for Air Edger + Air Edger | - | $376.00 |
19004A-47011-12 | 12" adjustability Aluminum Mounting System for Air Edger + Air Edger | - | $376.00 |
19004S-47011-316L-4 | 12" adjustability Stainless Steel Mounting System for Air Edger + Air Edger | - | $685.00 |
19004S-47011-316L-8 | 12" adjustability Stainless Steel Mounting System for Air Edger + Air Edger | - | $685.00 |
19004S-47011-316L-12 | 12" adjustability Stainless Steel Mounting System for Air Edger + Air Edger | - | $685.00 |
19004A-47011-4-M | 12" adj. Aluminum Mounting System for Air Edger + Air Edger + Mag Base | - | $536.00 |
19004A-47011-8-M | 12" adj. Aluminum Mounting System for Air Edger + Air Edger + Mag Base | - | $536.00 |
19004A-47011-12-M | 12" adj. Aluminum Mounting System for Air Edger + Air Edger + Mag Base | - | $536.00 |
19004S-47011-316L-4-M | 12" adj. Stainless Steel Mounting System for Air Edger + Air Edger + Mag base | - | $845.00 |
19004S-47011-316L-8-M | 12" adj. Stainless Steel Mounting System for Air Edger + Air Edger + Mag base | - | $845.00 |
19004S-47011-316L-12-M | 12" adj. Stainless Steel Mounting System for Air Edger + Air Edger + Mag base | - | $845.00 |
More Information or Buy Here |
FLEXMOUNT SYSTEM + AIR MAG NOZZLE | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
19004A-47004AMF | 12" adjustability Aluminum Mounting System for Air Mag Nozzle + Air Mag Nozzle | - | $347.00 |
19004S-47004AMFS | 12" adjustability Stainless Steel Mounting System for SS Air Mag Nozzle + Air Mag Nozzle | - | $661.00 |
19004A-47004AMF-M | 12" adj. Aluminum Mounting System for Air Mag Nozzle + Air Mag Nozzle + Mag Base | - | $507.00 |
19004S-47004AMFS-M | 12" adj. Stainless Steel Mounting System for Air Mag Nozzle + Air Mag Nozzle + Mag base | - | $821.00 |
More Information or Buy Here |
FLEXMOUNT SYSTEM + STANDARD NOZZLE | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
19004A-47004 | 12" adjustability Aluminum Mounting System for Std Air Nozzle + Nozzle | - | $327.00 |
19004S-47004S | 12" adjustability Stainless Mounting System for Std SS Air Nozzle + SS Nozzle | - | $605.00 |
19004S-47004S-316L | 12" adjustability Stainless Mounting System for Std 316L SS Air Nozzle + 316L SS Nozzle | - | $544.00 |
19004A-47004-M | 12" adjustability Aluminum Mounting System for Std Air Nozzle + Nozzle + Mag base | - | $487.00 |
19004S-47004S-M | 12" adjustability Stainless Mounting System for Std SS Air Nozzle + SS Nozzle + Mag base | - | $605.00 |
19004S-47004S-316L-M | 12" adjustability Stainless Mounting System for Std 316L SS Air Nozzle + 316L SS Nozzle + Mag base | - | $624.00 |
More Information or Buy Here |
Options and Spare Parts for Flexmount Systems | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
19004VM | Optional Magnetic Base | - | $160.00 |
90012MB | Brass Shutoff valve - 1/4" M-F | - | $35.00 |
90012MS | Stainless Shutoff valve - 1/4" M-F | - | $77.00 |
90053 | 1/4" NPT Stainless Steel Swivel Fitting | - | $64.00 |
More Information or Buy Here |
