Product Overview

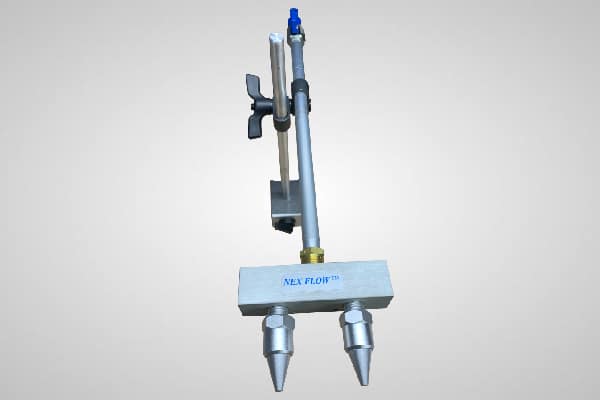

The Nex Flow® FLEXMOUNT DOUBLE OUTLET mounting system is a secure mounting method to direct two blow-off products easily and securely to the target.
The FLEXMOUNT DOUBLE OUTLET system is easily installed with flexibility in directing the blow-off assembly and combining blow-off products if necessary for the particular application.
When the customer needs to add an additional blow-off system, it often requires some mounting with brackets and the utilization of internal labor and the assembly issues may be compounded just by the use of two blow-off products. This labor may be in short supply and necessary elsewhere in the manufacturing operation which can complicate installation.
These assemblies utilize pairs of nozzles and/or jets for particular spot blow-off applications.
The FLEXMOUNT DOUBLE OUTLET is a flexible mounting system providing a simple and easy-to-use method by directing two small blow-off products to the target saving labor and accelerating installation time and use of the system.
This is especially useful when requiring flexibility is necessary for the placement and direction of the nozzle and/or jets in potentially different applications in a factory setting.
This system is ideal for any new installation where nothing currently exists in the application location, and utilizing the blow-off products to improve the production process.
The FLEXMOUNT DOUBLE OUTLET system normally uses two Air Edgers or two air nozzles, whether the standard air nozzle or the patented Air Mag nozzle although blow-off product types can be mixed if required.
The units are suitable for using two Air Edgers or two air nozzles, whether the standard air nozzles or the patented Air Mag air nozzles or a combination of the blow-off types.
The system can be converted to a single outlet by removing the two-outlet manifold and one blow-off product.
Nex Flow® Air Edgers are available in cast zinc and 316L stainless steel.
The standard air nozzles are made in anodized aluminum, 304 stainless steel, and 316L stainless versions.
The patented Air mag nozzles are in cast zinc and 316L stainless steel.
The FLEXMOUNT DOUBLE OUTLET system is available in anodized aluminum or stainless steel.
The regular packages offered are in non-stainless assemblies and stainless steel assemblies.
The base of the mounting system is to secure the system easily, or you can use an optional magnetic base to mount the assembly.
A shutoff valve (brass for the aluminum systems and stainless steel for the stainless systems) is supplied to turn the flow on and off as needed manually.
An optional adjustable swivel may be added to the blow-off product attached to the FLEXMOUNT assembly, providing even more flexibility in the flow direction.
When adjusted, these adjustable swivels are locked into a secure position directing the particular blow-off product as needed.
The FLEXMOUNT DOUBLE OUTLET is exceptionally versatile for small blow-off products when one nozzle or jet is required for a manufacturing application.
In addition to the standard packages offered, the assemblies can be modified by exchanging the nozzle or jet with another nozzle or jet.
Custom FLEXMOUNT systems can be provided on request, including multiple assembly packages.
Nex Flow®’s Consulting Services are available for addressing applications of these unique designs. Thus, shortening installation time and internal costs for improved productivity.
OPTIONS:
Features / Advantages
- Flexible and Durable/two versions available (aluminum and stainless steel)
- Easy usage and installation
- Optional Magnetic Base
- Optional Swivels for the blow off
- An optional shutoff valve for compressed air input
- Flexibility over a long range
- Designed for Factory Environments

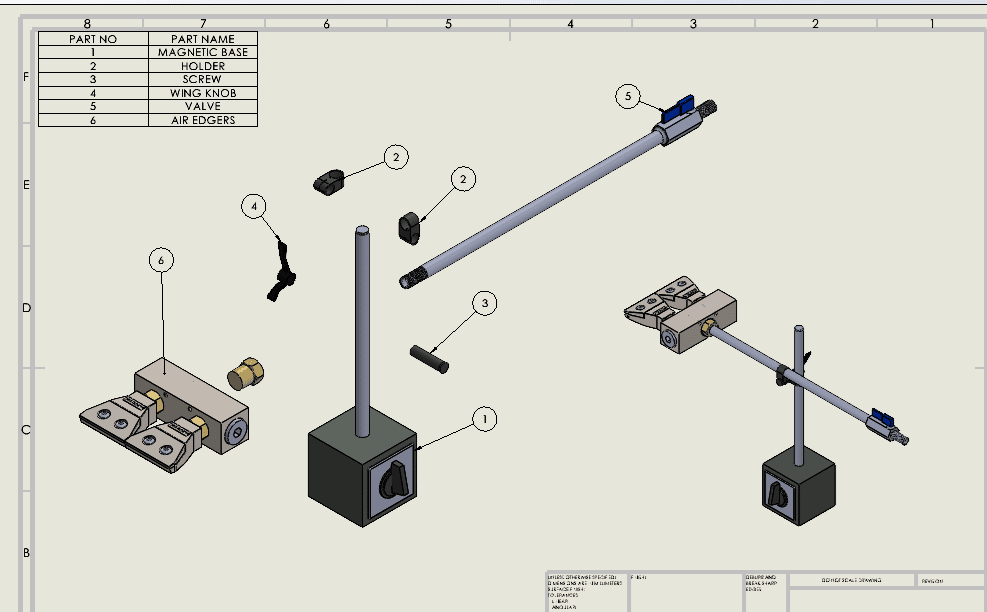

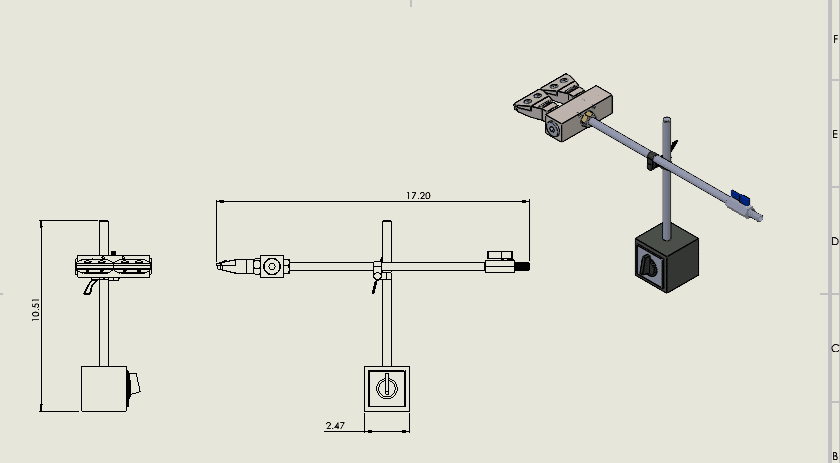

Dimensions
FLEXMOUNT SYSTEM + DOUBLE AIR EDGER - can use only up to .016" shim size | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
D19004A-47011-4 | 12" adj. Al. Mtg System for Air Edger + Vintage 2 outlet Manifold + 2 Air Edgers | - | $610.00 |
D19004A-47011-8 | 12" adj. Al. Mtg System for Air Edger + Vintage 2 outlet Manifold + 2 Air Edgers | - | $610.00 |
D19004A-47011-12 | 12" adj. Al. Mtg System for Air Edger + Vintage 2 outlet Manifold + 2 Air Edgers | - | $610.00 |
D19004S-47011-316L-4 | 12" adj. SS Mtg stem for Air Edger + Vintage 2 outlet S Manifold + 2 SS Air Edgers | - | $1,128.00 |
D19004S-47011-316L-8 | 12" adj. SS Mtg stem for Air Edger + Vintage 2 outlet S Manifold + 2 SS Air Edgers | - | $1,128.00 |
D19004S-47011-316L-12 | 12" adj. SS Mtg stem for Air Edger + Vintage 2 outlet S Manifold + 2 SS Air Edgers | - | $1,128.00 |
D19004A-47011-4-M | 12" adj. Al. Mtg System for Air Edger + Vintage 2 outlet Manifold + 2 Air Edgers + Mag base | - | $770.00 |
D19004A-47011-8-M | 12" adj. Al. Mtg System for Air Edger + Vintage 2 outlet Manifold + 2 Air Edgers + Mag base | - | $770.00 |
D19004A-47011-12-M | 12" adj. Al. Mtg System for Air Edger + Vintage 2 outlet Manifold + 2 Air Edgers + Mag base | - | $770.00 |
D19004S-47011-316L-4-M | 12" adj. SS Mtg stem for Air Edger + Vintage 2 outlet S Manifold + 2 SS Air Edgers + Mag base | - | $1,288.00 |
D19004S-47011-316L-8-M | 12" adj. SS Mtg stem for Air Edger + Vintage 2 outlet S Manifold + 2 SS Air Edgers + Mag base | - | $1,288.00 |
D19004S-47011-316L-12-M | 12" adj. SS Mtg stem for Air Edger + Vintage 2 outlet S Manifold + 2 SS Air Edgers + Mag base | - | $1,288.00 |
More Information or Buy Here |
FLEXMOUNT SYSTEM + DOUBLE AIR MAG NOZZLE | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
D19004A-47004AMF | 12" adj. Al. Mtg System for Air Mag Nozzle + Vintage 2 outlet Manifold + 2 Air Mag Nozzles | - | $552.00 |
D19004S-47004AMFS | 12" adj. SS Mtg stem for SS Air Mag Nozzle + Vintage 2 outlet SS Manifold + 2 SS Air Mag Nozzles | - | $1,080.00 |
D19004A-47004AMF-M | 12" adj. Al. Mtg System for Air Mag Nzzl+ Vintage 2 outlet Manifold + 2 Air Mag Nozzles + Mag Base | - | $712.00 |
D19004S-47004AMFS-M | 12" adj. SS Mtg Sys, for SS Air Mag Nzzl + Vintage 2 outlet SS Man.+ 2 SS Air Mag Nzzle + Mag Base | - | $1,240.00 |
More Information or Buy Here |
FLEXMOUNT SYSTEM + DOUBLE STANDARD NOZZLE | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
D19004A-47004 | 12" adj. Al. Mtg System for Std Air Nozzle + Vintage 2 outlet Manifold + 2 Std Air Nozzles | - | $512.00 |
D19004S-47004S | 12" adj. SS Mtg stem for Std Air Nozzle + Vintage 2 outlet SS Manifold + 2 SS Std Air Nozzles | - | $968.00 |
D19004S-47004S-316L | 12" adj. SS Mtg stem for Std Air Nozzle + Vintage 2 outlet SS Manifold + 2 316 L SS Std Air Nozzles | - | $1,026.00 |
D19004A-47004 | 12" adj. Al. Mtg System for Std Air Nozzle + Vintage 2 outlet Manifold + 2 Std Air Nozzles + Mag base | - | $672.00 |
D19004S-47004S | 12" adj. SS Mtg stem for Std Air Nzzl + Vintage 2 outlet SS Man. + 2 SS Std Air Nozzles +Mag base | - | $1,128.00 |
D19004S-47004S-316L | 12" adj. SS Mtg stem for Std Air Nzzl + Vintage 2 outlet SS Man. + 2 316 L SS Std Air Nzzls + Mag bs | - | $1,186.00 |
More Information or Buy Here |
Options and Spare Parts for Flexmount Systems | |||
---|---|---|---|
PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
19004VM | Optional Magnetic Base | - | $160.00 |
90012MB | Brass Shutoff valve - 1/4" M-F | - | $35.00 |
90012MS | Stainless Shutoff valve - 1/4" M-F | - | $77.00 |
90053 | 1/4" NPT Stainless Steel Swivel Fitting | - | $64.00 |
More Information or Buy Here |
