Product Overview
The Nex Flow® Frigid-X® Box Cooler is used for cooling small enclosures for laboratory use, environmental chambers, and for any application where an enclosure needs cooling (Note: Not approved for electrical and electronic control panels but may be used if approvals not required). This low cost system utilizes a stainless steel vortex tube with an adjustable hot end to control the temperature produced in the enclosure.
All the necessary items are included in the package to attach the vortex tube along with a separate venting unit to exhaust the hot air being displaced inside the enclosure. An optional hose distribution kit is available to distribute the cold air inside for larger enclosures. Also available is an optional solenoid and thermostat for on-off control.
Frigid X Box Cooler
Why Our Vortex Tube Products:
Our Vortex Tubes are stainless steel with metal generators as a standard for use in high temperature environments No extra charges. Superior performance and design
Do you require a more convenient way to adjust the Box Cooler?
Use the Hand Adjustable Hot End System complete with incorporated Hot End Muffler as used with our vortex tubes
Accessories for Frigid-x® Box Cooler
Model 55008
Hand turning adjustable hot end c/w muffler for medium vortex tube
Model 69004
Hose Distribution Kit
Model 55003
Hot End Muffler for Small or Medium Vortex Tube
Model 90004
Filter with Auto Drain
Model 90015
Thermostat and Solenid Valve Kit for on-off control
Model 59000B
Breather Cap with Lock Nut
Features / Advantages
- No moving parts
- Maintenance Free Operation
- Compact & Easy to Install
- Cooling Capacities to 2900 BTU/hr.
- No CFCs or HCFCs
- Stainless Steel Construction
- No Electricity
- Adjustable Cold Temperatures
Videos

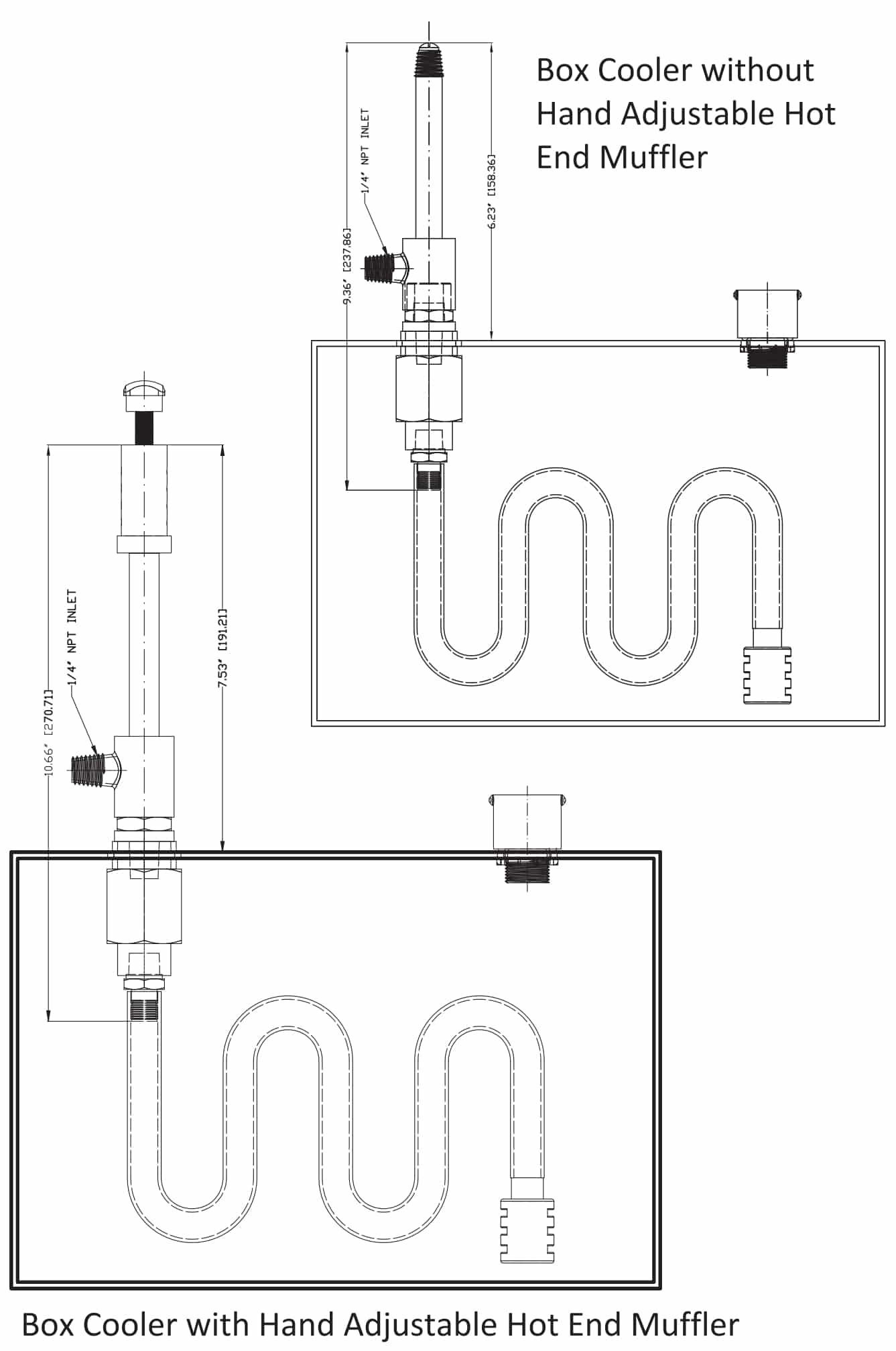

Dimensions
Performance
| PART NO. | DESCRIPTION | Btu/hr. at 100 PSIG (Watts at 6.9 BAR) |
|---|---|---|
| 50010B | Box Cooler System with hot end adjustable screw | 730 BTU/hr. 170 Watts |
| 50015B | Box Cooler System with hot end adjustable screw | 1100 BTU/hr. 322 Watts |
| 50025B | Box Cooler System with hot end adjustable screw | 1800 BTU/hr. 527 Watts |
| 50030B | Box Cooler System with hot end adjustable screw | 2100 BTU/hr. 615 Watts |
| 50040B | Box Cooler System with hot end adjustable screw | 2900 BTU/hr. 849 Watts |
| 52010B | Box Cooler System with hot end hand adjustable knob | 730 BTU/hr. 170 Watts |
| 52015B | Box Cooler System with hot end hand adjustable knob | 1100 BTU/hr. 322 Watts |
| 52025B | Box Cooler System with hot end hand adjustable knob | 1800 BTU/hr. 527 Watts |
| 52030B | Box Cooler System with hot end hand adjustable knob | 2100 BTU/hr. 615 Watts |
| 52040B | Box Cooler System with hot end hand adjustable knob | 2900 BTU/hr. 849 Watts |
| Frigid-x™ Box Cooler | ||
|---|---|---|
| PART NO. | DESCRIPTION | PRICE US DOLLARS |
| 50010B | Box Cooler System incl. reducer, lock ring, hot end adj. screw, hose connector, breather cap | $391.00 |
| 50015B | Box Cooler System incl. reducer, lock ring, hot end adj. screw, hose connector, breather cap | $391.00 |
| 50025B | Box Cooler System incl. reducer, lock ring, hot end adj. screw, hose connector, breather cap | $391.00 |
| 50030B | Box Cooler System incl. reducer, lock ring, hot end adj. screw, hose connector, breather cap | $391.00 |
| 50040B | Box Cooler System incl. reducer, lock ring, hot end adj. screw, hose connector, breather cap | $391.00 |
| 52010B | Box Cooler System incl. reducer, lock ring, hot end adj. screw, hose connector, breather cap | $481.00 |
| 52015B | Box Cooler System incl. reducer, lock ring, hot end adj. screw, hose connector, breather cap | $481.00 |
| 52025B | Box Cooler System incl. reducer, lock ring, hot end adj. screw, hose connector, breather cap | $481.00 |
| 52030B | Box Cooler System incl. reducer, lock ring, hot end adj. screw, hose connector, breather cap | $481.00 |
| 52040B | Box Cooler System incl. reducer, lock ring, hot end adj. screw, hose connector, breather cap | $481.00 |
| More Information or Buy Here |
| Frigid-X® Box Cooler Accessories | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 122DC | 1/2 M-NPT to 3.8 M-NPT reducer to connect to box (NOTE: Need to add two Lock Rings) | - | $8.00 |
| 111D | Lock Ring Set - 1/2" - each (NOTE: Two with the system is needed) | - | $7.00 |
| 119DC | 1/2" F-NPT to 3/8" F-NPT reducer to connect to binside box cooler for attaching hose kit | - | $8.00 |
| 69014 | Plastic Barb Connector for hose distribution kit | - | $8.00 |
| 55008 | Hand turning adjustable hot end c/w muffler for medium vortex tube | - | $90.00 |
| 69004 | Hose Distribution Kit | - | $42.00 |
| 55003 | Hot End Muffler for Small or Medium Vortex Tube | - | $42.00 |
| 90004 | Filter with Auto Drain | - | $125.00 |
| 90015 | Thermostat and Solenid Valve Kit for on-off control | - | $418.00 |
| 59000B | Breather Cap | - | $105.00 |
| 59005B | Conversion Kit to Convert Vortex Tube into Box Cooler (122DC +2 sets 111D + 119DC +69014 +59000B) | - | $143.00 |
| More Information or Buy Here |
