Product Overview
Compressed Air Nozzles are commonly used in industries where there is a typical need for cleaning, drying and cooling. In potentially explosive environment – compressed air nozzles work well because no electricity is involved at the point of use.
Here at Nex Flow® – we group our wide range of nozzles into 2 groups (cone shaped nozzle and bullet shaped nozzle). Cone Shaped Nozzle is the more traditional design offering more flow per unit of air consumed making it better for cooling. The Air Mag® nozzles are our patented Bullet Shaped Nozzle design that maximizes blow-off force making it a great option for cleaning and part ejection.
With various different types of nozzles available in the market – it may be difficult to select the best nozzle type and size that fits your application. With decades of experience – Nex Flow® has proven time and time again to provide our clients with the most suitable and efficient nozzle for their application. After all – pneumatic technologies are not always cheap but with optimization can often lower the total cost of operation while improving productivity.
All of Nex Flow® nozzles offer noise level reduction and improvement in energy consumption while providing high blow-off force. Regardless of where you are located, our distributors around the globe can offer their expertise and help select the best nozzle for your application. Whether the nozzle is to be used in the automotive, pharmaceutical, food and packaging or any other industries – representatives at Nex Flow® is ready to help.
Our Three groups of Nozzles

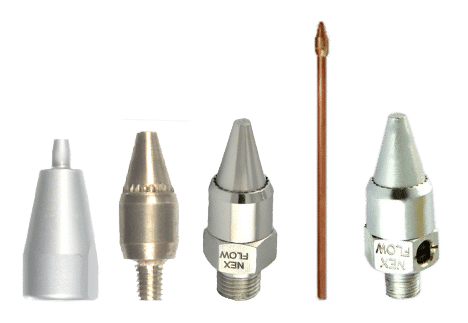

Cone Shaped Nozzle
Efficient at converting pressure into flow – they can dramatically lower noise levels when compared to open jets and pipes. All nozzles meet the OHSA standard for dead end pressure and offered in different types of materials including stainless steel, brass, anodized aluminum, etc.
Patented Air Mag® Bullet Shaped Nozzle
Great for application requiring higher force or blowing at a greater distance. The Air Mag® series is a star profile patented design providing the highest force/SCFM in the market. The special design makes them more rugged than many competitive units and is able to maintain a sharper laminar flow for a greater distance.

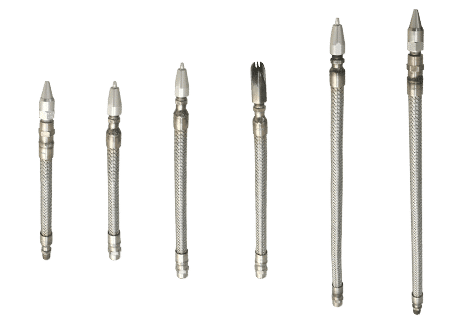

Air Nozzle and Flex Hose Package
The Nex Flow® Rigid-Flex Hoses are ideal accessories for air nozzles to air am direct them. We normally recommend the Extra Rigid versions of the hose when high pressure is used. Popular sizes are offered in packages with optional shut off valves and magnetic base.
Features / Advantages
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Improved production
- Lowest air consumption for force produced
- Lower noise levels
- no “whistling” sound *
- single piece design for extra strength
Videos
| Standard Air Nozzles | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 47001-M | Brass Mini-Nozzle with 5 M fitting | 5mm. | $29.00 |
| 47001-U | Brass Mini-Nozzle with 10/32" fitting | 10/32″ | $29.00 |
| 47002 | Brass Mini-Nozzle with copper tube - male | 1/4" | $48.00 |
| 47003 | Standard Aluminum 1/8" NPT male fitting | 1/8" | $28.00 |
| 47003S | Standard 303/304 Stainless Steel1/8" NPT male fitting | 1/8" | $57.00 |
| 47003S-316L | Standard 316L Stainless Steel1/8" NPT male fitting | 1/8" | $82.00 |
| 47003SM-316L | Mini 316L Stainless Steel 1/8*' NPT male fitting | 1/8" | $66.00 |
| 47004 | Extra Strong Aluminum 1/4" NPT male fitting | 1/4" | $30.00 |
| 47004S | Extra Strong 303/304 Stainless Steel 1/4" NPT male fitting | 1/4" | $58.00 |
| 47004S-316L | Extra Strong 316L Stainless Steel 1/4" NPT male fitting | 1/4" | $87.00 |
| 47004F | Extra Strong Aluminum 1/4" NPT female fitting | 1/4" | $30.00 |
| 47004FP | Extra Strong PEEK with aluminum sleeve - 1/4" NPT female fitting | 1/4" | $29.00 |
| 47009 | Adjustable Aluminum nozzle with 1/8" male NPT fitting | 1/8" | $32.00 |
| 47009S | Adjustable 303/304 stainless steel nozzle with 1/8" male NPT fitting | 1/8" | $59.00 |
| 47009S-316L | Adjustable 316L stainless steel nozzle with 1/8" male NPT fitting | 1/8" | $89.00 |
| 47010 | X-stream Strong Force nozzle with 1/4" female NPT fitting | 1/4" | $42.00 |
| More Information or Buy Here | $66.00 |
| Air Mag™ Super High Efficiency Air Nozzles | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 47000AMS | 316L Stainless Steel High Force per Air Consumption M4 male air nozzle | 4mm. | $55.00 |
| 47001AMS | 316L Stainless Steel High Force per Air Consumption M5 male air nozzle | 5mm. | $56.00 |
| 47002AMS | 316L Stainless Steel High Force per Air Consumption M6 male air nozzle | 6mm. | $57.00 |
| 47002AMST | SS High Force per Air Consumption M6 male air nozzle with 1/8″ NPT fitting | 1/8″ | $76.00 |
| 47002AMP | Peek High Force per Air Consumption M6 male air nozzle | 6mm. | $46.00 |
| 47002AMPT | Peek High Force per Air Consumption M6 male air nozzle with 1/8″ NPT fitting | 1/8″ | $59.00 |
| 47004AMF | Zinc Cast High Force per Air consumption 1/4″ NPT female air nozzle | 1/4″ | $50.00 |
| 47004AMFS | Stainless Steel High Force per Air consumption 1/4″ NPT female air nozzle | 1/4″ | $114.00 |
| 47006AMF | Zinc Cast High Force per Air consumption 1/2″ NPT female air nozzle | 1/2″ | $110.00 |
| 47006AMFS | Stainless Steel High Force per Air consumption 1/2″ NPT female air nozzle | 1/2″ | $227.00 |
| More Information or Buy Here |
| Rigid-Flex Hose With Nozzle Packages | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 6RF-ES-47010 | Extra Stiff RF steel rigid hose which + 47010 nozzle | - | $122.00 |
| 12RF-ES-47010 | Extra Stiff RF steel rigid hose which + 47010 nozzle | - | $132.00 |
| 18RF-ES-47010 | Extra Stiff RF steel rigid hose which + 47010 nozzle | - | $142.00 |
| 6RF-MF-ES-47004 | Extra Stiff RF steel rigid hose which + 47004 nozzle | - | $110.00 |
| 12RF-MF -ES-47004 | Extra Stiff RF steel rigid hose which + 47004 nozzle | - | $120.00 |
| 18RF-MF -ES-47004 | Extra Stiff RF steel rigid hose which + 47004 nozzle | - | $130.00 |
| 6RF-MF-ES-47004S | Extra Stiff RF steel rigid hose which + 47004S nozzle | - | $138.00 |
| 12RF-MF -ES-47004S | Extra Stiff RF steel rigid hose which + 47004S nozzle | - | $148.00 |
| 18RF-MF -ES-47004S | Extra Stiff RF steel rigid hose which + 47004S nozzle | - | $158.00 |
| 6RF-MF-ES-47004S-316L | Extra Stiff RF steel rigid hose which + 47004S-316L nozzle | - | $167.00 |
| 12RF-MF -ES-47004S-316L | Extra Stiff RF steel rigid hose which + 47004S-316L nozzle | - | $177.00 |
| 18RF-MF -ES-47004S-316L | Extra Stiff RF steel rigid hose which + 47004S-316L nozzle | - | $187.00 |
| 6RF-ES-47004AMF | Extra Stiff RF steel rigid hose which + 47004AMF Air Mag nozzle | - | $130.00 |
| 12RF-ES-47004AMF | Extra Stiff RF steel rigid hose which + 47004AMF Air Mag nozzle | - | $140.00 |
| 18RF-ES-47004AMF | Extra Stiff RF steel rigid hose which + 47004AMF Air Mag nozzle | - | $150.00 |
| 6RF-ES-47004AMFS | Extra Stiff RF steel rigid hose which + 47004AMFS SS Air Mag nozzle | - | $194.00 |
| 12RF-ES-47004AMFS | Extra Stiff RF steel rigid hose which + 47004AMFS SS Air Mag nozzle | - | $204.00 |
| 18RF-ES-47004AMFS | Extra Stiff RF steel rigid hose which + 47004AMFS SS Air Mag nozzle | - | $214.00 |
| More Information or Buy Here |
| Accessories for Rigid-Flex Hose Packages | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 90012MS | Optional Stainless Steel Mini Shutoff Valve - 1/4" M/F NPT | - | $77.00 |
| 90012MB | Optional Brass Mini Shutoff Valve - 1/4" M/F NPT | - | $35.00 |
| 90029L | Optional Large Magnetic Swivel Base | - | $130.00 |
| 90029N | Optional Large Magnetic Base - non-swivel | - | $110.00 |
| More Information or Buy Here |
Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA
Richmond Hill, ON, Canada for international orders.
website : www.nexflow.com
email : sales@nexflow.com
