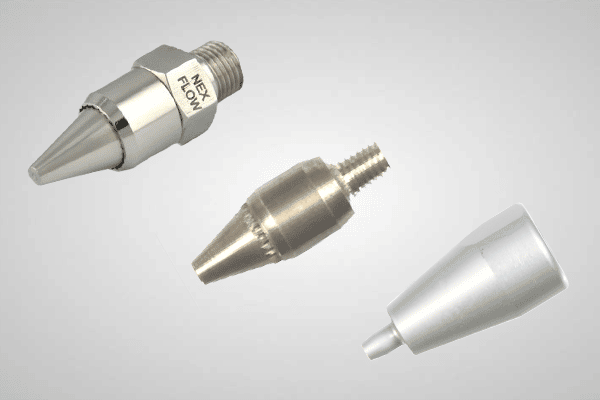

Product Overview
The older designs of Nex Flow® Air Nozzles are quite efficient at converting pressure to flow. In fact, as flow amplifiers, they are actually better for “cooling” as they have less force/CFM, but more flow/CFM than more engineered nozzles like the Nex Flow® Air Mag® series. The Air Mag® series of nozzles utilize some patented features to create the highest force/CFM of any air nozzle we know of.
All Nex Flow Air Nozzles meet OSHA standard CFR 1910.242(b) for dead end pressure and noise levels are dramatically lower in addition to having lower energy use.
Air Nozzle Model :

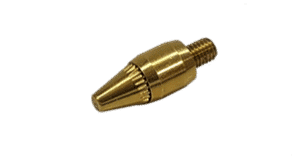

Model 47001 is designed to fit into small spots and is used by many machine builders for blow-off applications.
Sound level 74 dBA at 3ft (0.91m) at 80 psig (5.5 bar).

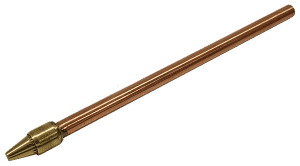

Model 47002 is the brass nozzle added to a copper tube. Machine builders can bend the copper tube and aim the nozzles to wherever it suits. The copper tube is simply press fit into the customer’s system.
Sound level 74 dBA at 3ft (0.91m) at 80 psig (5.5 bar).

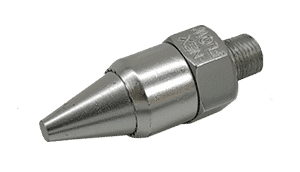

Model 47003 (anodized aluminium) Model 47003S (303/304 Stainless Steel) and Model 47003S-316L (316L Stainless Steel) – These are common standard strength nozzles with a 1/8” male NPT connection and ideal for most blow-off applications involving liquids.
Sound level 77 dBA at 3ft (0.91m) at 80 psig (5.5 bar).

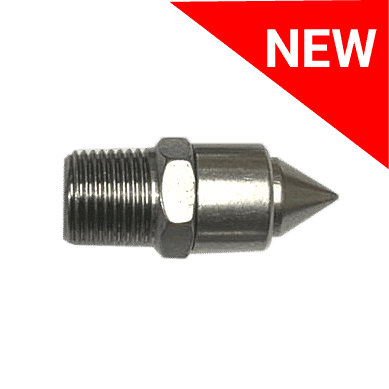

Model 47003SM-316L (316L Stainless Steel) mini nozzle ideal for tight spaces. Comes with a 1/8″ make NPT connection with very efficient design and high force level.
Sound level 77 dBA at 3ft (0.91m) at 80 psig (5.5 bar).

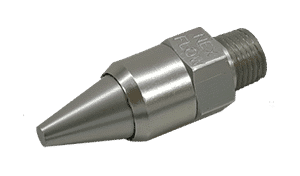

Model 47004 (anodized aluminium) Model 47004S (303/304 Stainless Steel) and Model 47004S-316L (316L Stainless Steel) – These are strong force nozzles with a 1/4” male NPT connection and ideal for most blow-off applications involving liquids and even light weight parts.
Sound level 78 dBA at 3ft (0.91m) at 80 psig (5.5 bar).

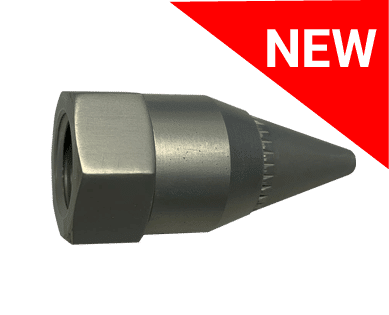

Model 47004F (anodized aluminum) and Model 47004FP (PEEK body and top with aluminum sleeve) – These are strong force nozzles with a 1/4” female NPT connection and ideal for most blow-off applications involving liquids and even light weight parts.
Sound level 78 dBA at 3ft (0.91m) at 80 psig (5.5 bar).

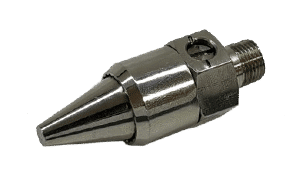

Model 47009 (anodized aluminium) Model 47009S (303/304 Stainless Steel) and Model 47009S-316L (316L Stainless Steel) Are made adjustable. The superior design of the adjustable set screw is made to adjust the nozzles within their weakest and strongest ranges.
Sound level 77 dBA at 3ft (0.91m) at 80 psig (5.5 bar).

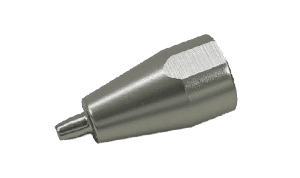

Model 47010 is extremely powerful. It has a 1/4” female NPT fitting and is fully anodized for long life. With the ‘coanda’ profile you get an extremely strong force at a distance. This is ideal for blow guns and for blowing small parts for part ejection heavier viscosity liquids. The 47010 is a higher force, Nozzle but has less distance for laminar flow than the 47004.
Sound level 78 dBA at 3ft (0.91m) at 80 psig (5.5 bar).
Features / Advantages
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Improved production
Videos
How Air Nozzles Works
For the Standard Air Nozzles Models 47001, 47002, 47003, 47003S, 47003S-316L, 47004, 47004S, 47004S-316L, 47009, 47009S, 47009S-316 they work utilizing the Coanda effect by entraining surrounding air along wit the compressed air that exists a ring of holes around the bottom of the nozzle. Compressed air enters at point (A). Surrounding air (B) is entrained over the specially designed profile surface by the action of the small amount of compressed air leaving the ring gaps at point (C). This results in a concentrated high velocity, laminar flow stream of amplified air. With this deign energy normally lost as pressure drop and noise is recovered and converted into useful high energy flow. The standard air nozzles provide the best flow/unit air consumption and are best suited for light blow off and for cooling applications. Savings in compressed air compared to open pipe is around 30%.
The Standard Air Nozzles are low cost solutions to many blow off applications when light blow off is adequate. Always use filters compressed air to make sure the air supply remains clean and dry. Wherever there is an open tube or pipe, these air nozzles are a very lost cost way to reduce noise, reduce energy and improve safety as dead end pressure is below 30 PSIG and meets OSHA safety standards.
Materials vary in how the nozzles are made. The Model 47001 and 47002 is made of brass. Stainless steel is available on special order. The other sizes are anodized aluminum, 304 stainless steel and 316L stainless steel for food and pharmaceutical applications.
Nex Flow® can also design special nozzles for you application and offers consultation in design.
Dimension

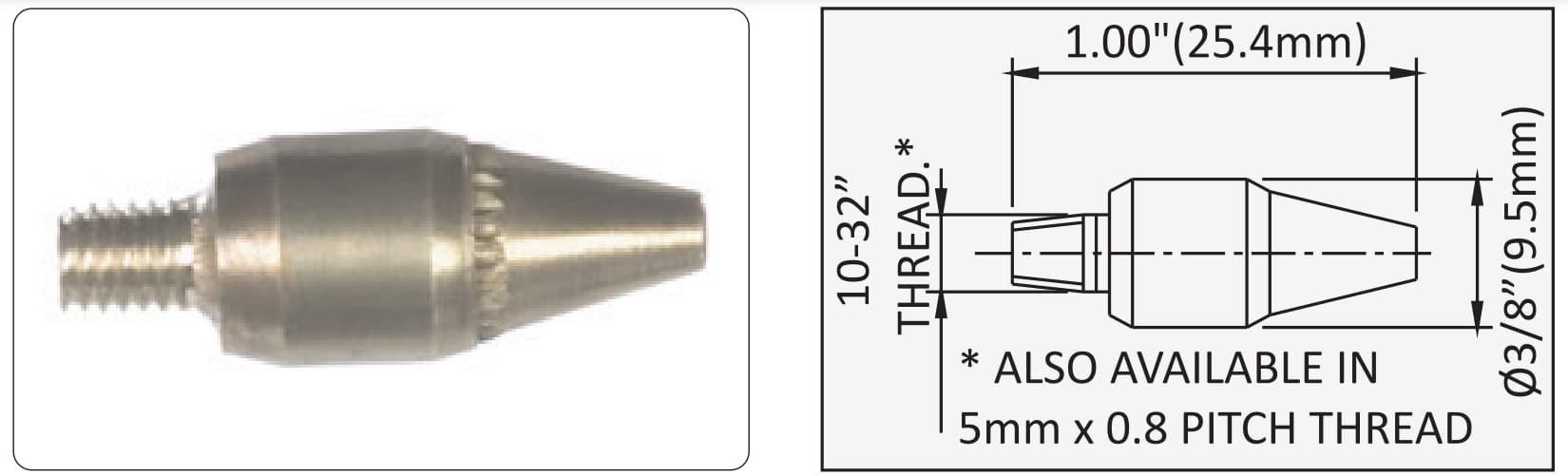

Model 47001

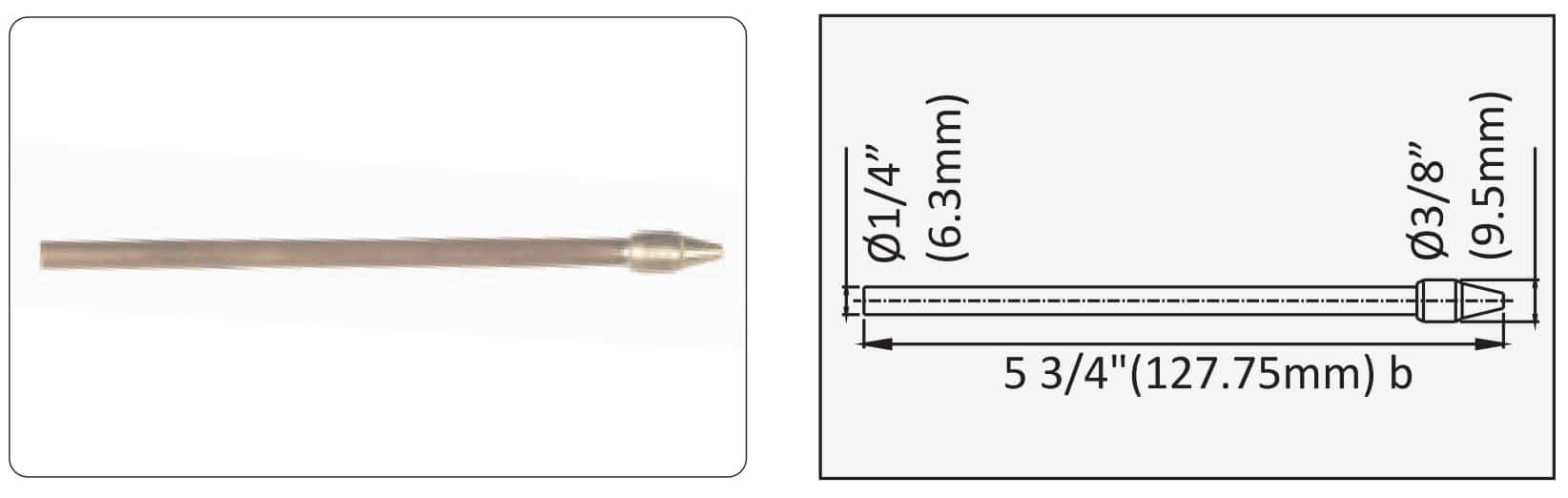

Model 47002

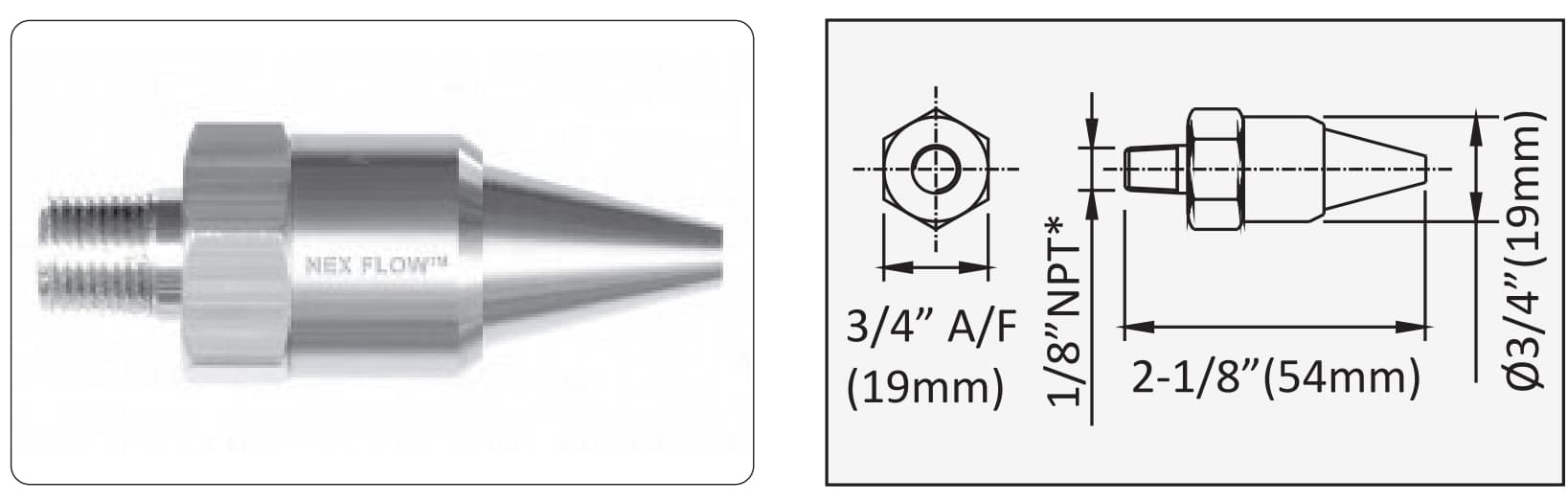

Model 47003

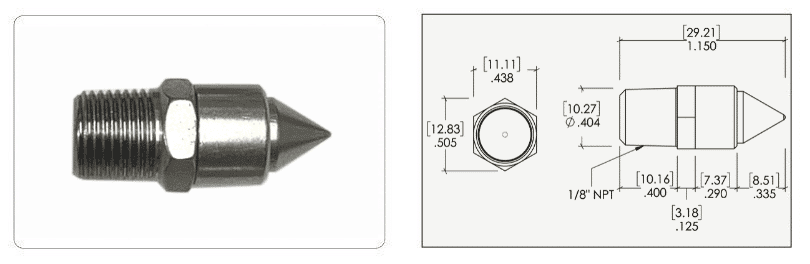

Model 47003SM-316L

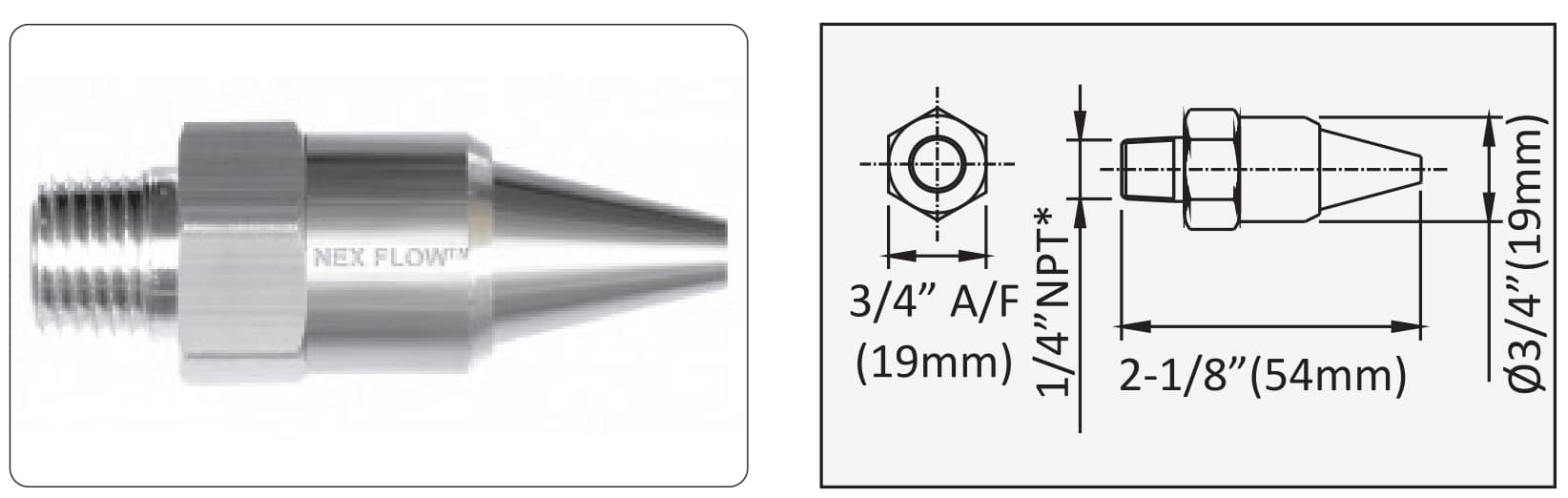

Model 47004 / 47004S / 47004S-316L

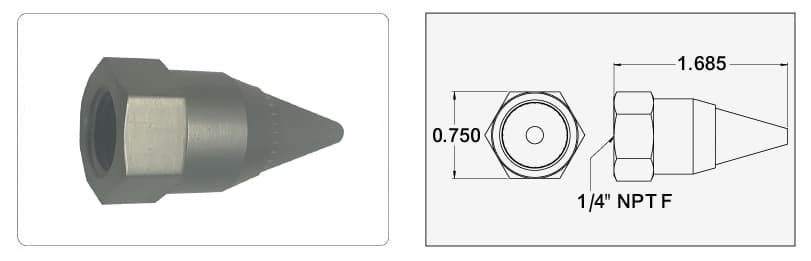

Model 47004F / 47004FS / 47004FS-316L

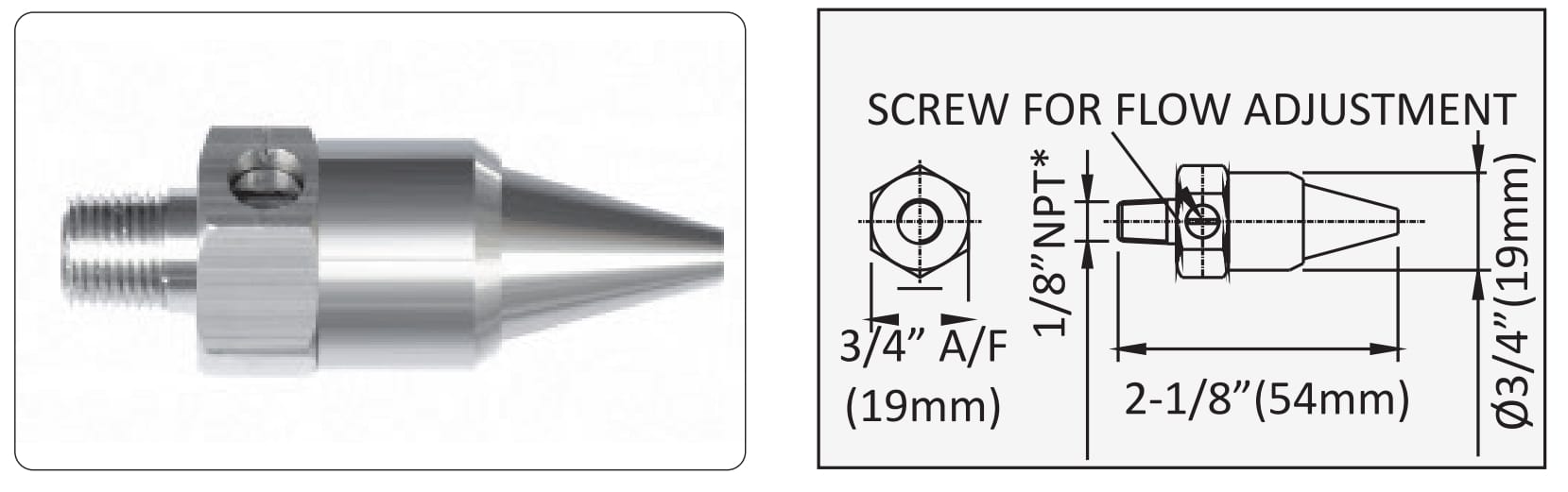

Model 47009

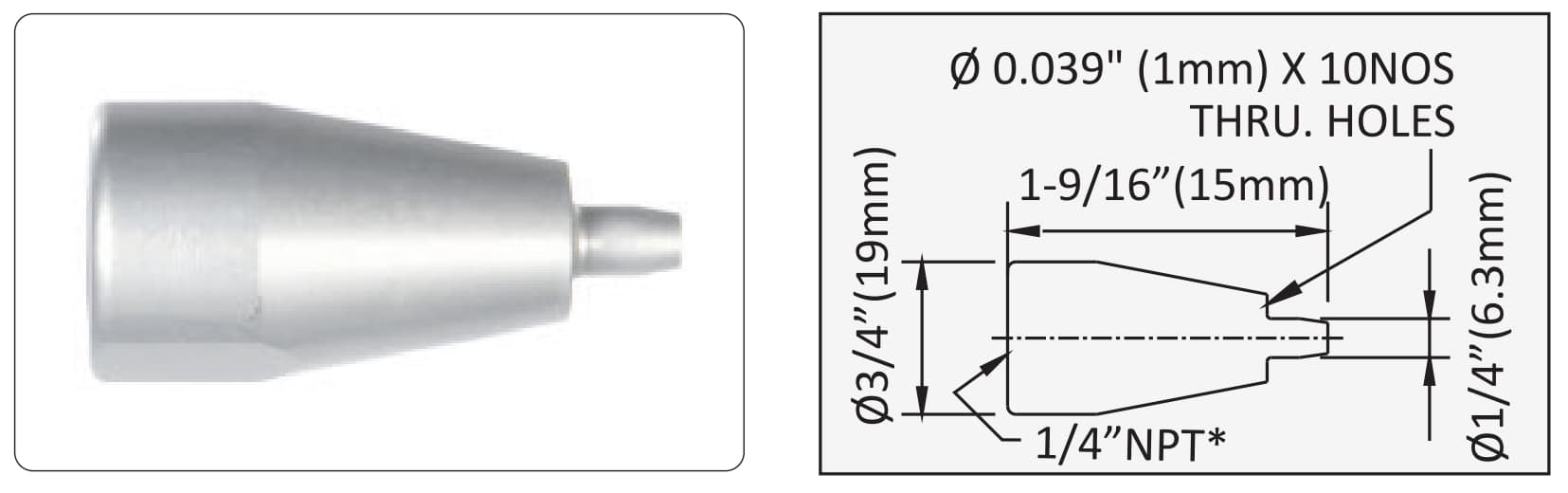

Model 47010

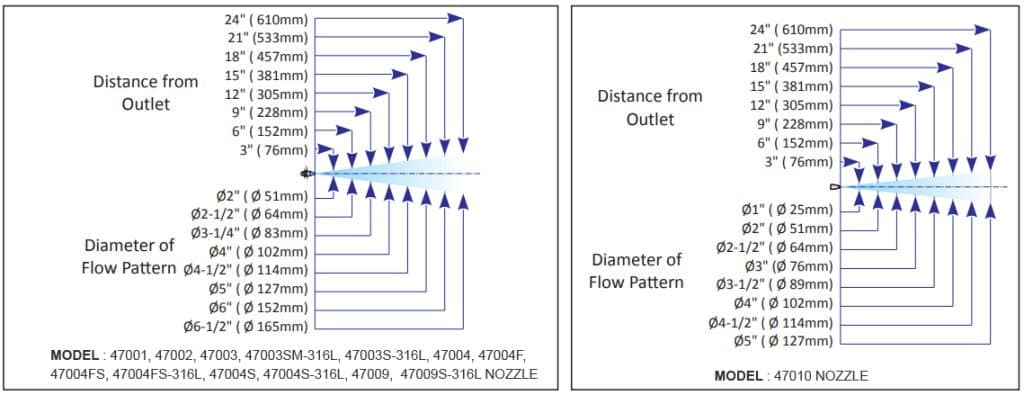

Performance
Force in Oz (gm) at 12″ (300mm) from Target
| Model | Description | Air Consumption @ 80 psig | Force in ounces | Force in Grams | dBA @ 80 PSIG (5.5 bar) |
|---|---|---|---|---|---|
| 47001 | Brass Mini-Nozzle with 10/32 fitting or metric equivalent | 6.0 | 5.0 | 142 | 74 |
| 47002 | Brass Mini-Nozzle with copper tube – male | 6.0 | 5.0 | 142 | 74 |
| 47003 (aluminium) 47003S (303/304 stainless) 47003S-316L (316L stainless) | Standard aluminium 1/8″ NPT male fitting | 11.2 | 8.0 | 227 | 77 |
| 47003SM (316L Stainless) | 1/8″ NPT Mini Nozzle | 18.5 | 14.6 | 415 | 77 |
| 47004 (aluminium) 47004S (303/304 stainless) 47004S-316L (316L stainless) | Extra Strong aluminium 1/4″ NPT male fitting | 24.0 | 21.0 | 596 | 78 |
| 47004F (aluminium) 47004FS (303/304 stainless) 47004FS-316L (316L stainless) | Extra Strong aluminium 1/4″ NPT female fitting | 24.0 | 21.0 | 596 | 78 |
| 47009 (aluminium) 47009S (303/304 Stainless Steel) 47009S-316L (316L stainless) | Adjustable aluminium nozzle with 1/8″ male NPT fitting | Maximum 24.0 | Maximum 23.0 | 653 | 77 |
| can be set to minimum and maximum with set screw | Minimum 13.0 | Minimum 13.0 | 369 | 77 | |
| 47010 | X-stream Strong Force nozzle with 1/4″ female NPT fitting | 21.2 | 21.7 | 615 | 78 |
| 47004AMF Click Here for More Details | Air Mag® Nozzle with 1/4″ female NPT fitting | 15.5 | 15.0 | 425 | 78 |
| 47011-4 Click Here for More Details | Air Edger® Flat Jet with .004 gap setting | 20.5 | 12 | 340 | 75 |
| Standard Air Nozzles | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 47001-M | Brass Mini-Nozzle with 5 M fitting | 5mm. | $29.00 |
| 47001-U | Brass Mini-Nozzle with 10/32" fitting | 10/32″ | $29.00 |
| 47002 | Brass Mini-Nozzle with copper tube - male | 1/4" | $48.00 |
| 47003 | Standard Aluminum 1/8" NPT male fitting | 1/8" | $28.00 |
| 47003S | Standard 303/304 Stainless Steel1/8" NPT male fitting | 1/8" | $57.00 |
| 47003S-316L | Standard 316L Stainless Steel1/8" NPT male fitting | 1/8" | $82.00 |
| 47003SM-316L | Mini 316L Stainless Steel 1/8*' NPT male fitting | 1/8" | $66.00 |
| 47004 | Extra Strong Aluminum 1/4" NPT male fitting | 1/4" | $30.00 |
| 47004S | Extra Strong 303/304 Stainless Steel 1/4" NPT male fitting | 1/4" | $58.00 |
| 47004S-316L | Extra Strong 316L Stainless Steel 1/4" NPT male fitting | 1/4" | $87.00 |
| 47004F | Extra Strong Aluminum 1/4" NPT female fitting | 1/4" | $30.00 |
| 47004FP | Extra Strong PEEK with aluminum sleeve - 1/4" NPT female fitting | 1/4" | $29.00 |
| 47009 | Adjustable Aluminum nozzle with 1/8" male NPT fitting | 1/8" | $32.00 |
| 47009S | Adjustable 303/304 stainless steel nozzle with 1/8" male NPT fitting | 1/8" | $59.00 |
| 47009S-316L | Adjustable 316L stainless steel nozzle with 1/8" male NPT fitting | 1/8" | $89.00 |
| 47010 | X-stream Strong Force nozzle with 1/4" female NPT fitting | 1/4" | $42.00 |
| More Information or Buy Here | $66.00 |
