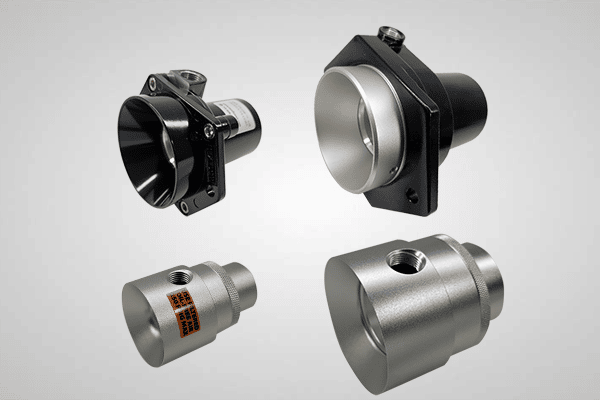

Product Overview
Nex Flow® Air amplifiers are compact, low cost air flow “movers” that are virtually maintenance free. Applications include the venting of fumes and smoke, conveying of low weight materials, and entraining a high volume of air to cool, blow off, and dry. Air Amplfiiers use the “Coanda effect” to draw in the surrounding atmosphereic air while consuming only aminimal amount of compressed air. These products can amplify airflow up to 17 times (depending on the size) resulting in dramatcally reduced levels of noise.
Air Amplifiers (also called Air Movers) draw in atmospheric air from the back of the unit as well as having downstream entrainment further amplifying the flow. They are used for cooling and venting. While the force produced for blow off decreases as the amplifier outlet diameter increases, these Air Movers are ideal for cooling because of the high velocity outlet fow and and are much more effective for cooling compaed to air nozzles.
The air amplification “ratio” (hover for definition) varies from 6 up to 17 depending on size of the air amplifier. If the ratio is higher than 17 the velocity could decrease too much and the blow off force would become too weak and ineffective because of inadequate velocity. With much lower velocity the cooling effect is dramatically redcued as well. Nex Flow offers units for testing and welcomes comparisons to competitive models so you can confirm actual results in house.
Common Applications….
- Cool hot parts
- Vent Welding Smoke
- Dry wet parts
- Clean machined parts
- Distribute heat in molds/ovens
- Ventilate confined areas
- Dust collection
- Exhaust tank fumes

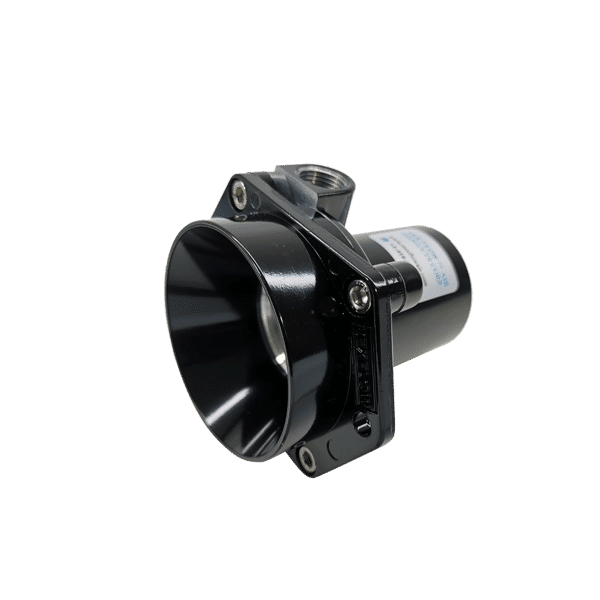

Fixed X-Stream® Air Amplifier
Nex Flow’s Fixed X-Stream® Air Amplifier comes complete with mounting holes for easy mounting. The units are easy to maintain with virtually no maintenance. They reduce both compressed air consumption and noise levels significantly. By harnessing the energy from an input of a small amount of compressed air, the Standard Air Amplifier creates a high velocity, high volume, low pressure air flow output with high kinetic energy. They are quiet and amplify up to 17 times the air they consume depending on the size.
Adjustable Air Amplifiers
The Adjustable Air Amplifier is is similar in prniciple of operation as the Standard Amplffier except that the gap is adjustable. They are made of either anodized aluminum for regulatr use or in stainless steel for high temperature, corrosive atmospheres and for food and pharmaceutical applications. You can set the air gap to increase or decrease flow and force and then lock it in place with the lock ring. The applications are similar to a standard air amplifier but tends to be popular with OEM’s because of its versatility and compact, lightweight design.
Features / Advantages
- Compact, lightweight, portable
- No electricity
- No moving parts – no maintenance
- Ends are easily ducted
- Instant on/off
Videos
| Anodized Aluminum Adjustable Amplifiers | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 40000 | Adjustable Aluminum Air Amplifier | 3/4″ | $105.00 |
| 40001 | Adjustable Aluminum Air Amplifier | 1-1/4″ | $153.00 |
| 40002 | Adjustable Aluminum Air Amplifier | 2″ | $192.00 |
| 40003 | Adjustable Aluminum Air Amplifier | 3″ | $375.00 |
| 40004 | Adjustable Aluminum Air Amplifier | 4″ | $542.00 |
| 41000 | Adj. Al. Amplifier plus filter with auto drain model 90004 | 3/4″ | $230.00 |
| 41001 | Adj. Al. Amplifier plus filter with auto drain model 90004 | 1-1/4″ | $278.00 |
| 41002 | Adj. Al.Amplifier plus filter with auto drain model 90004 | 2″ | $317.00 |
| 41003 | Adj. Al .Amplifier plus filter with auto drain model 90001 | 3" | $500.00 |
| 41004 | Adj. Al .Amplifier plus filter with auto drain model 90001 | 4″ | $667.00 |
| 42000 | Adj. Al. Amp. + filter 90004 + regulator with gage 90008 | 3/4″ | $305.00 |
| 42001 | Adj. Al. Amp. + filter 90004 + regulator with gage 90008 | 1-1/4″ | $353.00 |
| 42002 | Adj. Al. Amp. + filter 90004 + regulator with gage 90008 | 2″ | $392.00 |
| 42003 | Adj. Al. Amp. + filter 90001 + regulator with gage 90009 | 3″ | $610.00 |
| 42004 | Adj. Al. Amp. + filter 90001 + regulator with gage 90009 | 4″ | $777.00 |
| More Information or Buy Here |
| Adjustable Anodized Aluminum Adjustable Air Amplifiers Gap Gauge | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 40001G | Adjustable Aluminum Air Amplifier with gap measurements | 1-1/4″ | $170.00 |
| 40002G | Adjustable Aluminum Air Amplifier with gap measurements | 2″ | $214.00 |
| 41001G | Adj. Al. Amp. With Gap Meas. plus filter with auto drain model 90004 | 1-1/4″ | $295.00 |
| 41002G | Adj. Al.Amp. With Gap Meas. plus filter with auto drain model 90004 | 2″ | $339.00 |
| 42001G | Adj. Al. Amp. + filter 90004 + regulator with gage 90008 | 1-1/4″ | $370.00 |
| 42002G | Adj. Al. Amp. + filter 90004 + regulator with gage 90008 | 2″ | $414.00 |
| More Information or Buy Here |
| Stainless Steel Adjustable Air Amplifiers | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 40000S | Adjustable Stainless Air Amplfier | 3/4" | $347.00 |
| 40001S | Adjustable Stainless Air Amplfier | 1-1/4" | $391.00 |
| 40002S | Adjustable Stainless Air Amplfier | 2" | $455.00 |
| 40003S | Adjustable Stainless Air Amplfier | 3" | $554.00 |
| 40004S | Adjustable Stainless Air Amplfier | 4" | $870.00 |
| 41000S | Adj. SS. Amplifier plus filter with auto drain model 90004 | 3/4" | $472.00 |
| 41001S | Adj. SS. Amplifier plus filter with auto drain model 90004 | 1-1/4" | $516.00 |
| 41002S | Adj. SS .Amplifier plus filter with auto drain model 90004 | 2" | $580.00 |
| 41003S | Adj. SS .Amplifier plus filter with auto drain model 90001 | 3" | $679.00 |
| 41004S | Adj. SS .Amplifier plus filter with auto drain model 90001 | 4" | $995.00 |
| 42000S | Adj. SS. Amplifier plus filter with auto drain model 90004 | 3/4" | $547.00 |
| 42001S | Adj. SS. Amp. + filter 90004 + regulator with gage 90008 | 1-1/4" | $591.00 |
| 42002S | Adj. SS. Amp. + filter 90004 + regulator with gage 90008 | 2" | $655.00 |
| 42003S | Adj. SS. Amp. + filter 90001 + regulator with gage 90009 | 3" | $789.00 |
| 42004S | Adj. SS. Amp. + filter 90001 + regulator with gage 90009 | 4" | $1,105.00 |
| More Information or Buy Here |
| Fixed X-Stream™ Air Amplifiers | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| FX10 | Zinc Alloy Amplifier | 3/4″ | $110.00 |
| FX20 | Zinc Alloy Amplifier | 1-1/4″ | $220.00 |
| FX40 | Zinc Alloy Amplifier | 2″ | $275.00 |
| FX75 | Zinc Alloy Amplifier | 4″ | $695.00 |
| FX10-1 | Amplifier plus filter with auto drain model 90004 | 3/4″ | $235.00 |
| FX20-1 | Amplifier plus filter with auto drain model 90004 | 1-1/4″ | $345.00 |
| FX40-1 | Amplifier plus filter with auto drain model 90004 | 2″ | $400.00 |
| FX75-1 | Amplifier plus filter with auto drain model 90001 | 4″ | $820.00 |
| FX10-2 | Amplifier + filter 90004 + regulator with gage 90008 | 3/4″ | $310.00 |
| FX20-2 | Amplifier + filter 90004 + regulator with gage 90008 | 1-1/4″ | $420.00 |
| FX40-2 | Amplifier + filter 90004 + regulator with gage 90008 | 2″ | $475.00 |
| FX75-2 | Amplifier + filter 90001 + regulator with gage 90008 | 4″ | $895.00 |
| More Information or Buy Here |
| Shim for Air Amplifiers | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| SH10-2 | Stainless Steel Shim, .002″ for FX10 | .002″ | $13.00 |
| SH10-3 | Stainless Steel Shim, .003″ for FX10 | .003″ | $13.00 |
| SH20-2 | Stainless Steel Shim, .002″ for FX20 | .002″ | $14.00 |
| SH20-3 | Stainless Steel Shim, .003″ for FX20 | .003″ | $14.00 |
| SH40-2 | Stainless Steel Shim, .002″ for FX40 | .002″ | $15.00 |
| SH40-3 | Stainless Steel Shim, .003″ for FX40 | .003″ | $15.00 |
| SH75-2 | Stainless Steel Shim, .002″ for FX75 | .002″ | $23.00 |
| SH75-3 | Stainless Steel Shim, .003″ for FX75 | .003″ | $23.00 |
| SH125-3 | Stainless Steel Shim, .003″ for FX125 | .003″ | $40.00 |
| More Information or Buy Here |
| Mounting Brackets (Stainless Steel) for Adjustable Air Amplifiers | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 40001MTS | Mounting Bracket for Model 40001, 40001G and 40001S | 1-1/4″ | $35.00 |
| 40002MTS | Mounting Bracket for Model 40002, 40002G and 40002S | 2″ | $50.00 |
| More Information or Buy Here |
| Mounting System for Air Amplifiers | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| 40001MTS-MS | System for 40001 and 40001G and 40001S – NF60003 + 40001MTS + screw | - | $392.00 |
| 40002MTS-MS | System for 40002 and 40002G and 40002S – NF60003 + 40001MTS + screw | - | $407.00 |
| More Information or Buy Here |
| Mounting System for Fixed X-Stream™ Air Amplifiers | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | SIZE | PRICE US DOLLARS |
| AMMS | System for FX10, FX20, FX40 – NF60003 + screw | – | $352.00 |
| More Information or Buy Here |
Prices are in US dollars – ex works Cincinnati, OH, USA for orders in USA
Richmond Hill, ON, Canada for international orders.
