Adjustable Spot Cooler
Adjustable Spot Cooler system, utilizing a vortex tube producing cold air at one end. It is low cost and maintenance free.
Weight | 1.6 kg |
---|---|
Model Type | Adjustable Frigid-X® Spot Cooler Only, Adjustable Frigid-X® Cooler System with Single Point Hose Kit, Adjustable Frigid-X® Cooler System with Dual Point Hose Kit |
Filter (Optional) | None, Filter with Auto Drain (90004) |
Adjustable Spot Cooler is,
- low-cost
- maintenance-free system
- utilizes a vortex tube to produce cold air at one end
They are accomplishing temperature adjusting by using a knob at the hot end. The knob allows for precise settings for your requirements. Remember temperatures range from minus 30ºF to room temperature and fix with a thermometer.
We are providing you with three brass generators for flow rate adjustment.
- 15 SCFM (425 SLPM)
- 25 SCFM (708 SLPM)
- 30 SCFM ( 850 SLPM)
- Generating refrigeration up to 2100 BTU/hr (615 Watts)
All Metal Parts, Stainless Steel Body, Quiet. Under 70dBA, Tests Show
The Frigid-X® Adjustable Spot Cooler is Quieter Than Competition!
And they remain accurate with Sub-zero cold air temperatures simply from an ordinary compressed air supply. This fact is vital for spot air cooler applications where adjustability is essential!
We are directing cold air using flexible tubing. Additionally, a magnetic base is standard for portability and easy mounting of the adjustable spot cooler.
Also, the Adjustable Spot Cooler units are available with either
- a single-point hose kit for small surface areas
- or a dual-point hose kit when generating heat over a larger surface area
Understanding adjustable spot coolers produce a wide range of airflow and temperature. We are accomplishing this by adjusting the knob at the hot end. And changing the various generators supplied. Also, controlling air consumption is easily interchangeable.
The good news is our Adjustable spot cooler has a 25 SCFM (708 SLPM) generator installed. Thus, producing up to 1,800 Btu/hr. of cooling. The 15 SCFM (425 SLPM) delivering 1,100 Btu/hr if less is required. Also, when more cooling is needed, Nex Flow supplies you with the 30 SCFM ( 850 SLPM), creating up to 2,100 Btu/hr of cooling.
View Detail on the Product Page
SKU | Model Type | Filter (Optional) | ||
---|---|---|---|---|

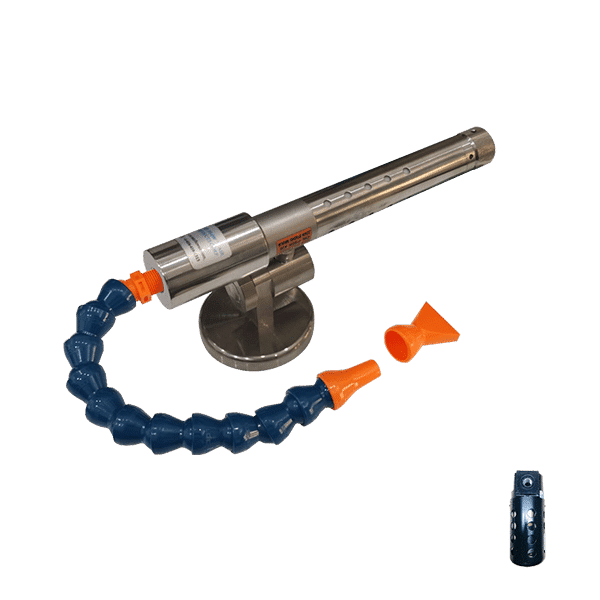

57025AS-F | Adjustable Frigid-X® Cooler System with Single Point Hose Kit | Filter with Auto Drain (90004) | ||

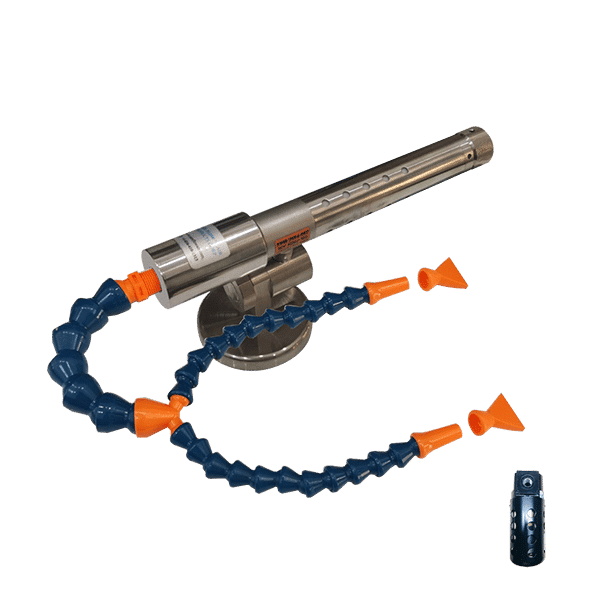

57025AD-F | Adjustable Frigid-X® Cooler System with Dual Point Hose Kit | Filter with Auto Drain (90004) | ||
56025A | Adjustable Frigid-X® Spot Cooler Only | None | ||

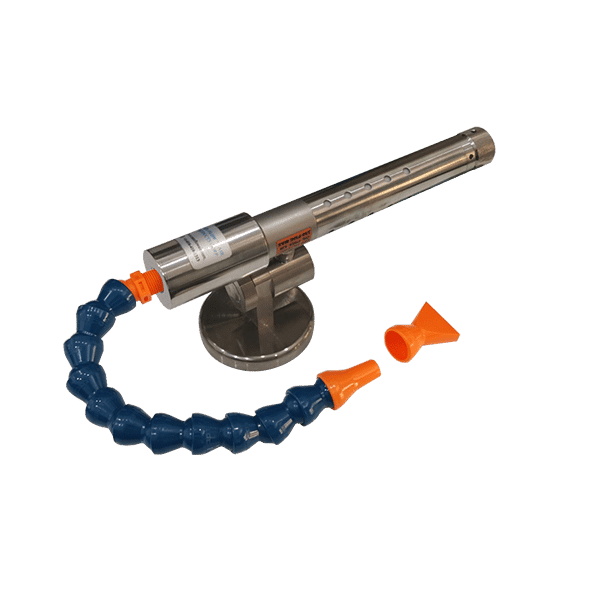

57025AS | Adjustable Frigid-X® Cooler System with Single Point Hose Kit | None | ||

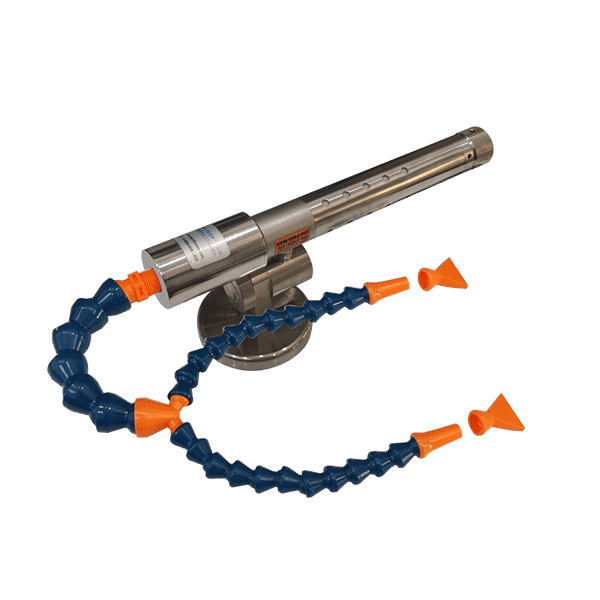

57025AD | Adjustable Frigid-X® Cooler System with Dual Point Hose Kit | None |
