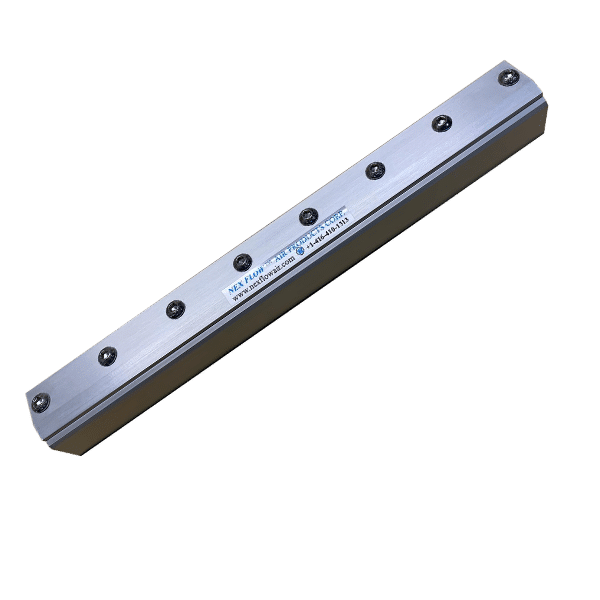

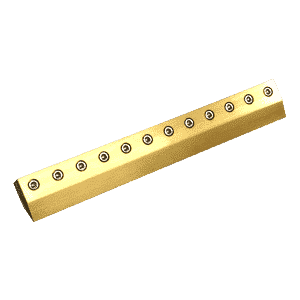

Standard Air Blade Air Knife
Standard Air Blade Air Knife is a must-have accessory to blow off liquid and/or debris for products traveling on conveyors. Ideal for most applications with output flow up to 30 times
Weight | 0.7 kg |
---|---|
Material | Aluminum, Stainless Steel |
Size | 3", 6", 8", 12", 18", 24", 30", 36" |

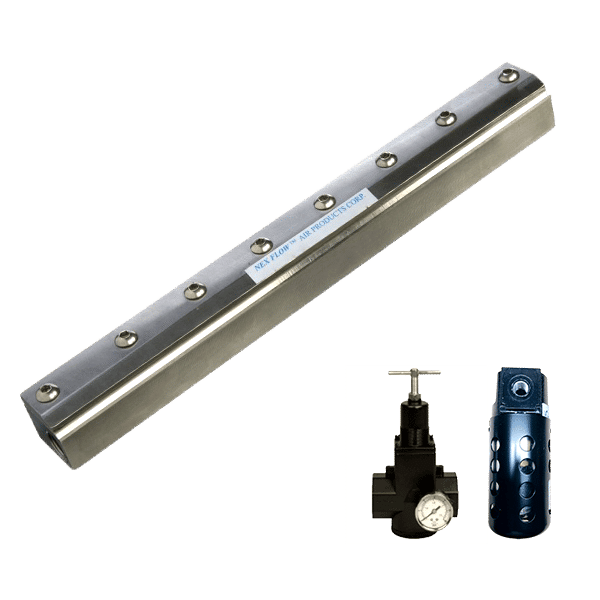

Accessories | Air Knife Only, Filter with Auto Drain, Filter with Auto Drain + Regulator with Gauge |
Standard Air Blade Air Knife
The standard air blade design is the original compressed air-operated air knife design. The atmospheric air is entrained by compressed air exiting a gap in the air knife. This utilizes a Coanda angle which bends the exiting flow of amplified air volume 90 degrees.

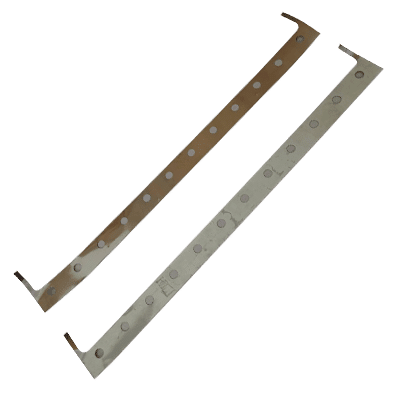

This converts energy usually lost as pressure drop and noise into useful, high-velocity airflow. That is used for blow-off, cooling, drying, and cleaning applications. The compressed air exit gap is maintained using a stainless steel shim. Also, shims may be added to increase the flow output if required.
All Nex Flow air knives are made with mounting holes to easily mount the units to machinery. Nex Flow standard air knives are designed for full flow, which means that the amplified air flow exits from end to end from the air knife.
- This allows the user to place air knives for continuous airflow coverage when longer lengths need to be addressed.
Because of the unique design of the standard air knife, it can be placed against and matched up against a fat or curved surface such that the amplified flow will stick to that surface and create a laminar airflow barrier along that surface, making for a protective barrier against a contaminated environment.
This is ideal for some applications, such as camera lenses in industrial installations.

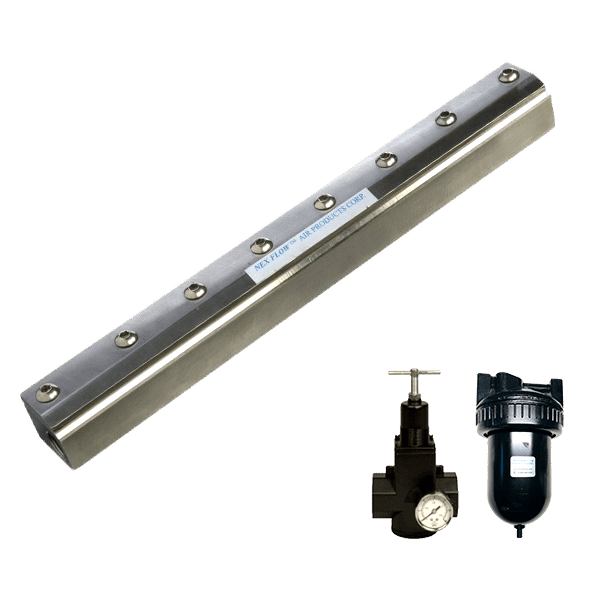

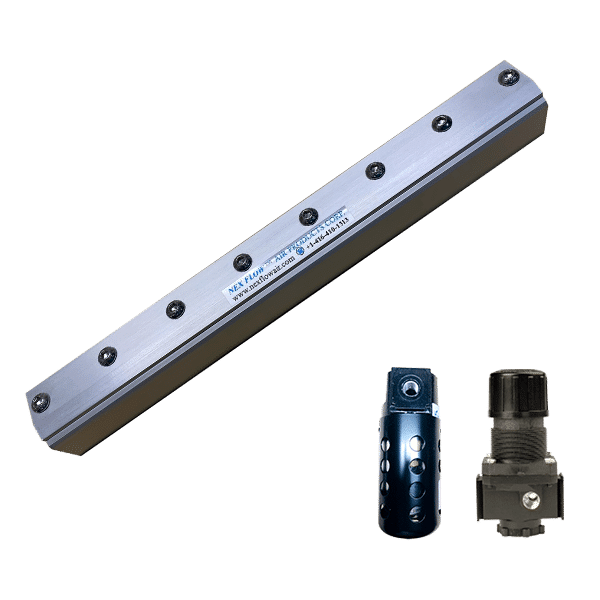

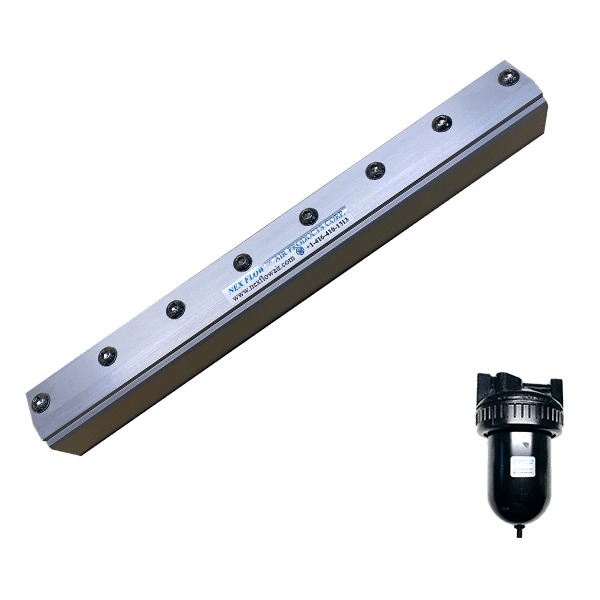

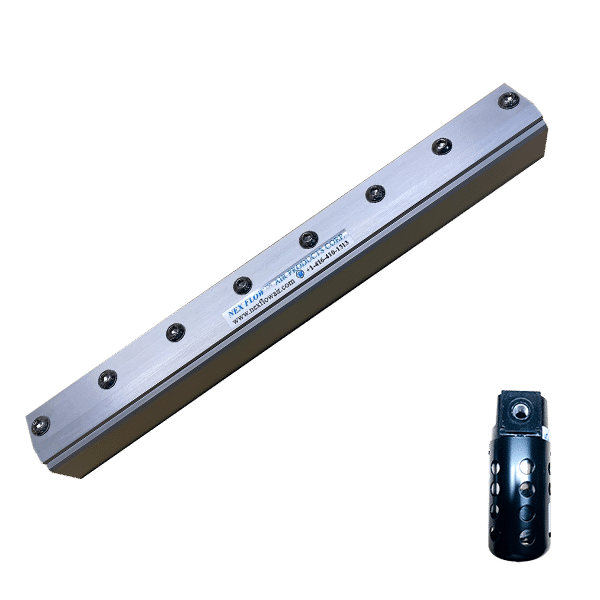

SKU | Material | Size | Accessories | ||
---|---|---|---|---|---|
10030 | Aluminum | 30" | Air Knife Only | ||

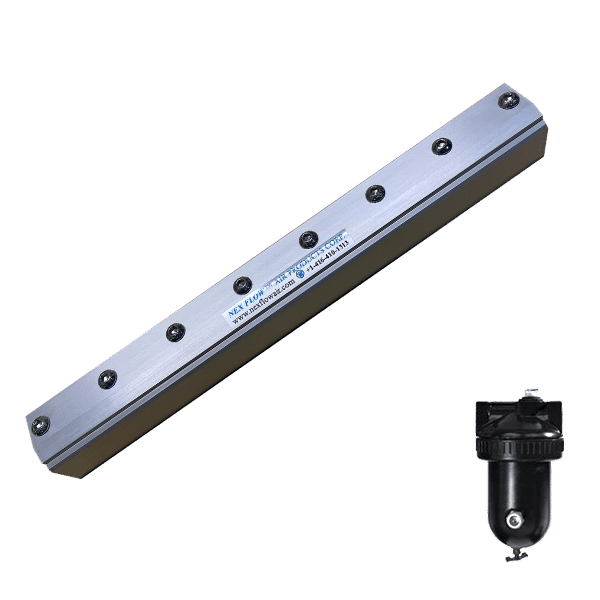

11030 | Aluminum | 30" | Filter with Auto Drain | ||

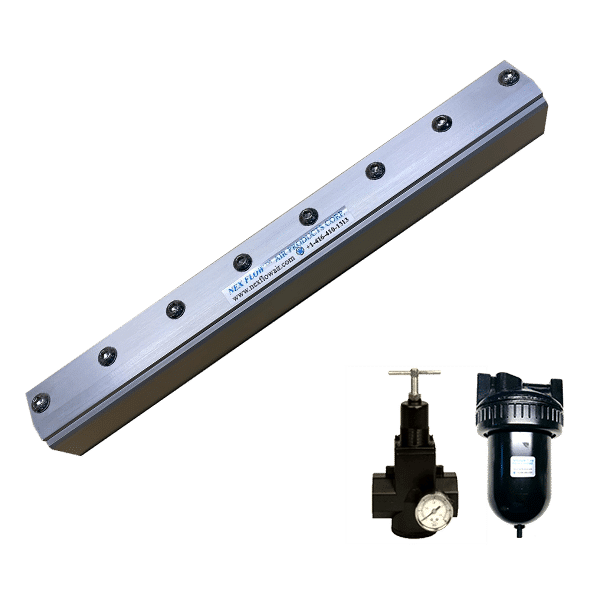

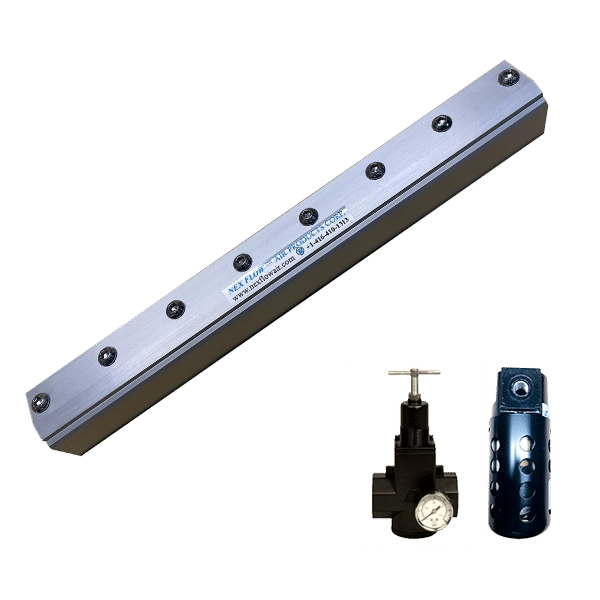

12030 | Aluminum | 30" | Filter with Auto Drain + Regulator with Gauge | ||
10036 | Aluminum | 36" | Air Knife Only | ||
11036 | Aluminum | 36" | Filter with Auto Drain | ||
12036 | Aluminum | 36" | Filter with Auto Drain + Regulator with Gauge | ||
10003 | Aluminum | 3" | Air Knife Only | ||
11003 | Aluminum | 3" | Filter with Auto Drain | ||
12003 | Aluminum | 3" | Filter with Auto Drain + Regulator with Gauge | ||
10006 | Aluminum | 6" | Air Knife Only | ||
11006 | Aluminum | 6" | Filter with Auto Drain | ||
10012 | Aluminum | 12" | Air Knife Only | ||
12006 | Aluminum | 6" | Filter with Auto Drain + Regulator with Gauge | ||
11012 | Aluminum | 12" | Filter with Auto Drain | ||
12012 | Aluminum | 12" | Filter with Auto Drain + Regulator with Gauge | ||
10008 | Aluminum | 8" | Air Knife Only | ||
10018 | Aluminum | 18" | Air Knife Only | ||
11008 | Aluminum | 8" | Filter with Auto Drain | ||
11018 | Aluminum | 18" | Filter with Auto Drain | ||
12008 | Aluminum | 8" | Filter with Auto Drain + Regulator with Gauge | ||
12018 | Aluminum | 18" | Filter with Auto Drain + Regulator with Gauge | ||
10024 | Aluminum | 24" | Air Knife Only | ||
11024 | Aluminum | 24" | Filter with Auto Drain | ||
12024 | Aluminum | 24" | Filter with Auto Drain + Regulator with Gauge | ||
10003S | Stainless Steel | 3" | Air Knife Only | ||
10006S | Stainless Steel | 6" | Air Knife Only | ||
10008S | Stainless Steel | 8" | Air Knife Only | ||
10012S | Stainless Steel | 12" | Air Knife Only | ||
10018S | Stainless Steel | 18" | Air Knife Only | ||
10024S | Stainless Steel | 24" | Air Knife Only | ||
10030S | Stainless Steel | 30" | Air Knife Only | ||
10036S | Stainless Steel | 36" | Air Knife Only | ||

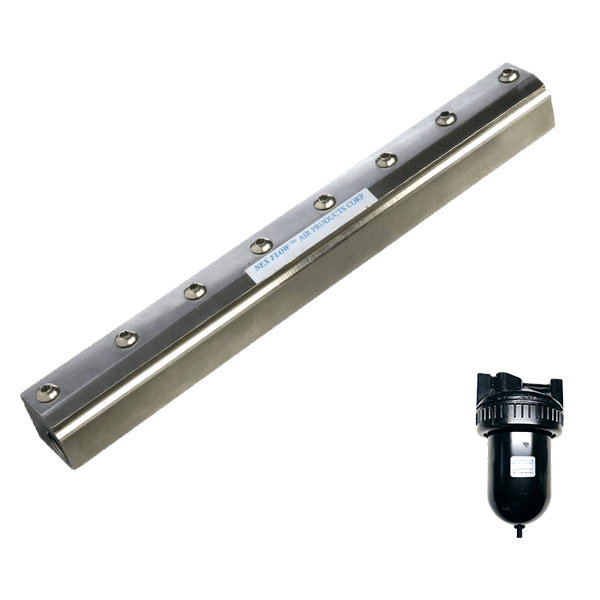

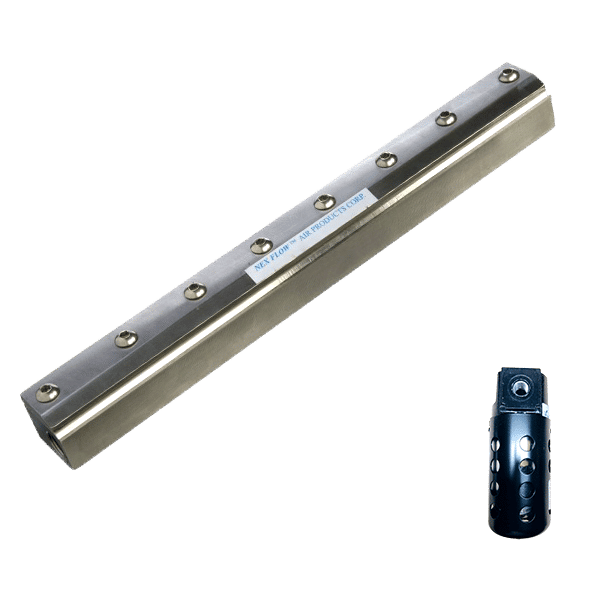

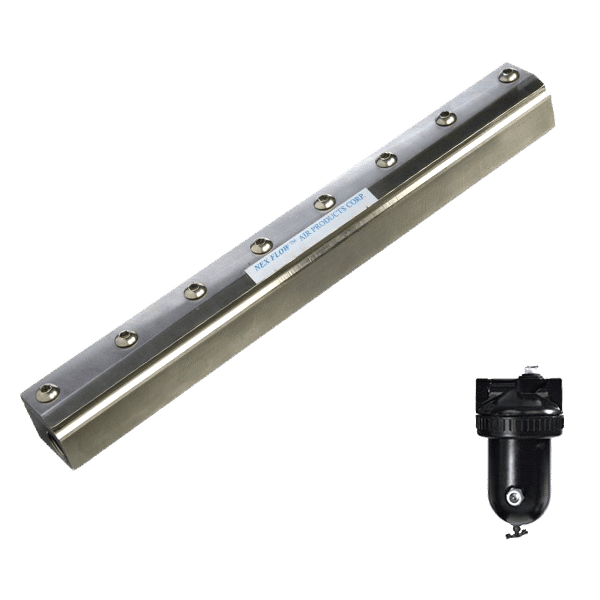

11003S | Stainless Steel | 3" | Filter with Auto Drain | ||
11006S | Stainless Steel | 6" | Filter with Auto Drain | ||
11008S | Stainless Steel | 8" | Filter with Auto Drain | ||
11012S | Stainless Steel | 12" | Filter with Auto Drain | ||
11018S | Stainless Steel | 18" | Filter with Auto Drain | ||
11024S | Stainless Steel | 24" | Filter with Auto Drain | ||
11030S | Stainless Steel | 30" | Filter with Auto Drain | ||
11036S | Stainless Steel | 36" | Filter with Auto Drain | ||

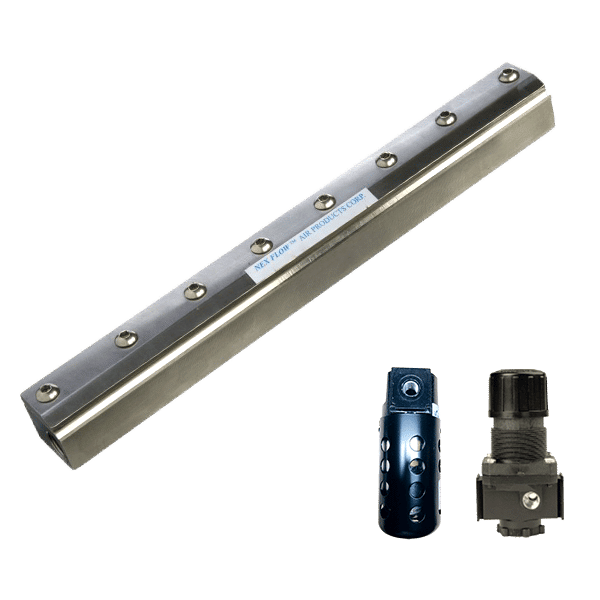

12003S | Stainless Steel | 3" | Filter with Auto Drain + Regulator with Gauge | ||
12006S | Stainless Steel | 6" | Filter with Auto Drain + Regulator with Gauge | ||
12008S | Stainless Steel | 8" | Filter with Auto Drain + Regulator with Gauge | ||
12012S | Stainless Steel | 12" | Filter with Auto Drain + Regulator with Gauge | ||
12018S | Stainless Steel | 18" | Filter with Auto Drain + Regulator with Gauge | ||
12024S | Stainless Steel | 24" | Filter with Auto Drain + Regulator with Gauge | ||
12030S | Stainless Steel | 30" | Filter with Auto Drain + Regulator with Gauge | ||
12036S | Stainless Steel | 36" | Filter with Auto Drain + Regulator with Gauge |
You may also like…
-

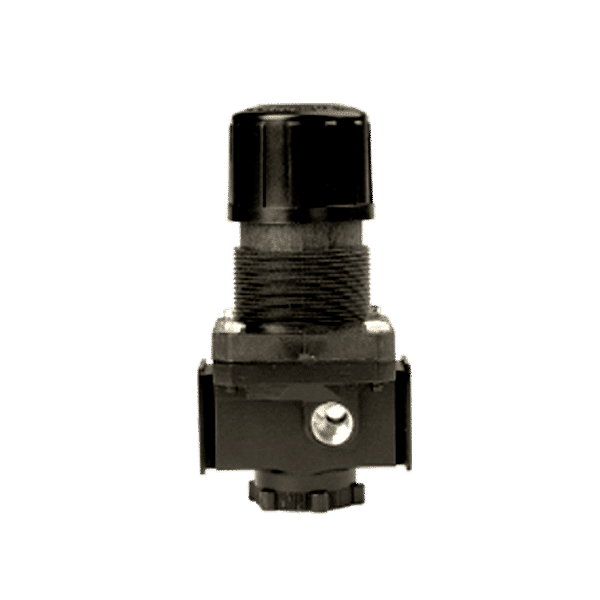

Regulators with Gauge
Select options This product has multiple variants. The options may be chosen on the product page -
Stainless Steel Shim Kit For Air Knives
Select options This product has multiple variants. The options may be chosen on the product page -

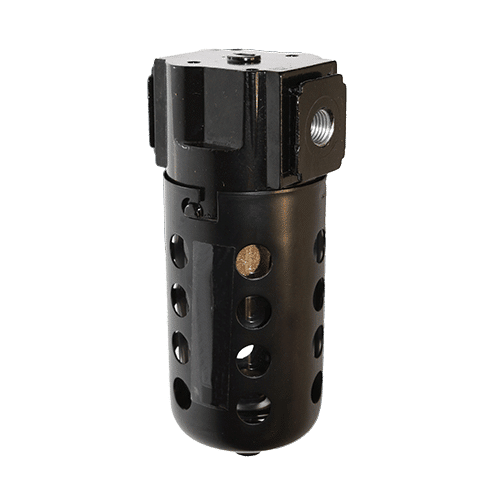

Compressed Air Filter
