Weight | 0.1 kg |
---|---|
Model Type | High Flow Air Jet (45001), High Force Air Jet (45002), Brass High Force Air Jet (45002B), 316L Stainless High Force Air Jet (45002S), High Force Fat Air Jet Amplifier (45004) |
Air Jets Nex Flow
Superior designed Air Jets reduce compressed air consumption and noise levels while maintaining laminar flow for strong blowoff.
Air Jets entrain large volumes of surrounding air through the Jet (similar to Air Amplifiers). And are more efficient than Air Nozzles. They are covering a larger blowoff target than a Nozzle is ideal, especially for part ejection.
All Nex Flow Air Jets meet OSHA standard CFR 1910.242(b) for dead-end pressure.
Noise levels are dramatically reduced with Air Jets and lower energy use.
The Nex Flow High Force Air Jet is also a High-Velocity Air Jet.
All the Nex Flow air jets are adjustable. The flow and force can be set and locked with an Adjustable Air Jet.
They are allowing a lock ring for your particular application.

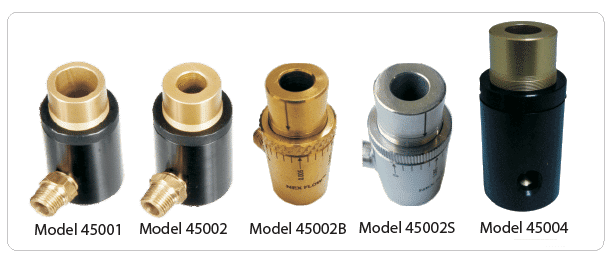

From Left to right: High Flow Air Jet (Model 45001) High Force Air Jet (Model 45002)
- Nex Flow® has two basic designs: Model 45001/45002 – High Flow Air Jet and High Force Air Jet are physically the same size. The only difference is a larger exit opening for the amplified air flow in the High Flow version. The high flow system is used more for cooling and light blowoff, while the high force version is primarily used for heavier blowoff applications. The material is anodized aluminum.
- The High Force Air Jet is the most popular to provide a concentrated high force and is the most popular style used for part ejection. The High-Velocity Air Jet has a broader air exit and is primarily used for cooling, although it also has a high blowoff force, but less than that of the High Force one.
With each Adjustable Air Jet, setting the flow and force can be “locked” with the lock ring for your particular application.
Air Jets Nex Flow
Model 45002B – High Force Air Jet in brass. We are setting the gap and locking it into place. Marking the gap setting value on the air jet body for accurate setting. Ideal for heavy blowoff applicationsAir Jets Nex Flow
Model 45002S – High Force Air Jet in 316L Stainless Steel. The gap can be set and locked into place. The gap setting value is marked on the air jet body for accurate setting. Ideal for high temperatures and food service heavy blowoff applications.
Model 45004 – Flat Air Jet Air Amplifier is the giant flat jet/most miniature air amplifier with the same design as the high-performance air jets to give you the most optimal performance with an adjustable gap and lock ring to set the gap in place.
SKU | Model Type | ||
---|---|---|---|
45001 | High Flow Air Jet (45001) | ||
45002 | High Force Air Jet (45002) | ||
45002B | Brass High Force Air Jet (45002B) | ||
45002S | 316L Stainless High Force Air Jet (45002S) | ||
45004 | High Force Fat Air Jet Amplifier (45004) |
